Method and device for machining elongate workpieces that are not rotationally symmetrical in the form of turbine blades
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 22, 2016
Grant Date -
Oct 17, 2013
app pub date -
Sep 20, 2011
filing date -
Sep 24, 2010
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

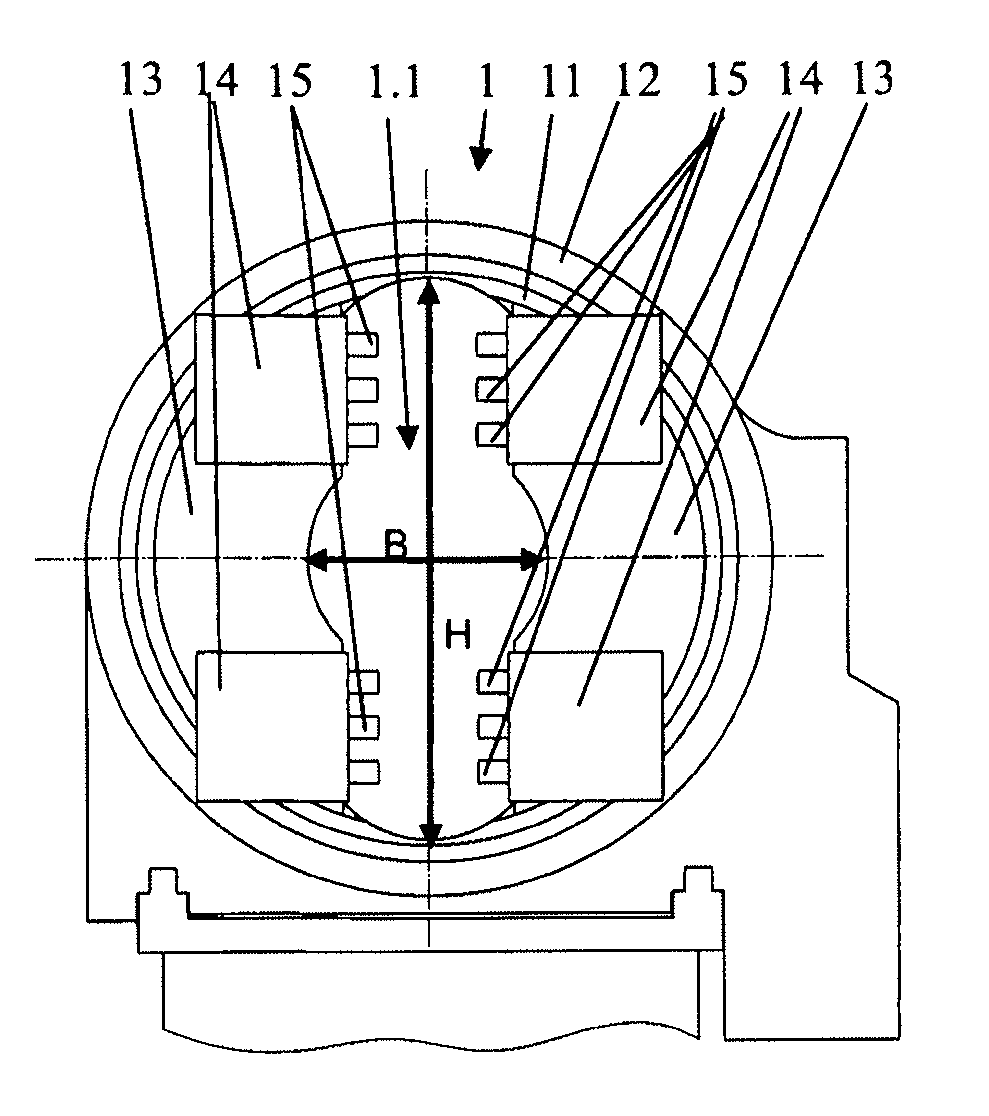

In a method and a device for machining an elongate workpiece that is not rotationally symmetrical in the form of turbine blades, the workpiece is supported by a steady rest that has clamping elements for clamping the workpiece on the cross-section thereof that is not rotationally symmetrical. After clamping the workpiece, the steady rest moves with its open clamping elements along the longitudinal axis of the workpiece into a supporting position. During movement of the steady rest into the supporting position and/or while the supporting position of the steady rest is being changed, a collision between the open clamping elements of the steady rest and the workpiece is prevented by a program-controlled rotation of a rotary part of the steady rest.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2011 Application Filing Year
- B23Q Class
- 534 Applications Filed
- 360 Patents Issued To-Date
- 67.42 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- B23Q Class
- 20.59 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | May 22, 2028 |
