Drive shaft balancing machine having two pedestals and first and second vibration sensors and balancing method
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 15, 2016
Grant Date -
Aug 14, 2014
app pub date -
Feb 7, 2014
filing date -
Feb 12, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

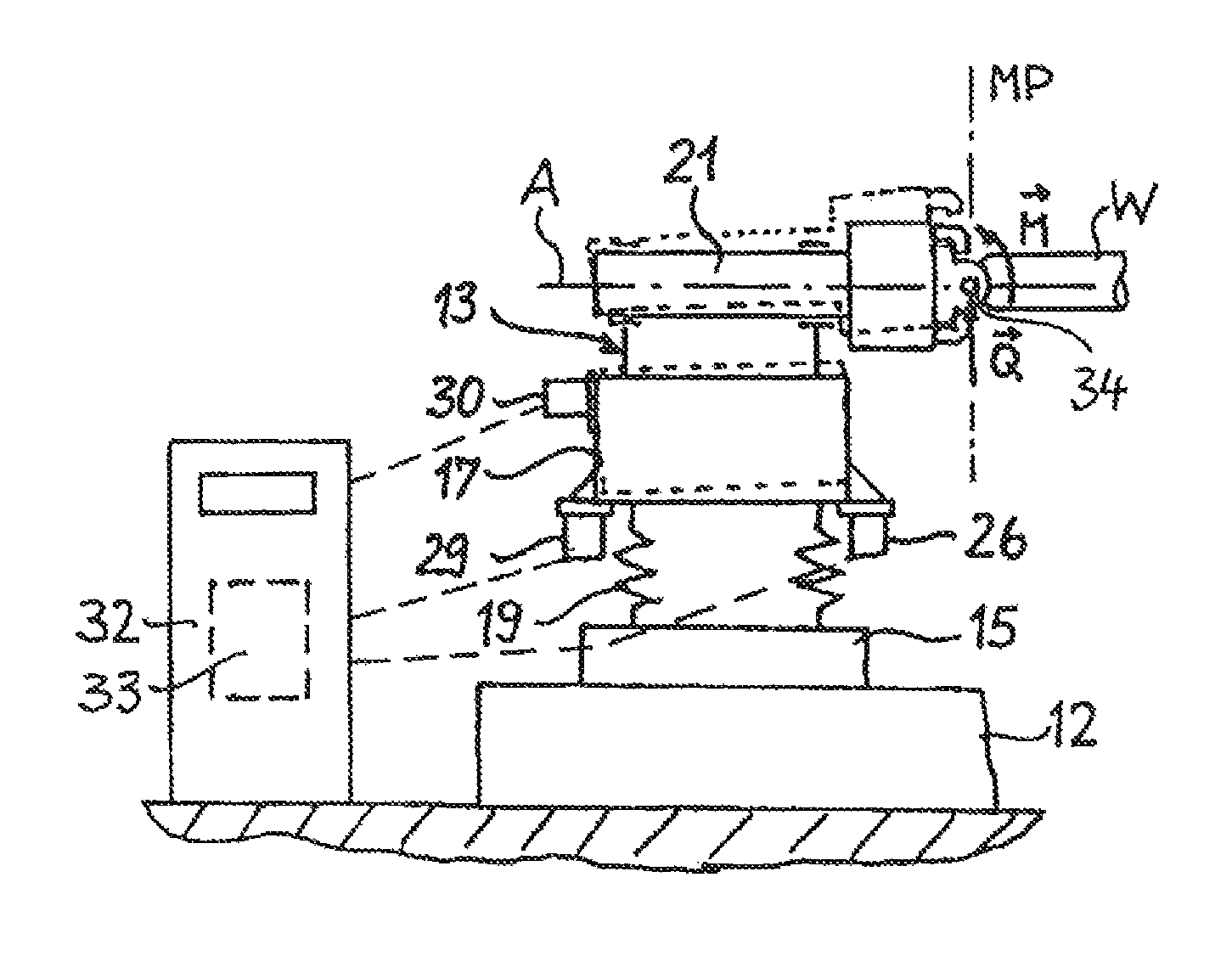

A drive shaft balancing machine for dynamic balancing of drive shafts includes two pedestals. Each pedestal includes a spring-mounted upper part receiving a rotary spindle, a support receiving an end of a drive shaft to be balanced and a first vibration sensor detecting upper part vibrations resulting from an unbalance of the drive shaft and further involved forces in at least a first degree of freedom of motion normal to the spindle axis. On the upper part of at least one pedestal a second vibration sensor is mounted which detects the vibrations of the upper part in at least a second degree of freedom of motion. An evaluating circuit analyzes and links the vibration signals of the first and the second vibration sensors so that pitch vibration excitations of the upper part not caused by the unbalance of the drive shaft do not enter the drive shaft unbalance value computed.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- G01M Class
- 1317 Applications Filed
- 1056 Patents Issued To-Date
- 80.19 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- G01M Class
- 0 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | May 15, 2028 |
