Laser light reflective target
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 15, 2016
Grant Date -
Apr 28, 2016
app pub date -
Oct 28, 2014
filing date -
Oct 28, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance

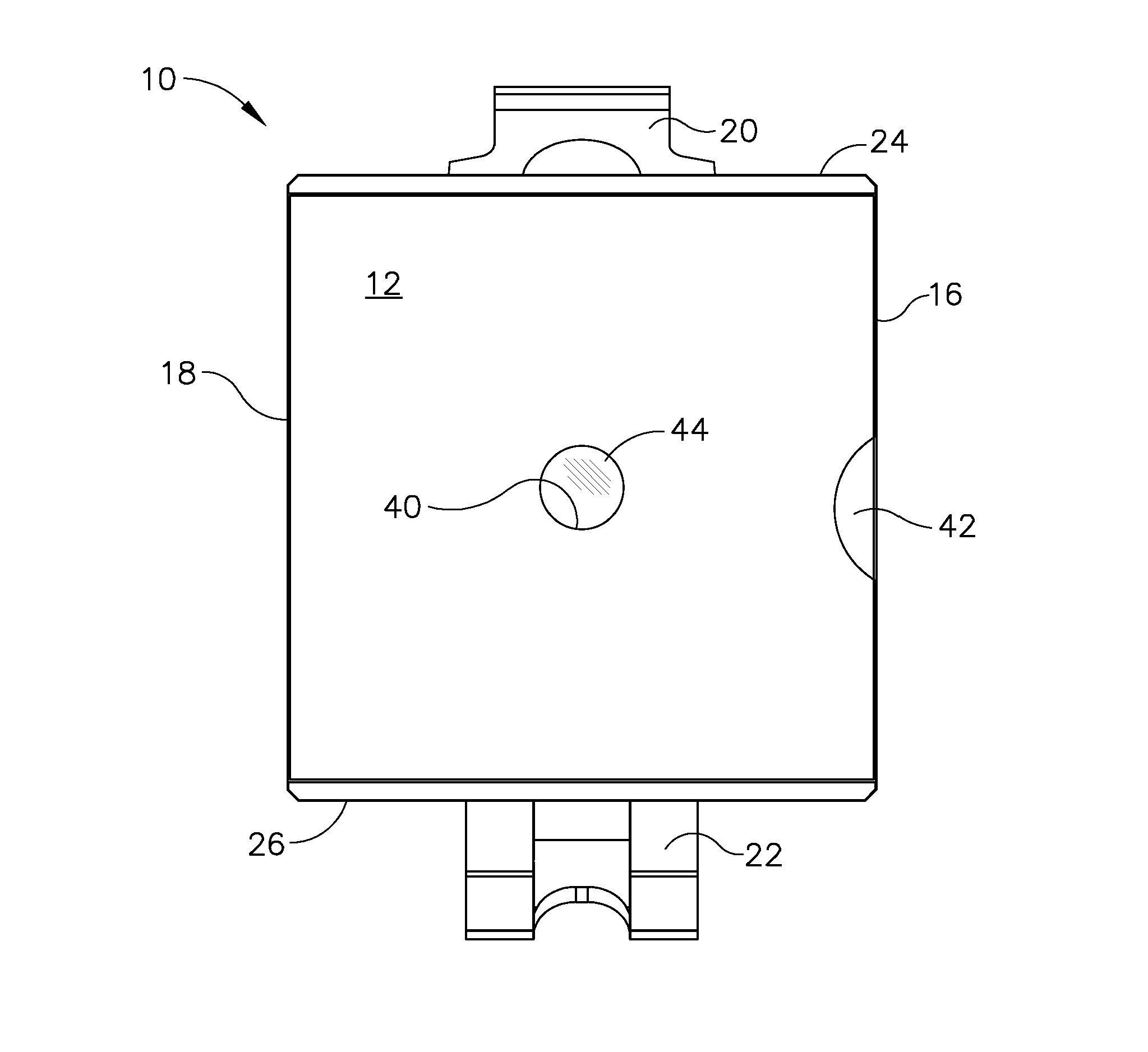

Abstract
A laser light reflective target that effectively brightens a laser light line being produced by a laser fan beam emitter. The target is placed on a jobsite floor and when two laser fan beams strike the reflective surface of the target, the laser beams appear much brighter than otherwise. The laser fan beams, when properly aimed at a point of interest, will intersect and produce an “X” shaped pattern of light on the target. The target can be used with a laser plumb beam pointer, which will aim its vertical beam downward directly at the specific point of interest if the target has been properly positioned. The laser plumb line pointer can additionally aim a second vertical beam upward, to produce a plumb line target point on the ceiling of an interior room that is being laid out.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- G09F Class
- 654 Applications Filed
- 573 Patents Issued To-Date
- 87.62 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 3 Citation Count
- G09F Class
- 17.61 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | May 15, 2028 |
