Pulley structure and damper pulley
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 15, 2016
Grant Date -
Jul 2, 2015
app pub date -
Jul 22, 2014
filing date -
Dec 26, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

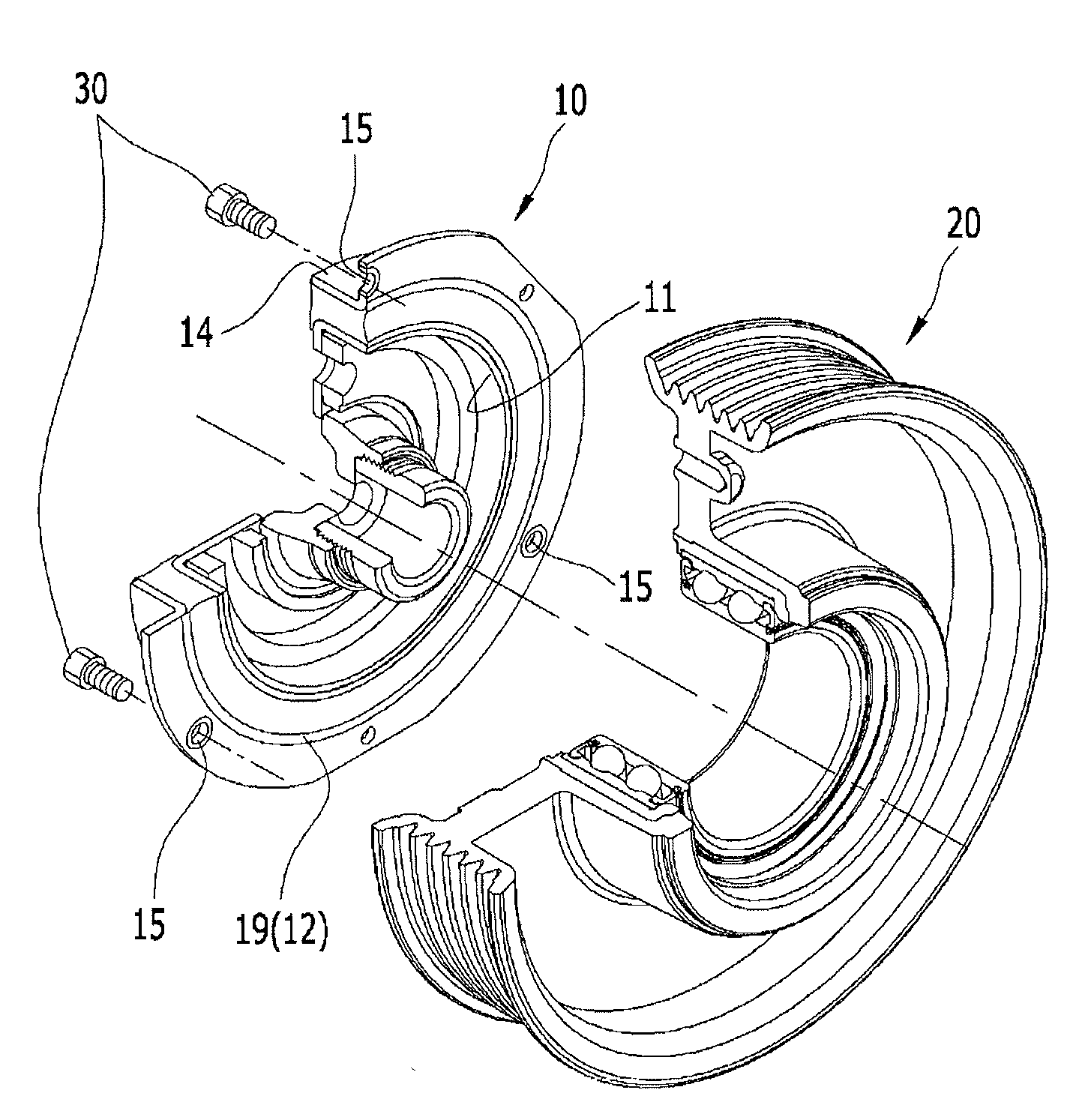

Disclosed are a pulley structure and a damper pulley that prevent corrosion. The pulley structure may include a hub part that is fitted on a crankshaft rotated by power from an engine and rotates with the crankshaft and a pulley part coupled with the hub part to rotate with the hub part and connected with a power transmission member. The hub part may include a pulley contact surface facing the pulley part, and pulley coupling portions formed at the pulley contact surface to secure coupling members. The pulley part may include a hub contact surface facing the pulley contact surface of the hub part, hub coupling portions coupled to the pulley coupling portions by securing the coupling members, and coupling grooves recessed from the hub coupling portions to insert the coupling members. Washers made of an insulator may be fitted on the coupling members between the pulley coupling portions and the hub coupling portions.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- F16H Class
- 2444 Applications Filed
- 2097 Patents Issued To-Date
- 85.81 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- F16H Class
- 0 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | May 15, 2028 |
