Device for treating a fiber web
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 15, 2016
Grant Date -
Dec 4, 2014
app pub date -
May 27, 2014
filing date -
May 28, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Loading Importance Indicators...
Abstract

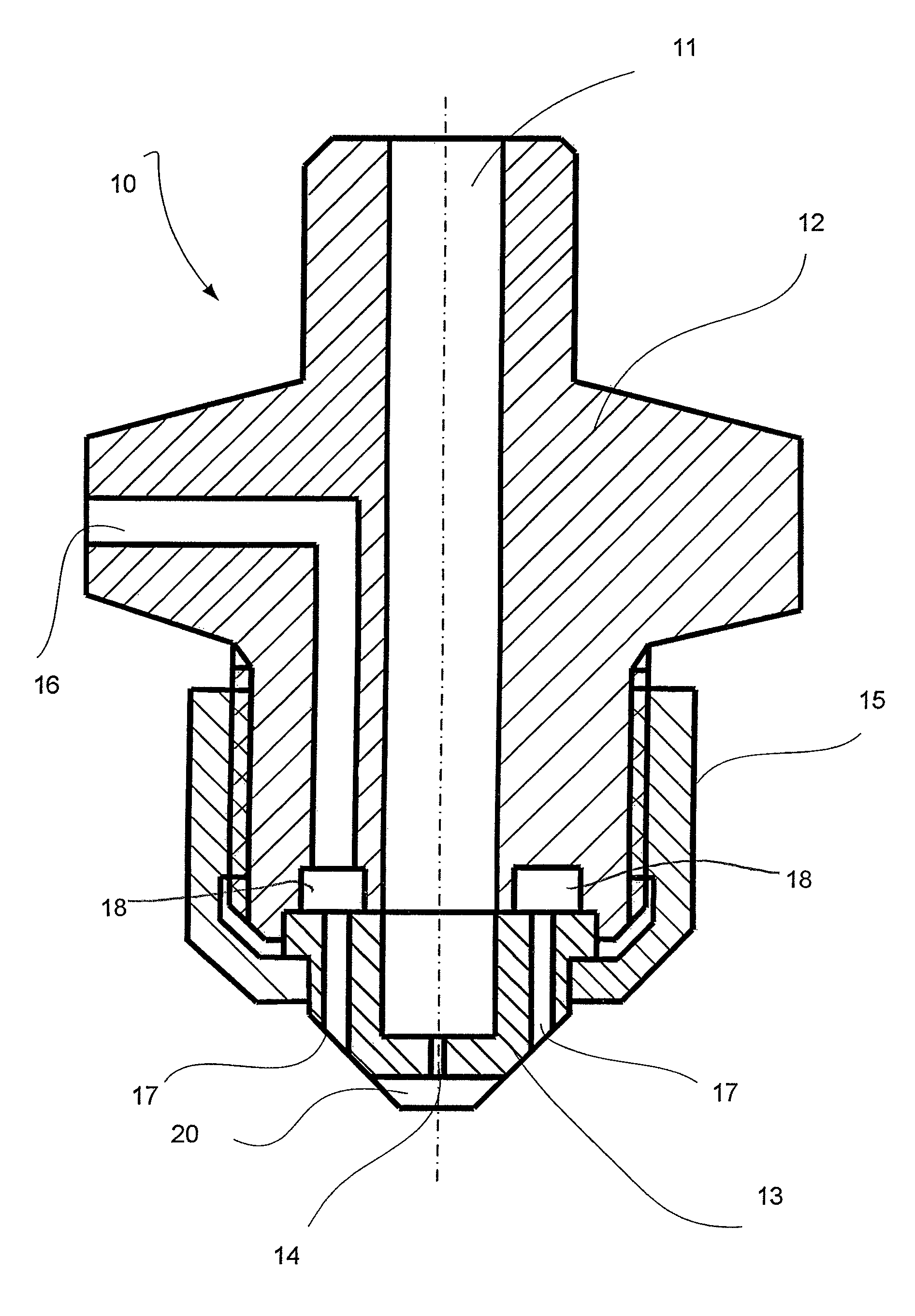

A device for treating a fiber web, especially a device for applying treatment substance for treating a moving fiber web, has at least one nozzle (10) comprising a channel (11) for the treatment substance, a frame part (12), a tip or end (13) of the nozzle (10) and a treatment substance opening (14) providing a treatment substance spray, which nozzle (10) has a tip groove area (20) adjacent to the treatment substance opening (14). The nozzle (10) has at least one opening next to or at the tip groove area (20) for providing a cleaning fluid flow comprising gas and/or liquid to the tip groove area.
First Claim
Other Claims data not available
Family
Loading Family data...
International Classification(s)
- 2014 Application Filing Year
- B05B Class
- 1151 Applications Filed
- 958 Patents Issued To-Date
- 83.24 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B05B Class
- 0 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | May 15, 2028 |
