Compensator module for a transceiver unit, radio system and method of operating thereof
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 8, 2016
Grant Date -
Feb 11, 2016
app pub date -
Aug 4, 2015
filing date -
Aug 6, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

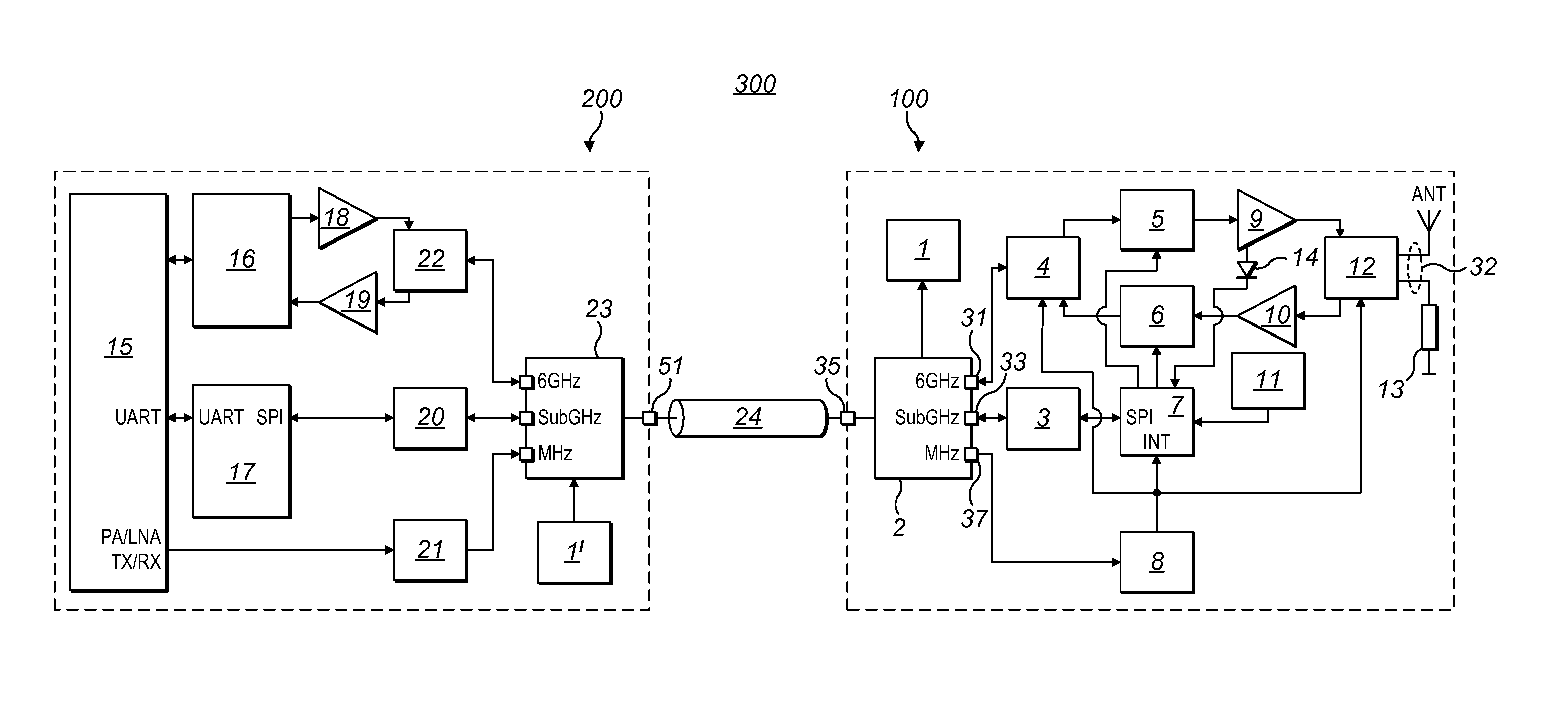

A compensator module (100), which can be connected to a transceiver unit (200) by an antenna cable (24), comprising a signal input (31) configured for supplying a provided transmitter power (SL) in a first frequency band (FB1), which is provided by the transceiver unit (200) to the compensator module (100) as a transmitter input power (ESL), a transmitter amplifier (9) for amplifying the supplied transmitter input power (ESL) to an transmitter output power (ASL), a signal output (32) for delivering the transmitter output power (ASL) in the first frequency band (FB1) to an antenna (ANT) or an equivalent load (13), wherein the compensator module (100) is configured generate a parameter (K) which represents the output transmitter power (ASL), and wherein the compensator module (100) comprises a data interface (33) configured to transmit the parameter (K) to the transceiver unit (200) over the antenna cable (24).
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 7 Citation Count
- H04B Class
- 10.71 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | May 8, 2028 |
