Method and apparatus for synthesis of wideband low phase noise radio frequency signals
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 8, 2016
Grant Date -
Jul 28, 2016
app pub date -
Jan 6, 2014
filing date -
Jan 9, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

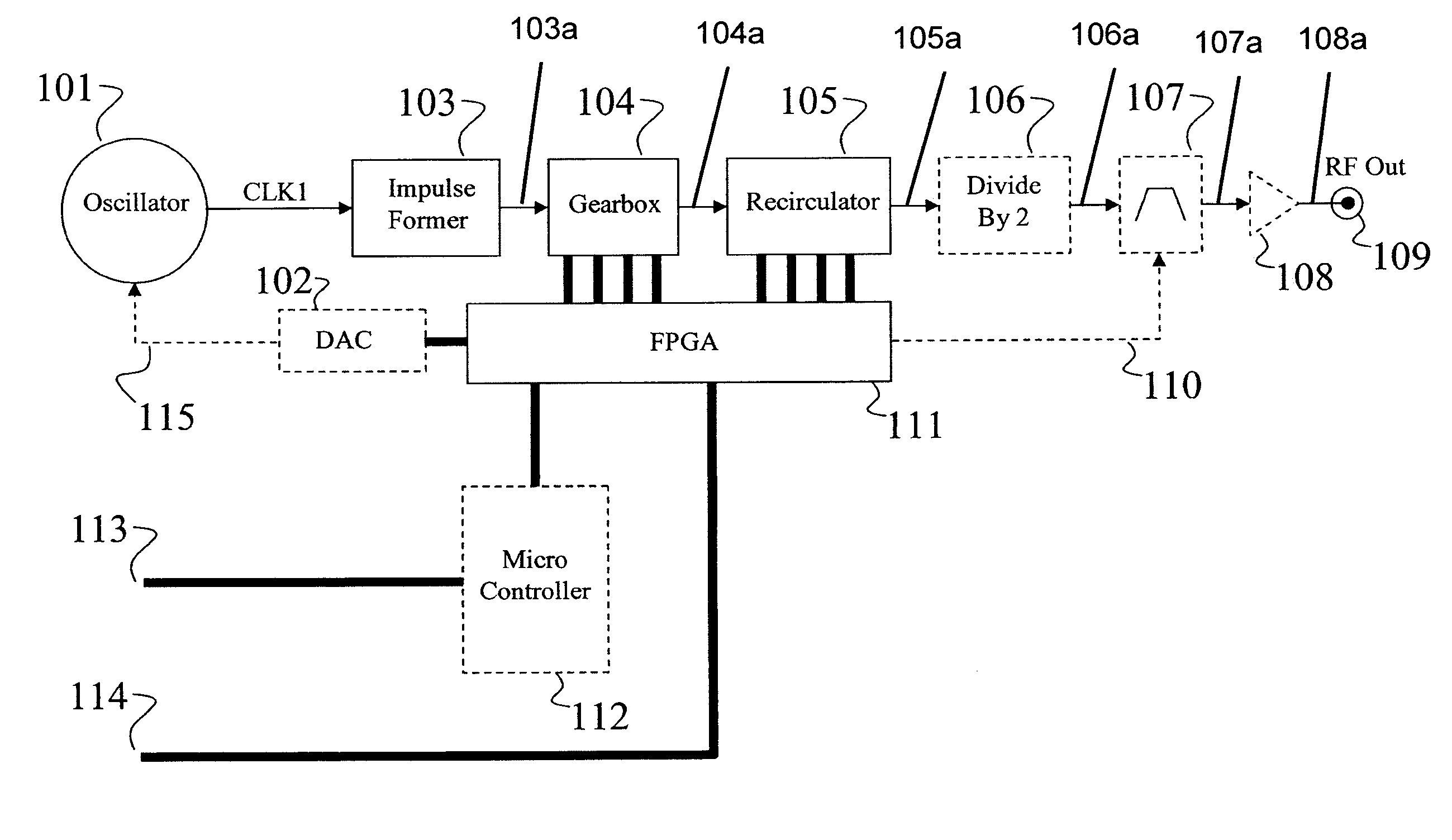

An apparatus for synthesizing wideband radio frequency signals in the microwave region has mostly digital components. The apparatus processes and converts a signal from a stable single-frequency electrical oscillator into a lower or higher frequency electrical signal without using analog multiplier or mixer circuits. An apparatus for synthesizing a fixed phase-stable RF reference signal for use in a radar transceiver includes a phase-stable electrical oscillator which produces a single frequency sinusoidal reference signal. The apparatus converts the reference signal to an arbitrary higher or lower fixed frequency using digital logic and signal delays. The apparatus comprises low-jitter comparator, an impulse former, a gearbox retiming circuit and a recirculator circuit. An apparatus for providing wideband FM modulation of an RF signal includes circuitry for synthesizing a radio frequency signal having arbitrary tuning of center frequency and dynamic command of wideband FM and retaining low phase noise performance of the synthesized signal.
