Arrow construction system having tip canister electronics
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 1, 2016
Grant Date -
Oct 16, 2014
app pub date -
Jun 27, 2014
filing date -
Oct 8, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

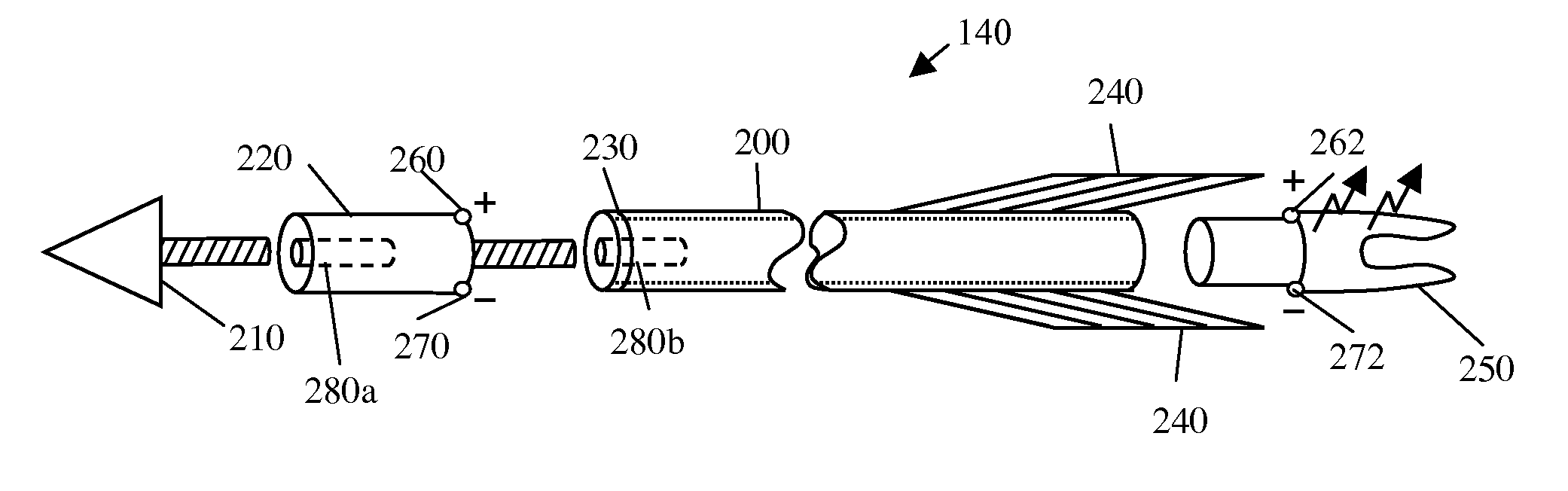

An arrow construction system comprising a tip canister configured to receive an arrow tip and to attach to an arrow shaft. The tip canister contains a power source and sensitive electronics. The power circuit may be a battery, a primary storage capacitor, a coil and a rectifier, and/or a solar cell. The tip canister may be electrically connected to the nock via the shaft electrical conduction system. The electrical conductors may be integrated into the shaft. The wires may form a cable with standard connectors. The nock may contain a light. Alternatively, the fletching may comprise light emitting film or fibers. The circuits may include a flash circuit, an audio circuit, a radio beacon, a wireless transmitter, environmental sensors, a camera, a switch, and/or a GPS device. The switch may be activated by a current detected in a coil or by an accelerometer.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- A63B Class
- 2009 Applications Filed
- 1762 Patents Issued To-Date
- 87.71 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- A63B Class
- 13.60 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | May 1, 2028 |
