Movement device, particularly for cutting torches of the plasma type and the like
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 1, 2016
Grant Date -
Jul 3, 2014
app pub date -
Sep 11, 2012
filing date -
Sep 19, 2011
priority date (Note) -
In Force
status (Latency Note)
![]() |
A preliminary load of PAIR data current through [] has been loaded. Any more recent PAIR data will be loaded within twenty-four hours. |
PAIR data current through []
A preliminary load of cached data will be loaded soon.
Any more recent PAIR data will be loaded within twenty-four hours.
![]() |
Next PAIR Update Scheduled on [ ] |

Importance

US Family Size
|
Non-US Coverage
|
Patent Longevity
|
Forward Citations
|
Abstract

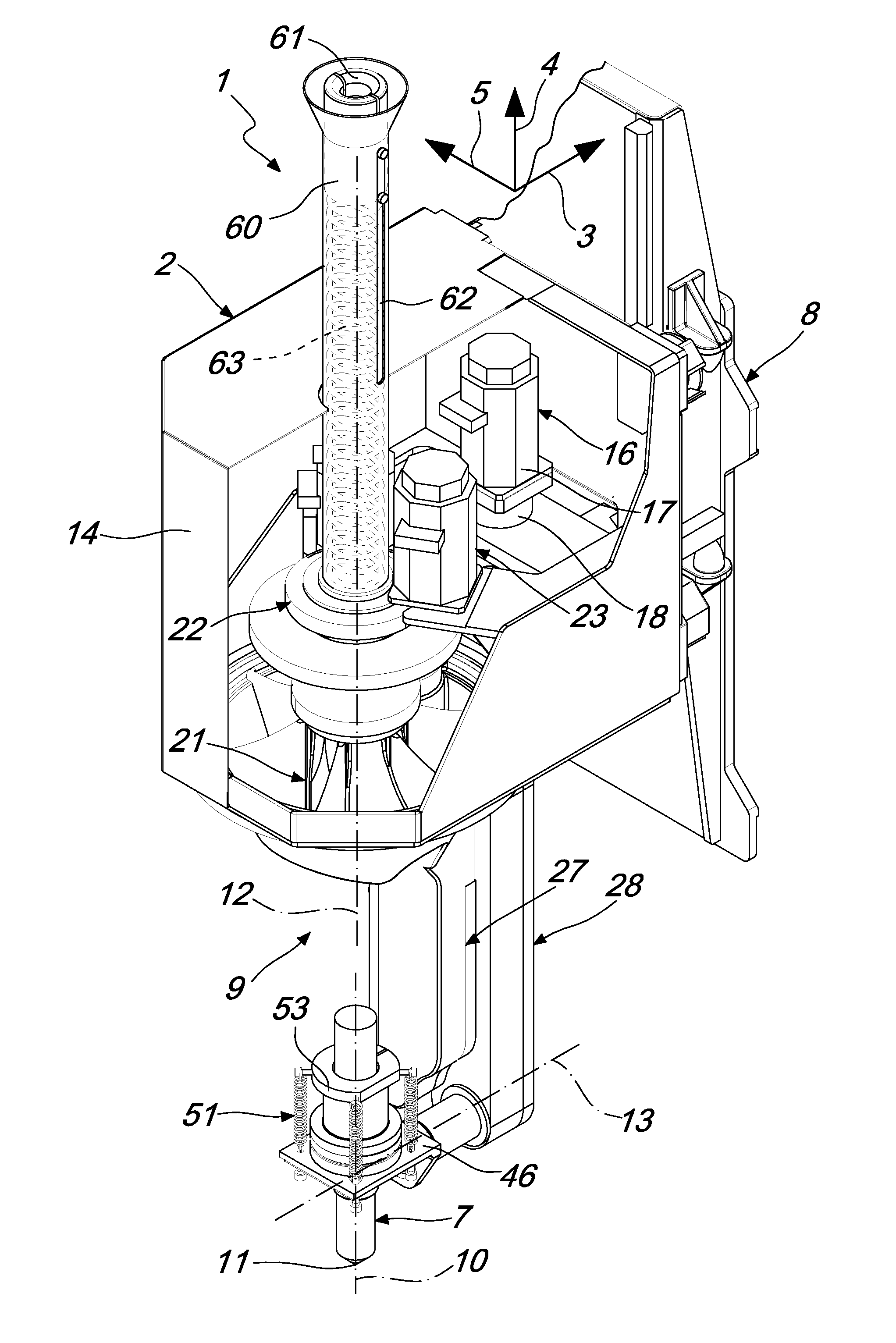

A movement device, particularly for cutting torches of the plasma type, comprising a working head that can move along three Cartesian axes which are mutually perpendicular and supports a cutting torch for cutting mechanical pieces and the like, elements being comprised for the combined rotary and translational motion of the cutting torch with respect to the working head in order to vary the inclination of the cutting flow with respect to the mechanical piece or the like being worked on; the center of instantaneous rotation of the cutting torch, with respect to which the elements for combined rotary and translational motion operate, substantially coinciding with the focal point of the cutting torch.
First Claim
all claims..Other Claims data not available
Family

- 15 United States
- 10 France
- 8 Japan
- 7 China
- 5 Korea
- 2 Other
Patent Owner(s)
Patent Owner | Address | |
---|---|---|
GUDEL A G | INDUSTRIE NORD 4900 LANGENTHAL | |
FICEP S P A | 21045 GAZZADA SCHIANNO |
International Classification(s)

- 2012 Application Filing Year
- B23K Class
- 1509 Applications Filed
- 1202 Patents Issued To-Date
- 79.66 % Issued To-Date
Inventor(s)
Inventor Name | Address | # of filed Patents | Total Citations |
---|---|---|---|
Colombo, Christian | Milan, IT | 5 | 12 |
# of filed Patents : 5 Total Citations : 12 | |||
Fongaro, Stefano | Castronno, IT | 3 | 5 |
# of filed Patents : 3 Total Citations : 5 | |||
Zulauf, Walter | Ursenbach, CH | 13 | 80 |
# of filed Patents : 13 Total Citations : 80 |
Cited Art Landscape
- No Cited Art to Display

Patent Citation Ranking
- 0 Citation Count
- B23K Class
- 0 % this patent is cited more than
- 9 Age
Forward Cite Landscape
- No Forward Cites to Display

Maintenance Fees
Fee | Large entity fee | small entity fee | micro entity fee | due date |
---|---|---|---|---|
11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | May 1, 2028 |
Fee | Large entity fee | small entity fee | micro entity fee |
---|---|---|---|
Surcharge - 11.5 year - Late payment within 6 months | $160.00 | $80.00 | $40.00 |
Surcharge after expiration - Late payment is unavoidable | $700.00 | $350.00 | $175.00 |
Surcharge after expiration - Late payment is unintentional | $1,640.00 | $820.00 | $410.00 |
Full Text

Legal Events
Date | Code | Event | Description |
---|---|---|---|
May 14, 2021 | MAFP | MAINTENANCE FEE PAYMENT | free format text: PAYMENT OF MAINTENANCE FEE, 4TH YEAR, LARGE ENTITY (ORIGINAL EVENT CODE: M1551); ENTITY STATUS OF PATENT OWNER: LARGE ENTITY year of fee payment: 4 |
Nov 14, 2017 | I | Issuance | |
Oct 25, 2017 | STCF | INFORMATION ON STATUS: PATENT GRANT | free format text: PATENTED CASE |
Sep 11, 2014 | P | Published | |
Mar 05, 2013 | F | Filing | |
Mar 05, 2013 | PD | Priority Date | |
Mar 04, 2013 | AS | ASSIGNMENT | free format text: ASSIGNMENT OF ASSIGNORS INTEREST;ASSIGNORS:BYNUM, ANTHONY EUGENE;JOHNSON, BRADLEY THOMAS;REEL/FRAME:029922/0725 Owner name: RTC INDUSTRIES, INC., ILLINOIS Effective Date: Mar 04, 2013 |
