Method for preparing granulated inorganic adsorbent for radionuclides
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 1, 2016
Grant Date -
Mar 10, 2016
app pub date -
Oct 30, 2014
filing date -
Sep 5, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

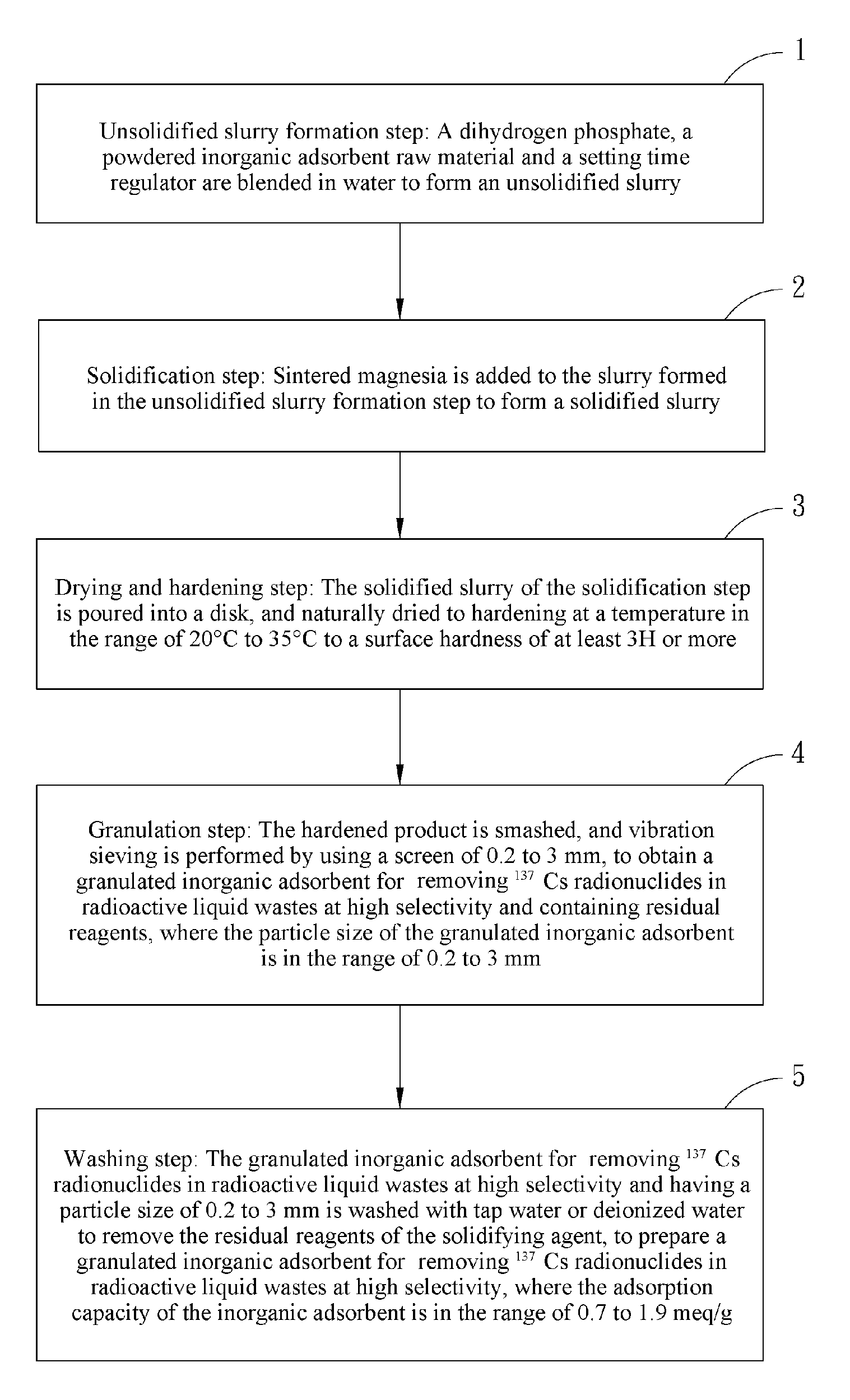

Disclosed is a method for preparing a granulated inorganic adsorbent for radionuclides including slurry forming, solidification, drying and hardening, granulation, and washing steps: blending a dihydrogen phosphate, a powdered inorganic adsorbent raw material and a setting time regulator in water to form a slurry; adding sintered magnesia into the slurry, and blending the mixture to form a solidified slurry; setting the solidified slurry on a disk member, and naturally drying to hardening in a specific temperature range to form a hardened solid material; smashing the hardened solid material and performing vibration sieving by using a screen to obtain a granulated inorganic adsorbent for radionuclides containing residual reagents; washing the granulated inorganic adsorbent for radionuclides containing residual reagents with water, to remove the residual reagents to complete preparation, where the adsorption capacity of the granulated inorganic adsorbent for radionuclides thus prepared is in the range of 0.7 to 1.9 meq/g.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B01J Class
- 0 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | May 1, 2028 |
