Mobile communication system, base station apparatus, user equipment, and method
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 25, 2016
Issued Date -
Mar 27, 2014
app pub date -
Sep 19, 2013
filing date -
Sep 19, 2013
priority date (Note) -
Withdrawn
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

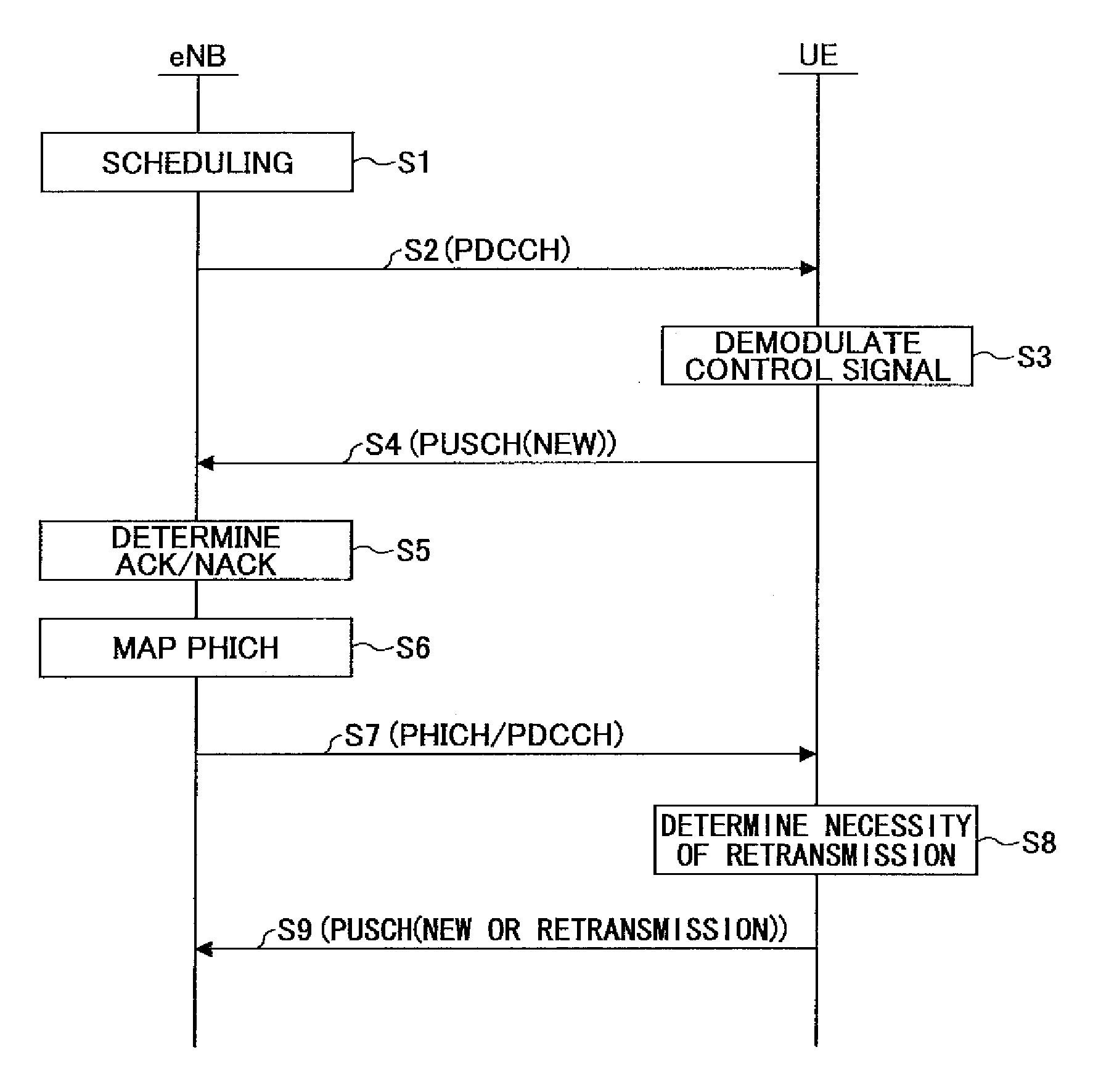

A base station apparatus is used in a mobile communication system in which at least a shared data channel is transmitted by an orthogonal modulation scheme using an I-channel and a Q-channel. The base station apparatus includes a providing unit providing Acknowledgement/Non-Acknowledgement information indicating whether retransmission of a signal received in uplink is required; a mapping unit mapping a number of multiplexed users of the Acknowledgement/Non-Acknowledgement information to the I-channel or the Q-channel based on a predetermined mapping table; and a reporting unit reporting the Acknowledgement/Non-Acknowledgement information to the respective users. The mapping table indicates that, when the number of the multiplexed users is equal to or less than a predetermined number, the Acknowledgement/Non-Acknowledgement information is associated with the I-channel or the Q-channel, and otherwise, the Acknowledgement/Non-Acknowledgement information is associated with the I-channel and the Q-channel.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date | Type | Sub-Type |
|---|
International Classification(s)
- 2013 Application Filing Year
- H04L Class
- 23397 Applications Filed
- 19833 Patents Issued To-Date
- 84.77 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H04L Class
- 0 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Apr 25, 2028 |
