Weatherstrip assembly for sealing between a frame and a closure member and a method for producing the same
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 25, 2016
Grant Date -
Aug 27, 2015
app pub date -
Mar 9, 2015
filing date -
Oct 22, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

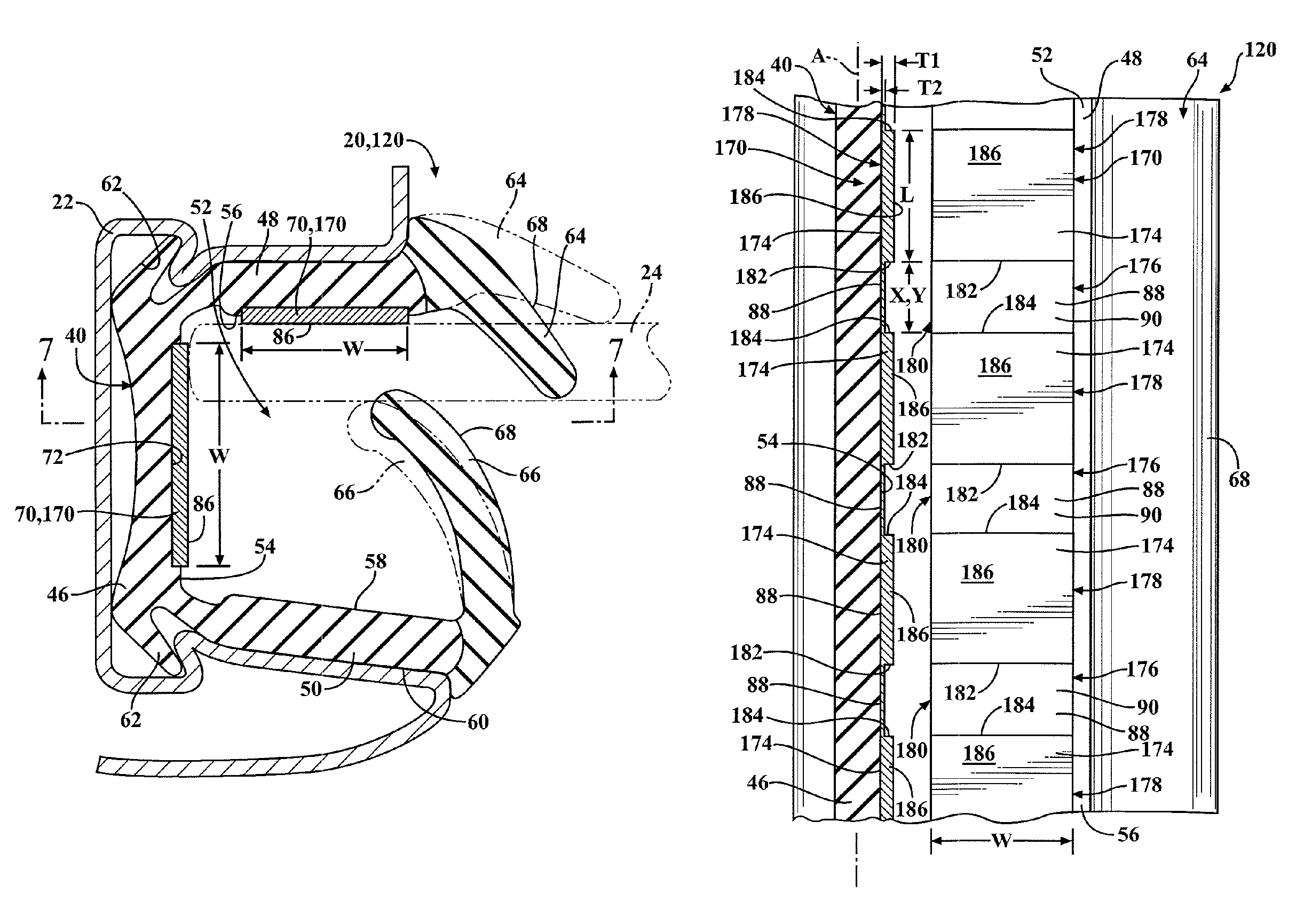

A weatherstrip assembly for a vehicle. The assembly includes a body having a base and first and second legs which define a channel. The body includes an interior base surface, a first interior leg surface, and a second interior leg surface disposed within the channel. The assembly includes at least one sealing lip having an abutment surface and a wearstrip disposed along at least one of the interior base surface, the first and second interior leg surfaces, and the abutment surface and formed of a thermoplastic polyethylene material. The wearstrip has a plurality of alternating wear sections and gaps that define a series of alternating semi-rigid and flexible sections, respectively, with each wear section having first and second surfaces. The first surface of one of the wear sections and the second surface of an adjacent wear section face each other to define the gap.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- B60J Class
- 685 Applications Filed
- 557 Patents Issued To-Date
- 81.32 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 10 Citation Count
- B60J Class
- 9.70 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Apr 25, 2028 |
