Wheel rim having a wheel disk made from fiber composite material and having a fastener
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 25, 2016
Grant Date -
Aug 13, 2015
app pub date -
Dec 3, 2012
filing date -
Sep 27, 2011
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

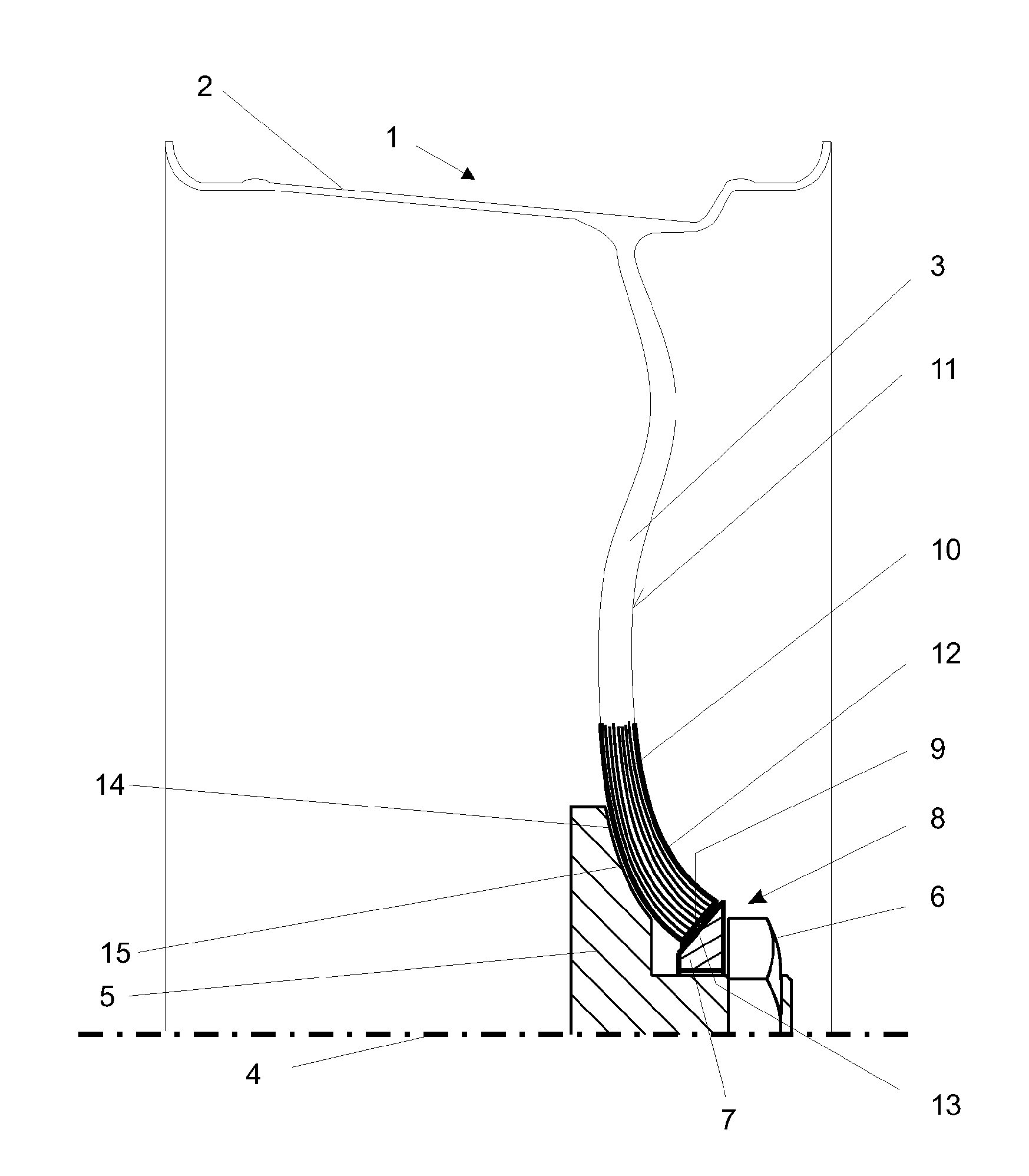

The invention relates to a wheel rim having a wheel disk (3) made of a fiber composite and having fastener for fastening the wheel disk (3) to a wheel hub (5) of a vehicle, wherein the wheel disk (3) has at least one opening (8) for receiving the wheel hub (5) and the opening (8) is designed to have a conical centring surface (9) for the corresponding seat of a fastener. According to the invention the reinforcing fibers of the fiber composite are arranged in planar layers (10) and at least a part of the fiber layers (10) is arranged in an edge region (12) of the opening (8) perpendicular to the centring surface (9) of the wheel disk (3).
First Claim
Other Claims data not available
Family
International Classification(s)
- 2012 Application Filing Year
- B60B Class
- 293 Applications Filed
- 249 Patents Issued To-Date
- 84.99 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 4 Citation Count
- B60B Class
- 14.64 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Apr 25, 2028 |
