Semipermeable filtration membrane with integrated producing circuit
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 25, 2016
Grant Date -
Nov 27, 2014
app pub date -
Aug 3, 2012
filing date -
Aug 12, 2011
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

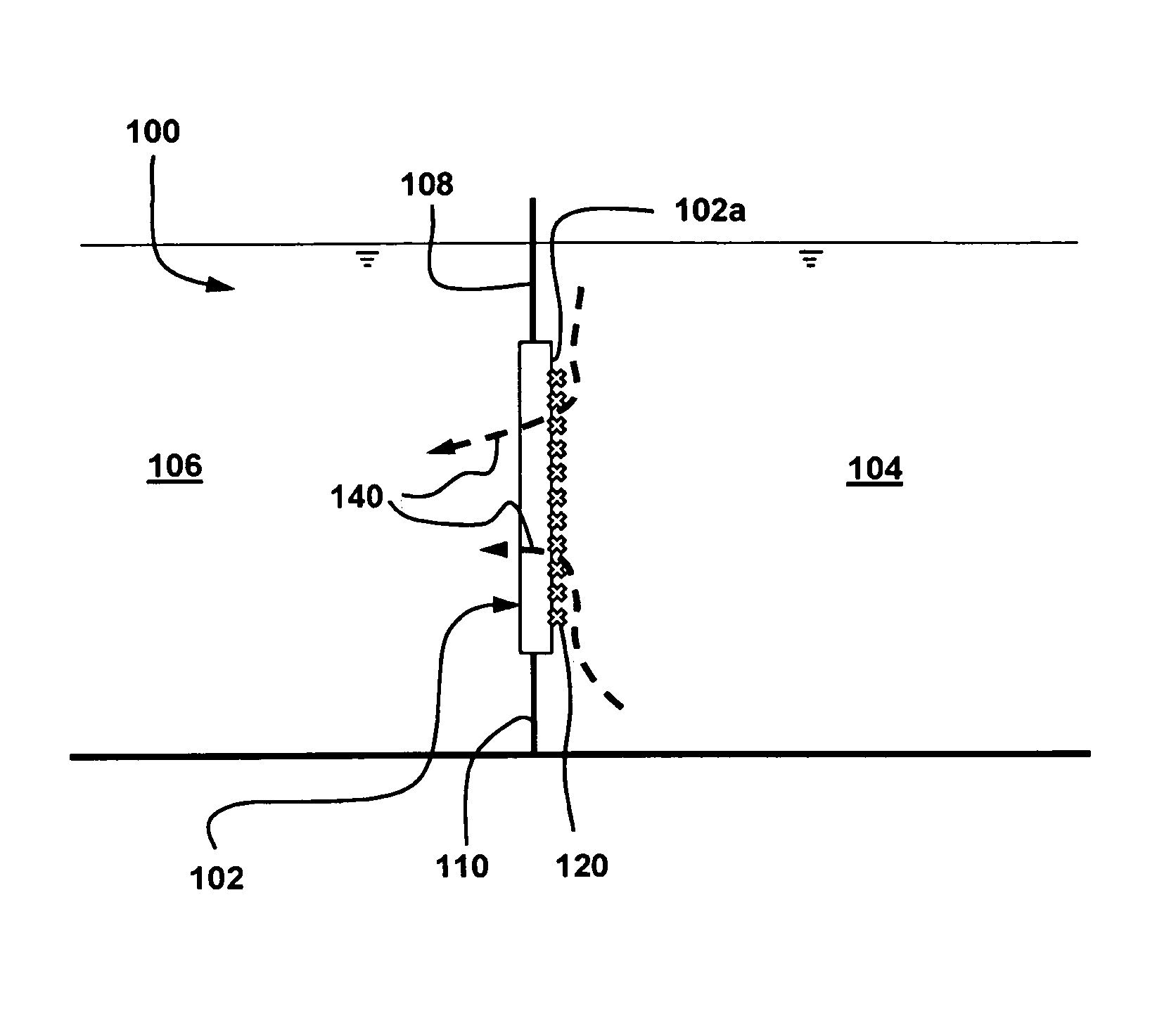

The filtration membrane (102) includes an ozone producing circuit (120) having a plurality of electrically conductive lines (122, 124) disposed directly upon an active surface (102a) of the filtration membrane (102). The electrically conductive lines (122, 124) form spaced-apart and interleaved anodes (122) and cathodes (124). Ozone and other mixed oxidants coming from the ozone producing circuit (120) will prevent and/or remove biofilm formations on the active surface (102a) without the need of an outside source of gas. They can also remove at least some undesirable dissolved gases from the liquid being purified.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2012 Application Filing Year
- B25C Class
- 74 Applications Filed
- 67 Patents Issued To-Date
- 90.55 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 9 Citation Count
- B25C Class
- 10.45 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Apr 25, 2028 |
