Method and device positioning a linear array of electrodes in a patient's respiratory airways
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 25, 2016
Grant Date -
Dec 26, 2013
app pub date -
Jun 18, 2013
filing date -
Sep 28, 2007
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

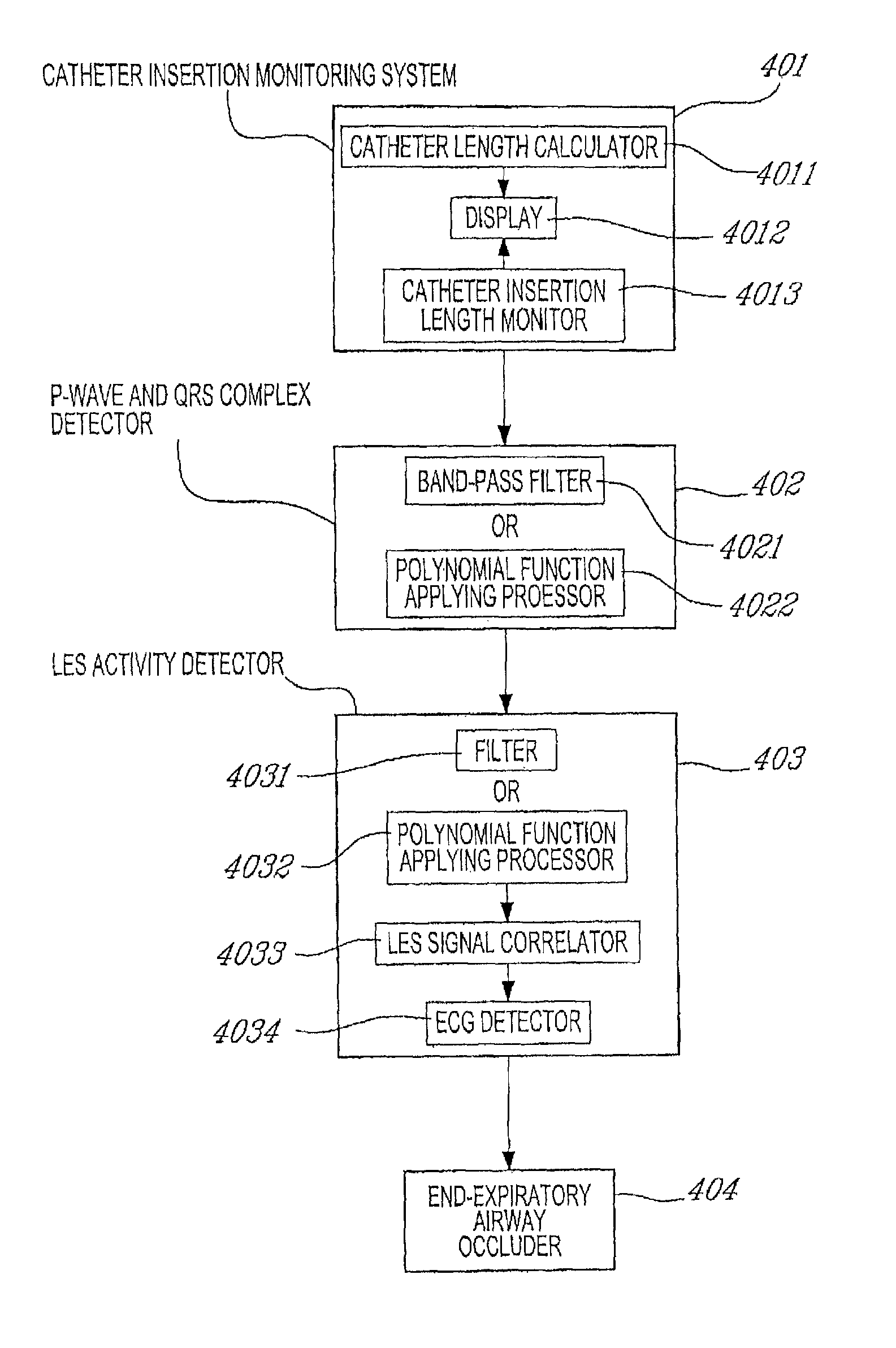

In a method for positioning linear array of electrodes (LAE) mounted on distal end section of elongated flexible member in patient's respiratory airways (PRA) at level of diaphragm, a length of the member pre-determined to position LEA at the level of the diaphragm is inserted through PRA. Signals representative of an electrical activity of the diaphragm (EAdi) are detected through LAE, presence/absence of ECG signal components is detected in EAdi signals, and position of LAE in PRA is detected in response to presence/absence of ECG signal components in EAdi signals. Lower esophageal sphincter activity may be detected in EAdi signals, and position of LAE in PRA determined in response to the detected lower esophageal sphincter. End-expiratory occlusion of PRA may be performed to verify that the electrical activity of the diaphragm coincides with a negative deflection of PRA pressure again in view of determining adequate positioning of LAE.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- A61B Class
- 9.65 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Apr 25, 2028 |
