Exterior structure
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 18, 2016
Issued Date -
N/A
app pub date -
Sep 29, 2015
filing date -
Sep 15, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

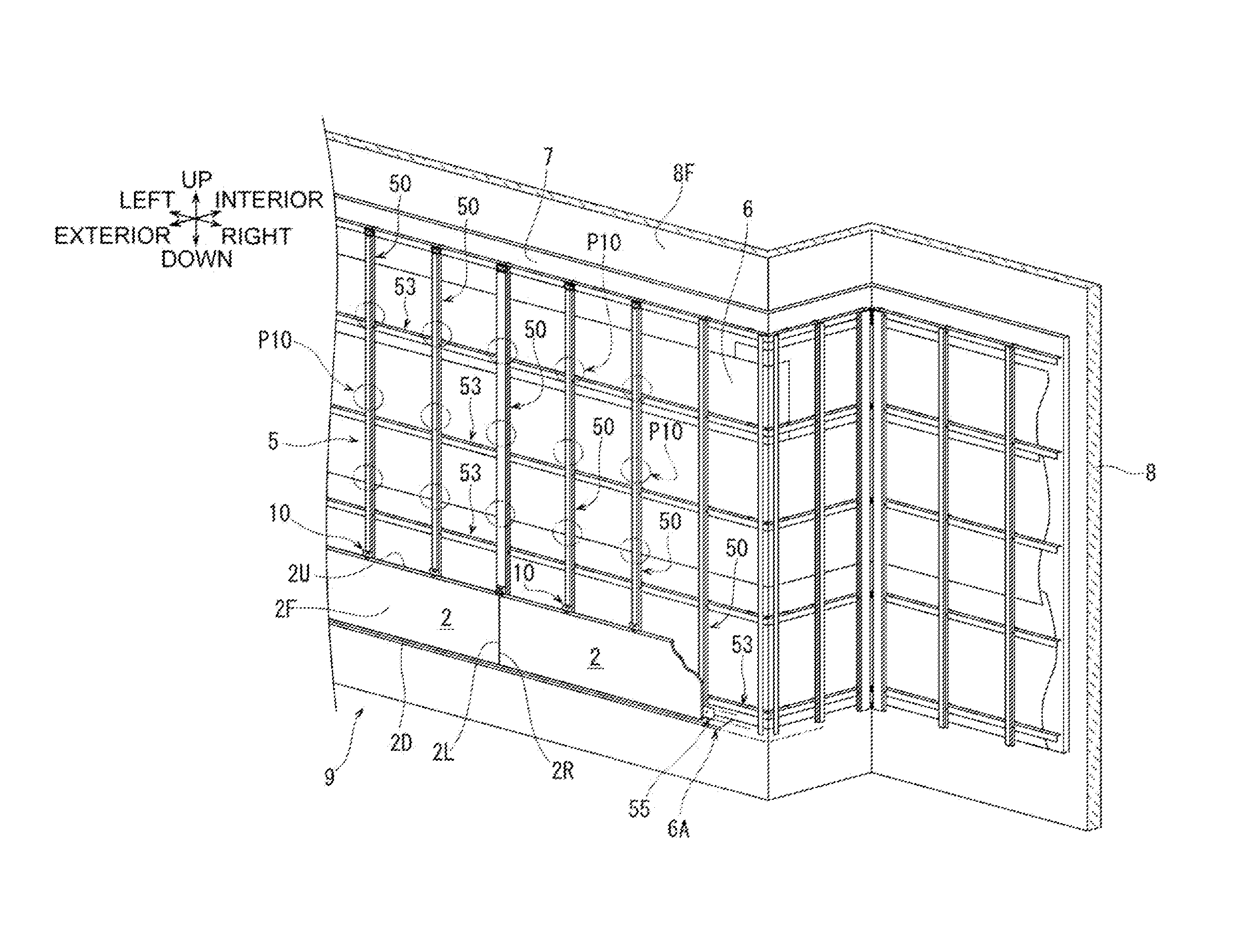

An exterior structure includes a front-side lateral joint portion and a back-side lateral joint portion disposed at horizontal edge portions of each facade board, a front-side vertical joint portion and a back-side vertical joint portion disposed at a lower edge portion and an upper edge portion of each facade board, a lateral joint formed between horizontally adjacent facade boards as a result of superposing the front-side lateral joint portion of one facade board and the back-side lateral joint portion of the other facade board one on the other, and a vertical joint formed between vertically adjacent facade boards as a result of superposing the front-side vertical joint portion of one facade board and the back-side vertical joint portion of the other facade board one on the other. In at least four horizontally and vertically adjacent facade boards, the lateral joints form a joint area substantially linearly continuous in the vertical direction.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- E04B Class
- 1071 Applications Filed
- 860 Patents Issued To-Date
- 80.30 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 6 Citation Count
- E04B Class
- 17.54 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Apr 18, 2028 |
