Labelling machine and method
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 18, 2016
Grant Date -
Nov 28, 2013
app pub date -
May 28, 2013
filing date -
May 28, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

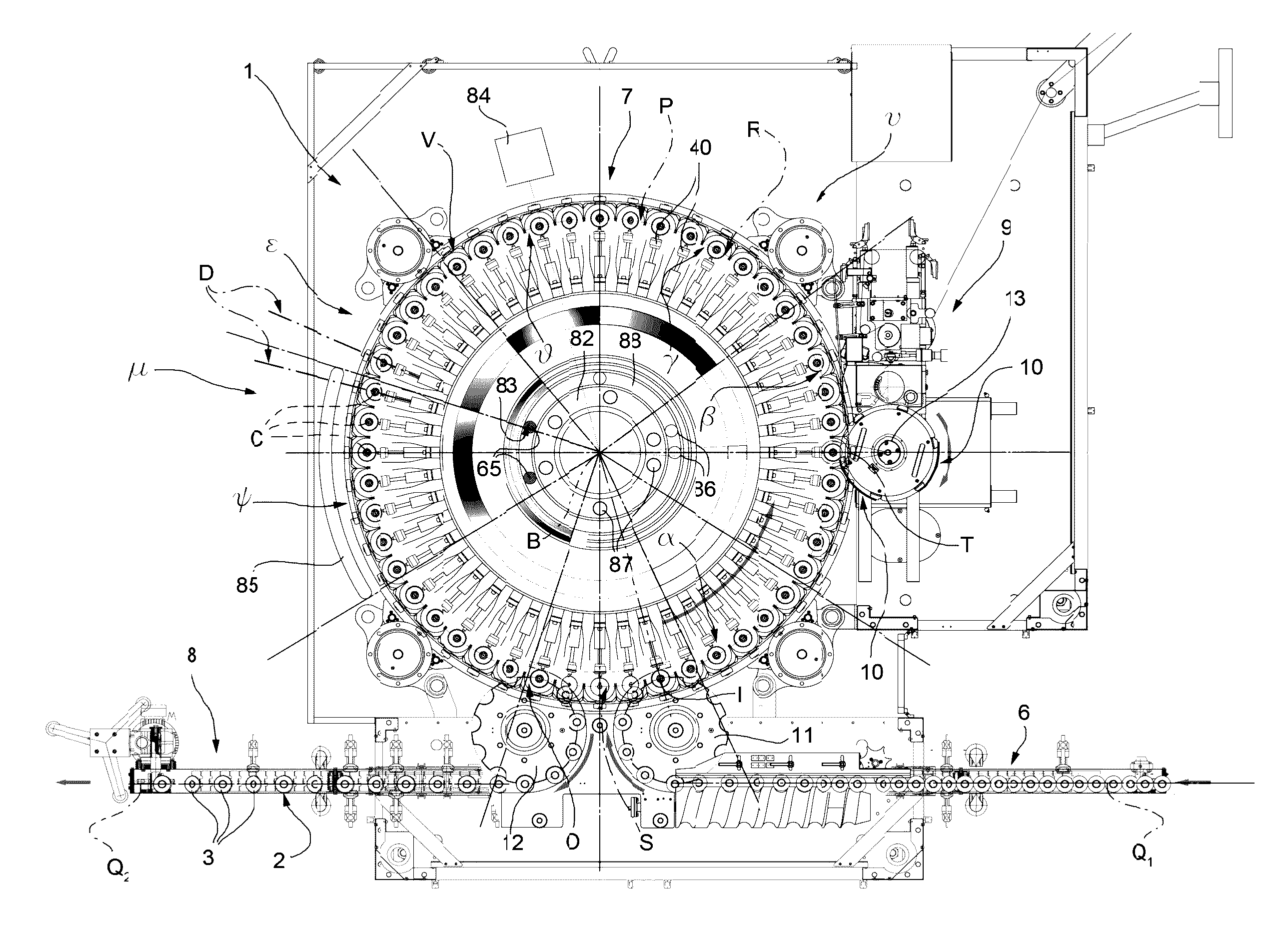

There is disclosed a labelling machine for applying sleeve labels on respective articles, comprising: a conveyor movable along a path comprising, in turn, a first inlet station for the articles still to be labelled and a second outlet station for the labelled articles; the conveyor comprises a handling device adapted to displace at least one first of the sleeve label and the article still to be labelled along a first segment of the path, so as to insert the article still to be labelled within the sleeve label; the conveyor also comprises a positioning device adapted to actively position a second of the sleeve label and the article in a desired position with respect to the first of the article and the sleeve label along a second segment of the path; the first segment is comprised within the second segment.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2013 Application Filing Year
- B65C Class
- 88 Applications Filed
- 79 Patents Issued To-Date
- 89.78 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B65C Class
- 0 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Apr 18, 2028 |
