Electrostatic process to shield spacecraft and occupants from solar wind and cosmic radiation
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 18, 2016
Grant Date -
N/A
app pub date -
Apr 4, 2016
filing date -
Mar 31, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

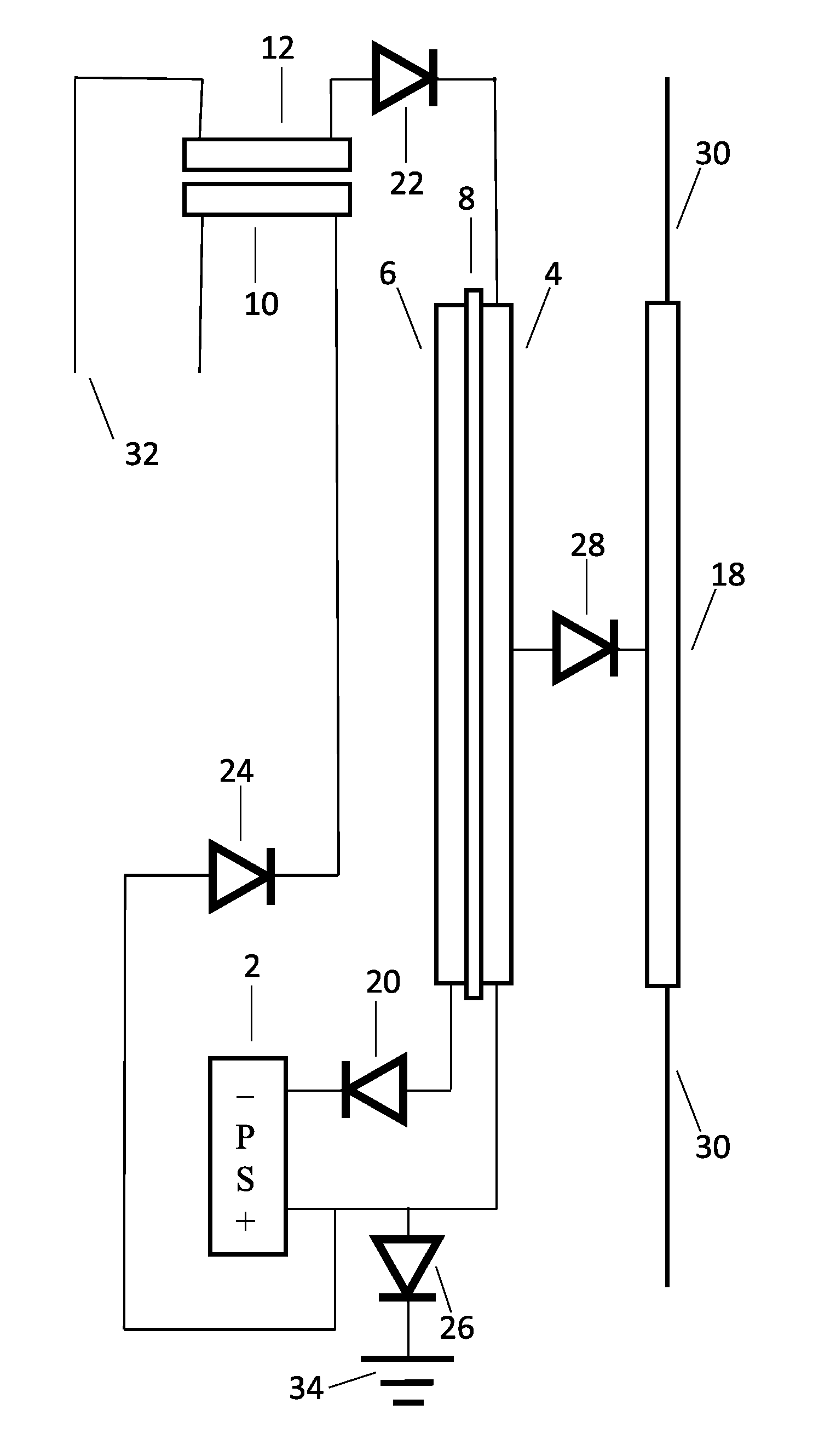

The present application is the first pragmatic process capable of shielding spacecraft and occupants from destructive impact and penetration of the crafts' exterior walls by positively charged particles of cosmic rays and solar wind. The technology also protects the craft from internal cascading secondary radiation caused by energetic particles that strike the surface and those that penetrate to the interior. Particles posing the highest level of danger to spacecraft are low and high energy protons, positive ions and few-particle nuclei. Accordingly, a reliable, enduring and safe shielding mechanism for spacecraft has not been available until the development of the present application. The shielding is accomplished by conveying a positive electric charge to the atoms and molecules of the exterior surface. Incoming particles are diverted and deflected from the surface by an established electric field derived through an advanced electric system that utilizes electrons emitted by solar wind as electric energy.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- G21H Class
- 24 Applications Filed
- 18 Patents Issued To-Date
- 75 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- G21H Class
- 8.33 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Apr 18, 2028 |
