Self-locking actuator for ring binder mechanism
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 18, 2016
Grant Date -
Mar 12, 2015
app pub date -
Nov 12, 2014
filing date -
Apr 28, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

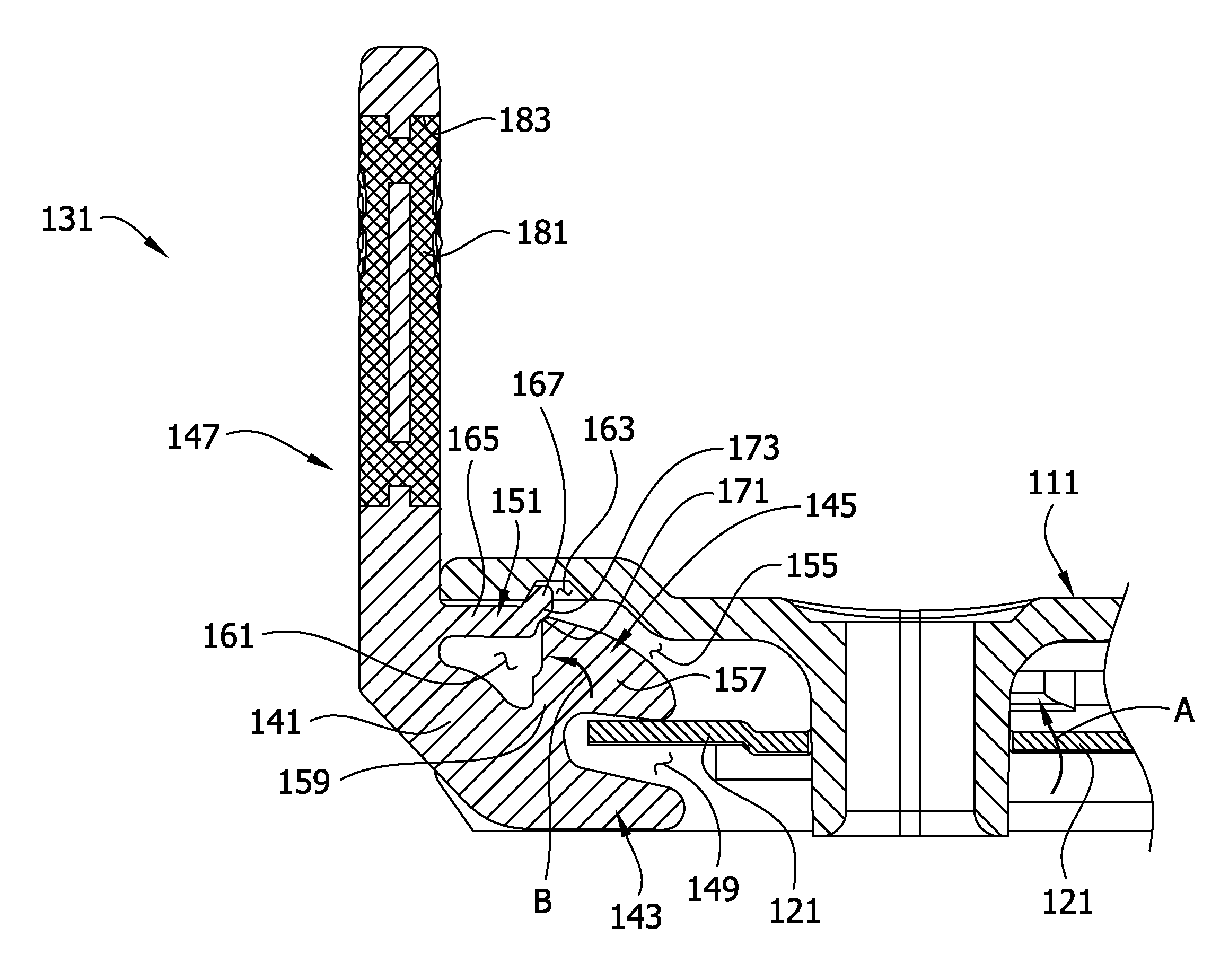

A ring binder mechanism for holding loose-leaf pages has a housing having a cavity formed in the underside of a central portion of the housing. A pair of hinge plates are disposed between the sides for pivoting movement relative to the housing to open and close rings of the mechanism. The mechanism has an actuator moveable relative to the housing for opening and closing the rings. The actuator has a body, an opening arm extending from the body, a closing arm extending from the body, and a locking finger extending from the body. The closing arm extending into a space between the hinge plates and the central portion of the housing. The hinge plates extend between the opening and closing arms. The locking finger extends into the cavity in the central portion of the housing when the actuator is in the closed position.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- B42F Class
- 78 Applications Filed
- 70 Patents Issued To-Date
- 89.75 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B42F Class
- 0 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Apr 18, 2028 |
