Butt flare reducing apparatus for logs and related methods of reducing butt flare
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 18, 2016
Grant Date -
Feb 4, 2016
app pub date -
Jul 23, 2015
filing date -
Jul 29, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

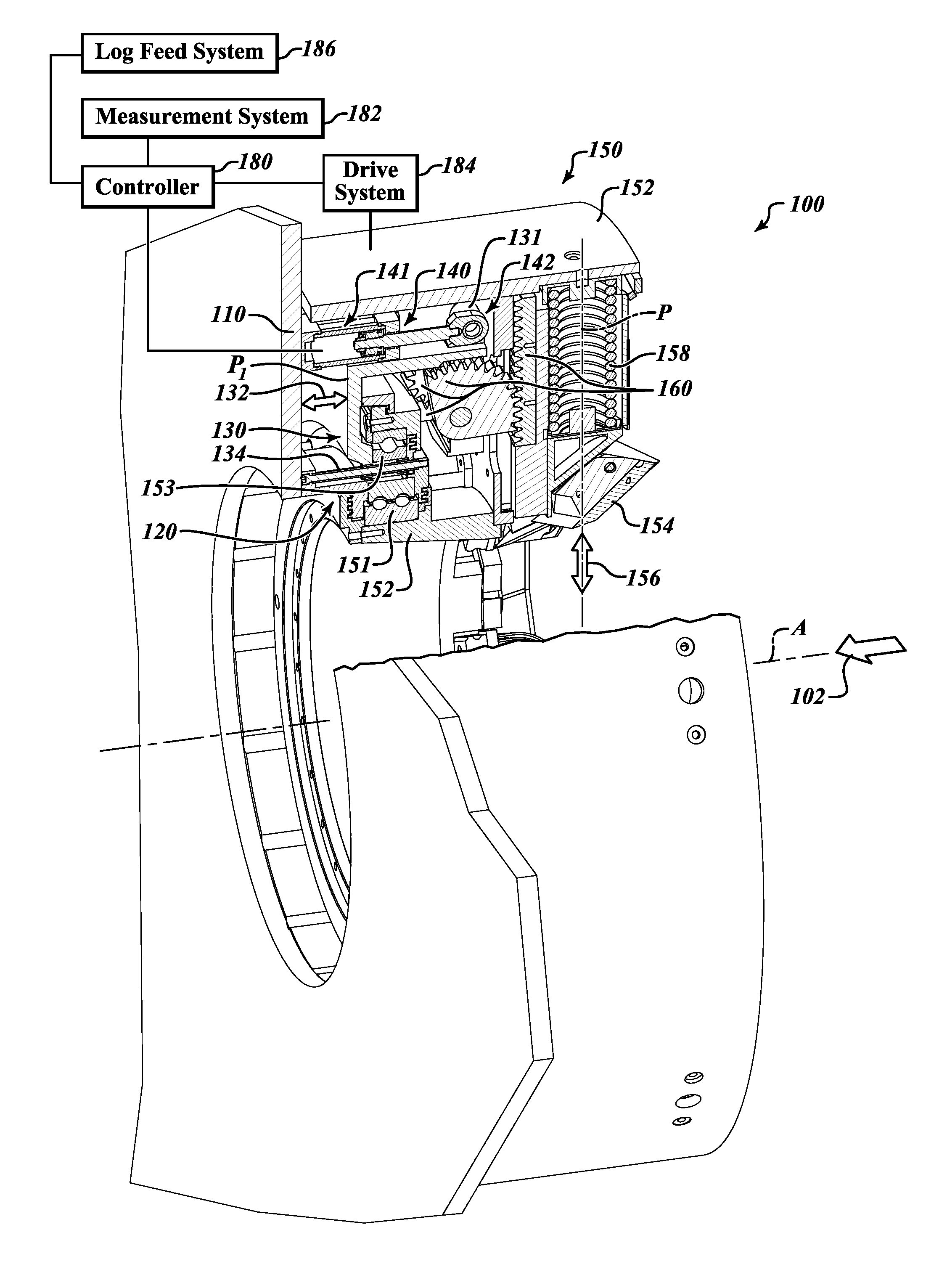

A butt flare reducing apparatus for logs is provided. The apparatus includes a machine frame, a stator ring assembly fixedly coupled to the machine frame, and a flare reducing tool adjustment assembly movably coupled to the stator ring assembly. The apparatus further includes an actuator coupled on one end to the machine frame and on the other end to the flare reducing tool adjustment assembly to move the flare reducing tool adjustment assembly between the opposing end positions, and a rotor assembly rotatably coupled to the stator ring assembly. The rotor assembly includes a rotor frame and at least one flare reducing tool movably coupled to the rotor frame to translate linearly toward and away from a longitudinal axis of rotation in direct correlation to movement of the actuator and flare reducing tool adjustment assembly to adjust a log processing diameter. Related methods are also provided.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- B27C Class
- 24 Applications Filed
- 16 Patents Issued To-Date
- 66.67 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- B27C Class
- 19.70 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Apr 18, 2028 |
