Machine tool
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 18, 2016
Grant Date -
Nov 26, 2015
app pub date -
Jun 25, 2012
filing date -
Jun 25, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

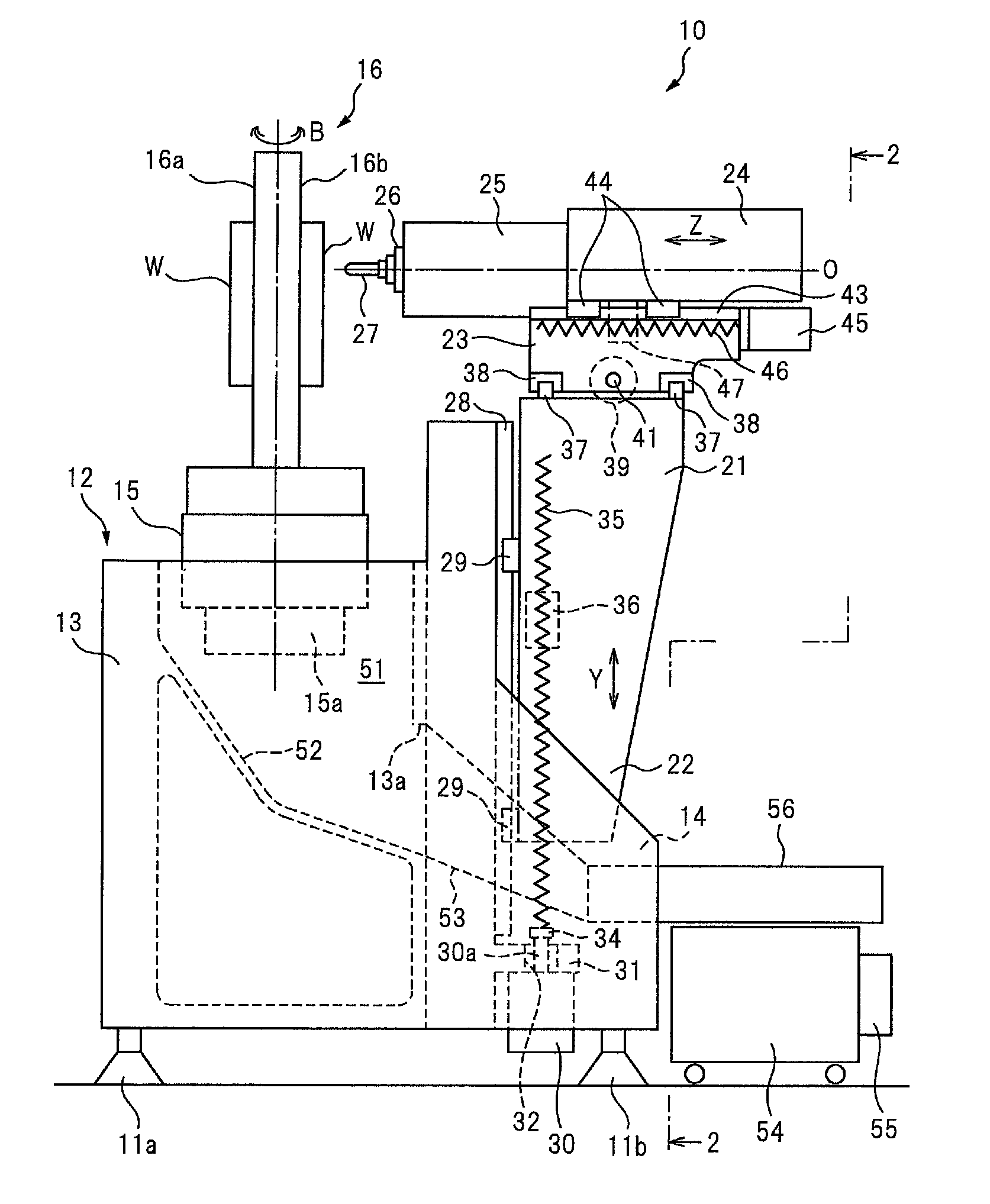

A machine tool includes: a bed, the upper surface of which has the table provided thereon; a cut debris duct which is provided so as to extend rearward from a cut debris discharge opening open at the center, in the left-right direction, of the rear face of the bed, and which discharges cut debris from within the bed to outside of the machine tool; a bifurcated vertically movable body which vertically moves along a pair of vertical guides, and which straddles the cut debris duct, the pair of vertical guides vertically extending on the rear face of the bed at positions on both the left and right sides of the cut debris duct; and a pair of left and right feed screws which extend parallel to the vertical guides, and which move the vertically movable body along the vertical guides.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2012 Application Filing Year
- B23Q Class
- 581 Applications Filed
- 430 Patents Issued To-Date
- 74.02 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B23Q Class
- 0 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Apr 18, 2028 |
