Slim fold cross brace design
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 18, 2016
Issued Date -
N/A
app pub date -
Aug 20, 2014
filing date -
Aug 20, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

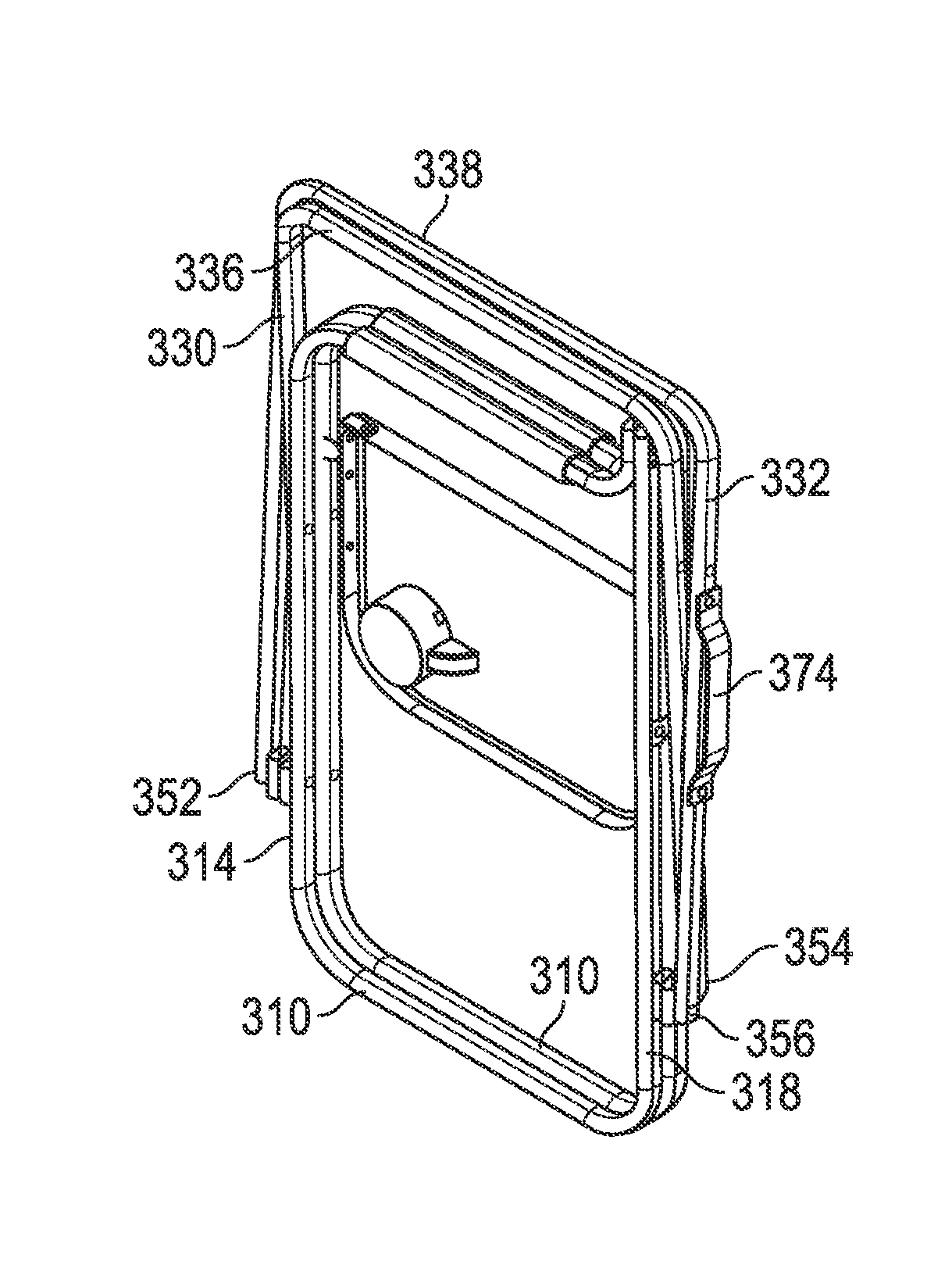

First and second U-shaped cross-members each include a front portion, a rear portion, and a cross bar connecting the front portion to the rear portion. The front and rear portions of the cross-members are pivotally connected with each other at central portions thereof. Left and right frame side assemblies are pivotally connected to the cross-members and have lateral portions that extend generally parallel the cross bars of the cross-members. The cross-members are mutually movable from a generally X-shaped setup condition in which the cross bars of the cross-members are transversely spaced apart from one another and the lateral portions of the left and right frame side assemblies also are transversely spaced apart from one another, to a generally flat collapsed condition in which the left and right frame side assemblies are nested within an envelope defined by the collapsed cross-members.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date |
|---|---|---|---|
| US | B2 | US9795217 | Aug 20, 2014 |
| US | B2 | US10143309 | Oct 24, 2017 |
| US | B2 | US10362875 | Nov 26, 2018 |
International Classification(s)
- 2014 Application Filing Year
- A47C Class
- 911 Applications Filed
- 788 Patents Issued To-Date
- 86.50 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 9 Citation Count
- A47C Class
- 10.32 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Apr 18, 2028 |
