Delay circuit
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 11, 2016
Grant Date -
Jan 28, 2016
app pub date -
Jun 10, 2015
filing date -
Jul 24, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

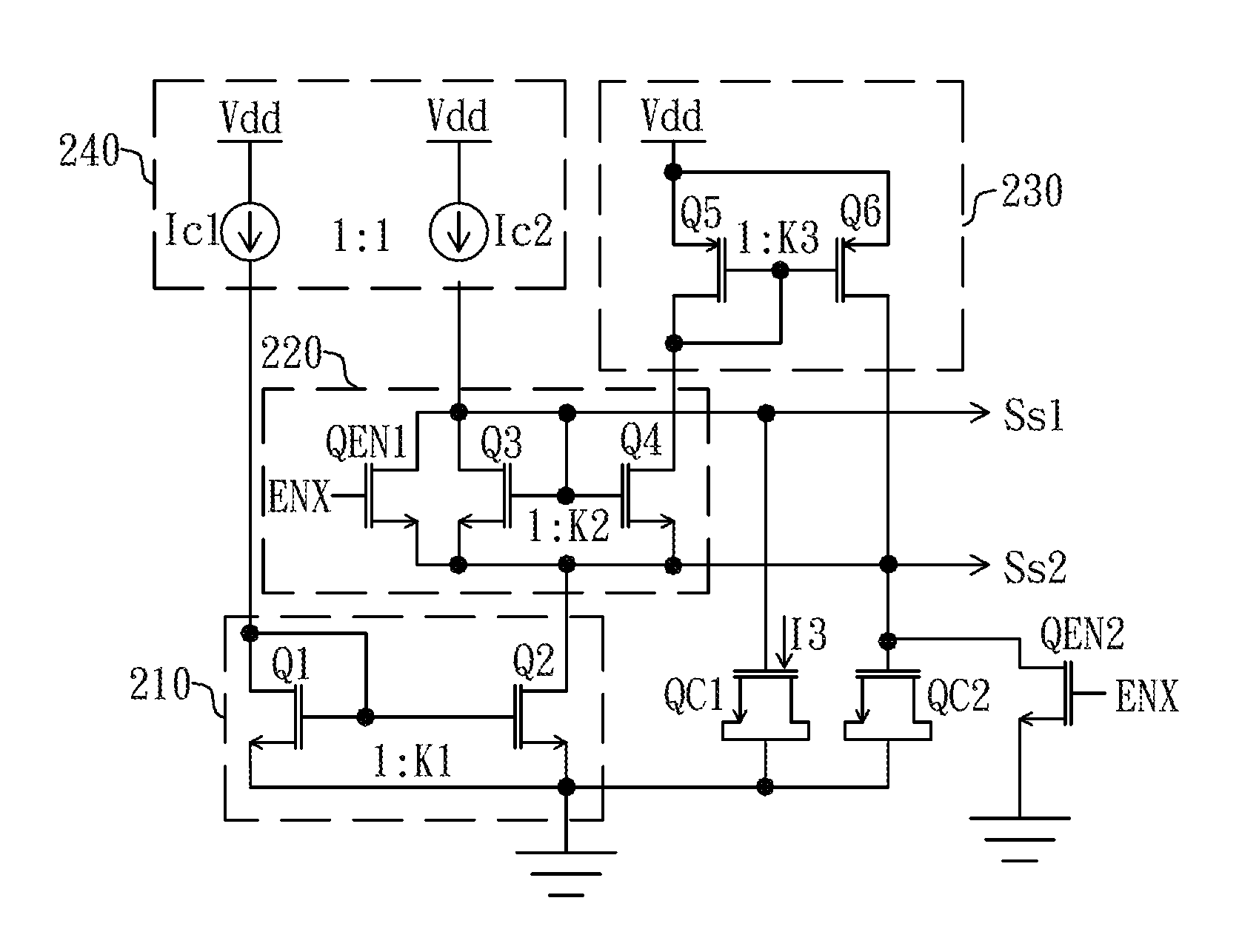

A delay circuit includes a current circuit, a first current mirror circuit, a second current mirror circuit, a self-compensation circuit, and a delay capacitor. A fixed ratio is between the first current and the second current provided by the current circuit. The first current mirror circuit generates a first mirror current in response to the first current. A partial current of the second current flowing through the second current mirror circuit is a base current, and the second current mirror circuit generates a second mirror current in response to the base current. The self-compensation circuit generates a feedback current in response to the second mirror current. The delay capacitor generates a delay signal. The charging current is equal to the second current subtracting the base current. The first mirror current is the sum of the base current, the second mirror current, and the feedback current.
