Crossbow assembly
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 11, 2016
Issued Date -
N/A
app pub date -
Mar 21, 2016
filing date -
Aug 18, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

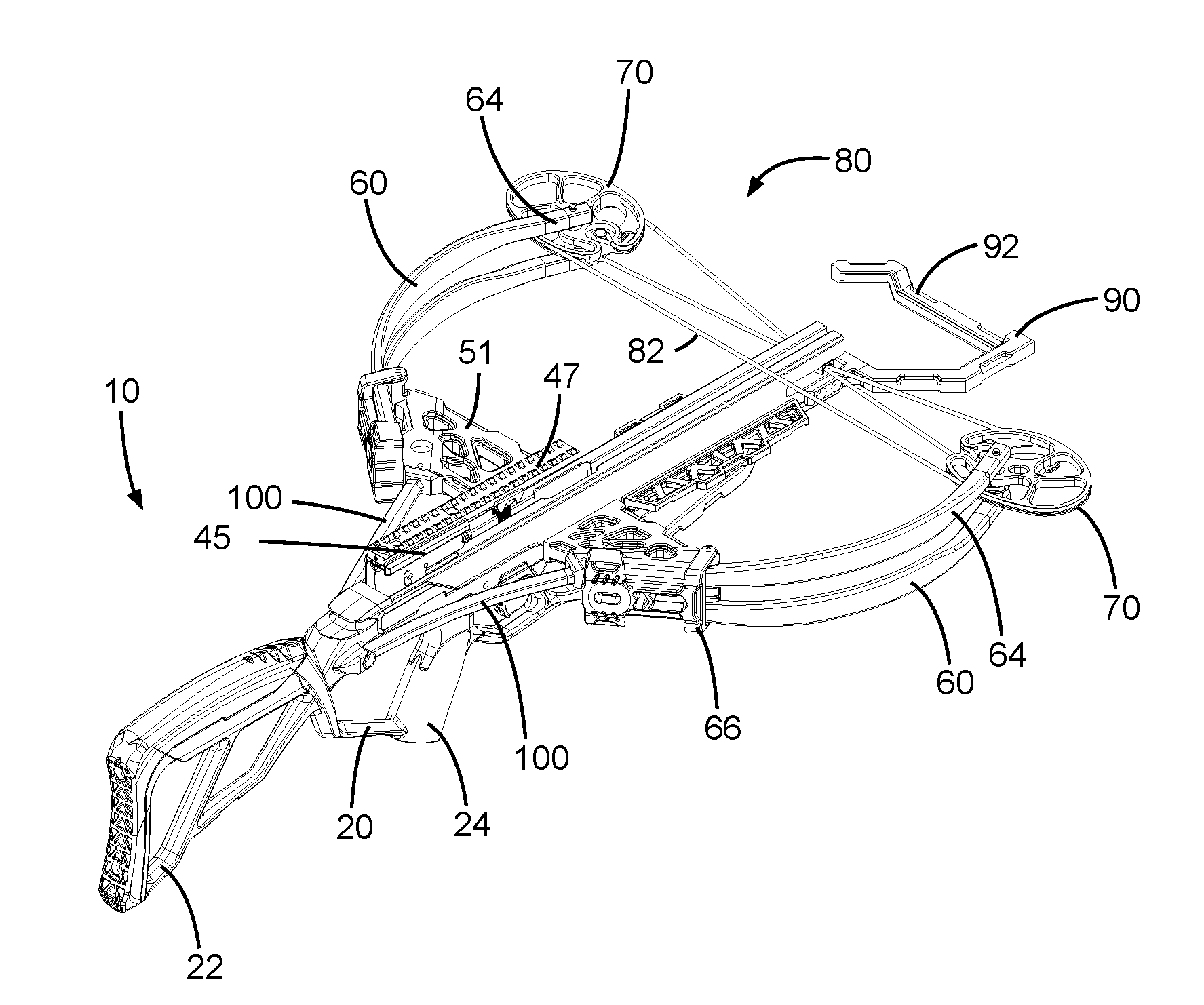

A crossbow system is illustrated with a rail, a stock and a riser assembly. In certain embodiments, flexible limbs extend forward from riser assembly, in the direction of shooting, and include cams at the limb tips for the power cable arrangement at their ends. In certain embodiments, the riser assembly is made in a triangular arrangement with a crosspiece and a pair of struts extending rearward and are braced at an apex. Optionally, the crosspiece and struts can be formed separately and connected during assembly, facilitating manufacture and ease of assembly of the crossbow and allowing greater flexibility in the choice of manufacturing methods, materials and mounting arrangements.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- F41G Class
- 360 Applications Filed
- 282 Patents Issued To-Date
- 78.34 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 19 Citation Count
- F41G Class
- 67.81 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Apr 11, 2028 |
