Hybrid vehicles
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 11, 2016
Issued Date -
N/A
app pub date -
Mar 29, 2011
filing date -
Sep 14, 1998
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

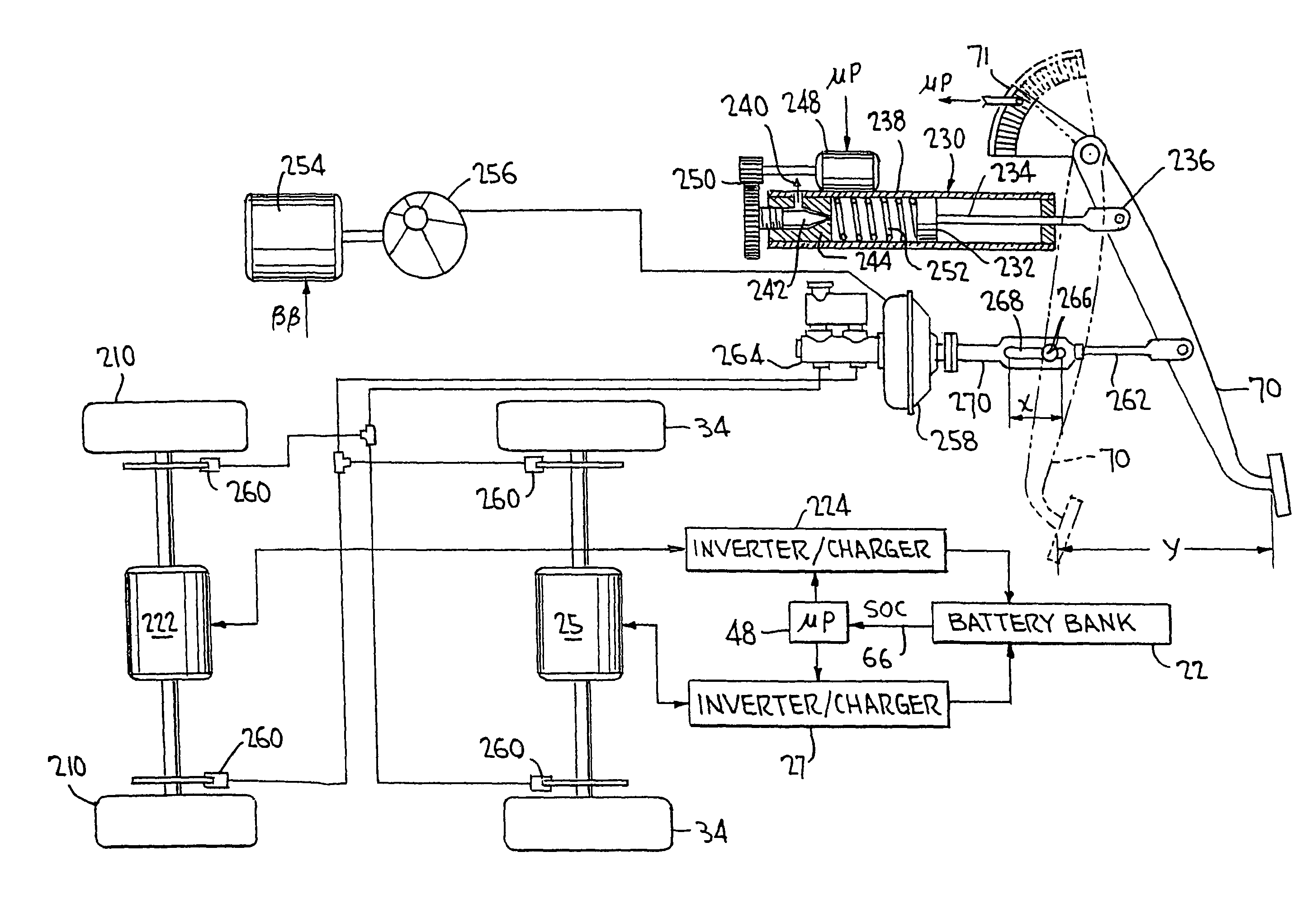

A hybrid vehicle comprises an internal combustion engine, a traction motor, a starter motor, and a battery bank, all controlled by a microprocessor in accordance with the vehicle's instantaneous torque demands so that the engine is run only under conditions of high efficiency, typically only when the load is at least equal to 30% of the engine's maximum torque output. In some embodiments, a turbocharger may be provided, activated only when the load exceeds the engine's maximum torque output for an extended period; a two-speed transmission may further be provided, to further broaden the vehicle's load range. A hybrid brake system provides regenerative braking, with mechanical braking available in the event the battery bank is fully charged, in emergencies, or at rest; a control mechanism is provided to control the brake system to provide linear brake feel under varying circumstances.
First Claim
Other Claims data not available
Family
International Classification(s)
- B60K:ARRANGEMENT OR MOUNTING OF PROPULSION UNITS OR OF ....
- B60H:ARRANGEMENTS OR ADAPTATIONS OF HEATING, COOLING, V....
- B60W:CONJOINT CONTROL OF VEHICLE SUB-UNITS OF DIFFERENT....
- H01M:PROCESSES OR MEANS, e.g. BATTERIES, FOR THE DIRECT....
- F02M:SUPPLYING COMBUSTION ENGINES IN GENERAL WITH COMBU....
- B60T:VEHICLE BRAKE CONTROL SYSTEMS OR PARTS THEREOF; BR....
- F02N:STARTING OF COMBUSTION ENGINES
- F01N:GAS-FLOW SILENCERS OR EXHAUST APPARATUS FOR MACHIN....
- F02B:INTERNAL-COMBUSTION PISTON ENGINES; COMBUSTION ENG....
- F02D:CONTROLLING COMBUSTION ENGINES
- B60L:ELECTRIC EQUIPMENT OR PROPULSION OF ELECTRICALLY-P....
Cited Art Landscape
Patent Citation Ranking
- 11 Citation Count
- B60K Class
- 81.73 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Apr 11, 2028 |
