Lubricant dispenser
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 4, 2016
Grant Date -
Dec 25, 2014
app pub date -
Dec 12, 2012
filing date -
Jan 3, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

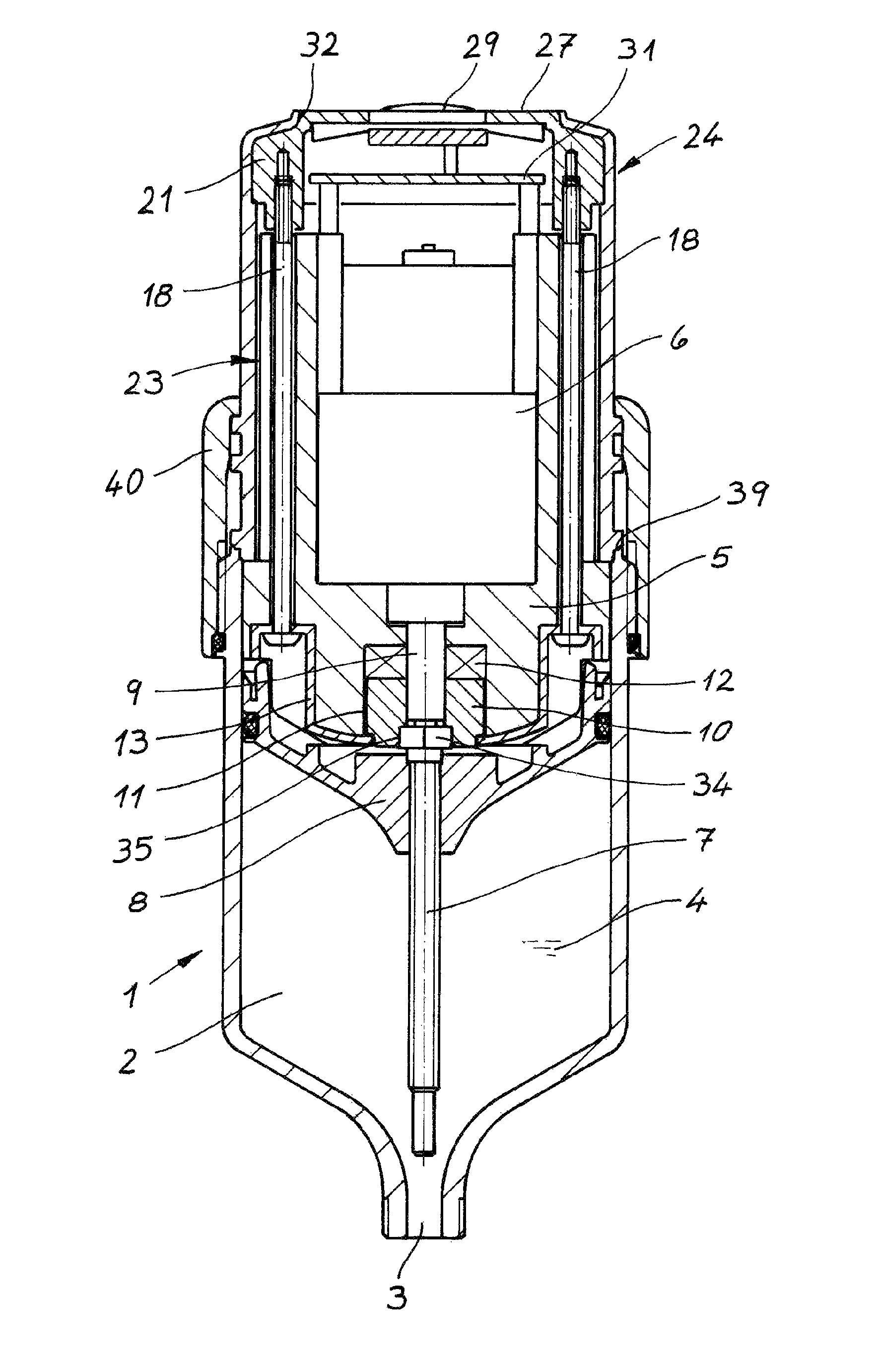

The invention relates to a lubricant dispenser having a lubricant cartridge (1), which has a lubricant storage space (2) having an outlet opening (3) for lubricant (4), a carrier (5) which is connected to the lubricant cartridge (1) in a detachable manner and accommodates a battery-operated motor (6) for driving a spindle (7), and a plunger (8) connected to the spindle (7) for ejecting the lubricant (4), wherein an output shaft (9) of the motor (6) is connected to the spindle (7) by means of an adapter (10) and wherein the adapter (10) is mounted in a rotationally movable manner in an accommodation space (11) of the carrier (5) that is open towards the lubricant cartridge (1). A rolling bearing (12), which is arranged between the carrier (5) and the adapter (10), is provided as the bearing of the adapter (10). The adapter (10) is secured axially against falling out of the accommodation space by means of a retaining means (13) that is fastened to the carrier (5) and preferably designed as a lid.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2012 Application Filing Year
- F16N Class
- 92 Applications Filed
- 78 Patents Issued To-Date
- 84.79 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 3 Citation Count
- F16N Class
- 50 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Apr 4, 2028 |
