Actuator
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 4, 2016
Grant Date -
Dec 3, 2015
app pub date -
Dec 11, 2013
filing date -
Dec 19, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

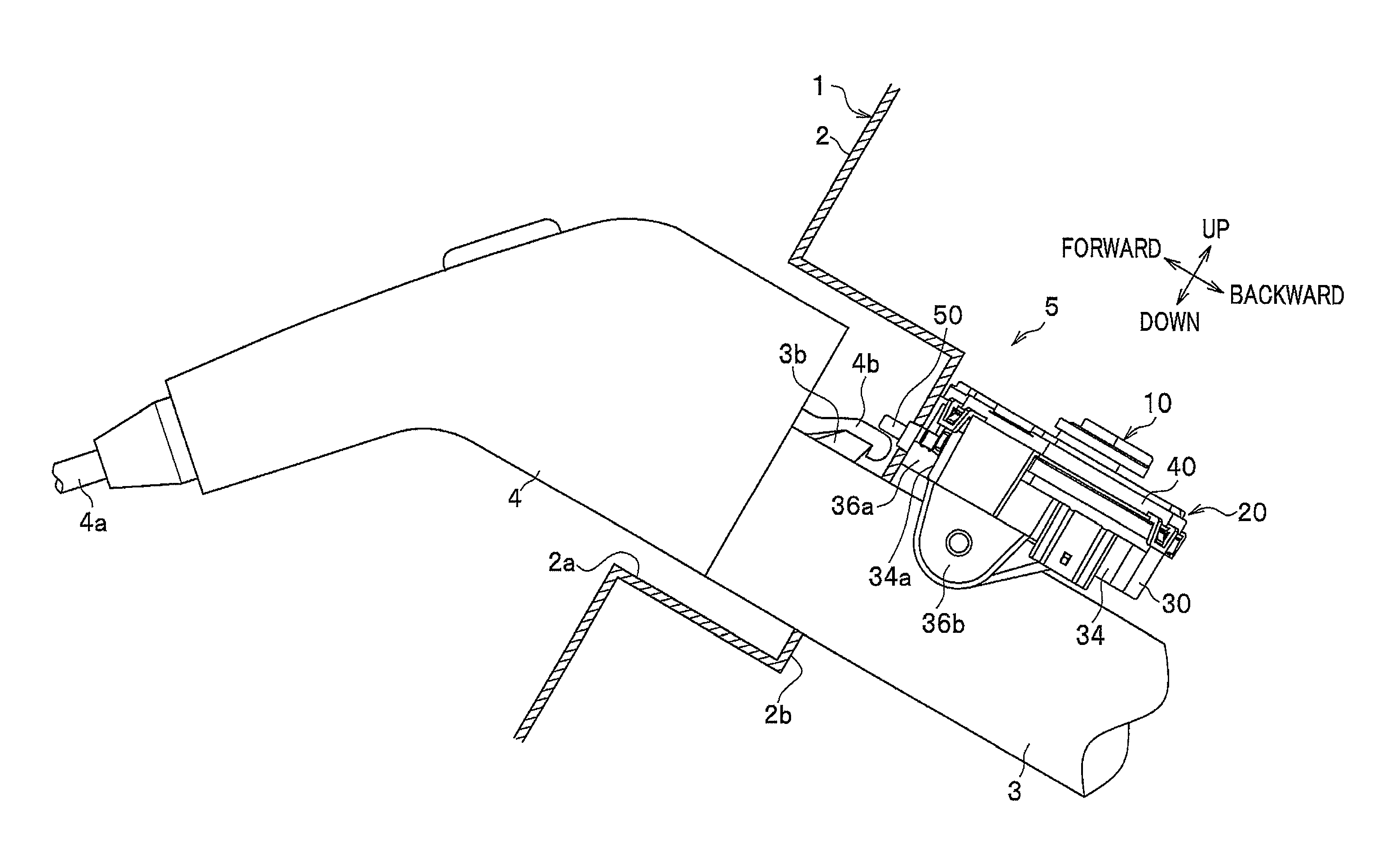

An actuator containing a drive mechanism that moves a locking pin forward and backward. Said drive mechanism is provided with the following: a holder that holds the locking pin; a cam member that has a cam gear; and a power-transmitting member in which a lower gear to which power from a motor is transmitted and an upper gear coupled to the cam gear are formed. The cam is offset from the center of rotation of the cam gear. The holder is pushed in a forward/backward direction by reciprocal motion of the cam within a range that constitutes less than a full revolution about the center of rotation of the cam gear. A region into which part of the lower gear fits and a region through which the cam moves are provided in a space above one surface of the cam gear.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 4 Citation Count
- H01R Class
- 13.74 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Apr 4, 2028 |
