Lead delivery apparatus
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 4, 2016
Grant Date -
May 1, 2014
app pub date -
Oct 30, 2013
filing date -
Oct 30, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

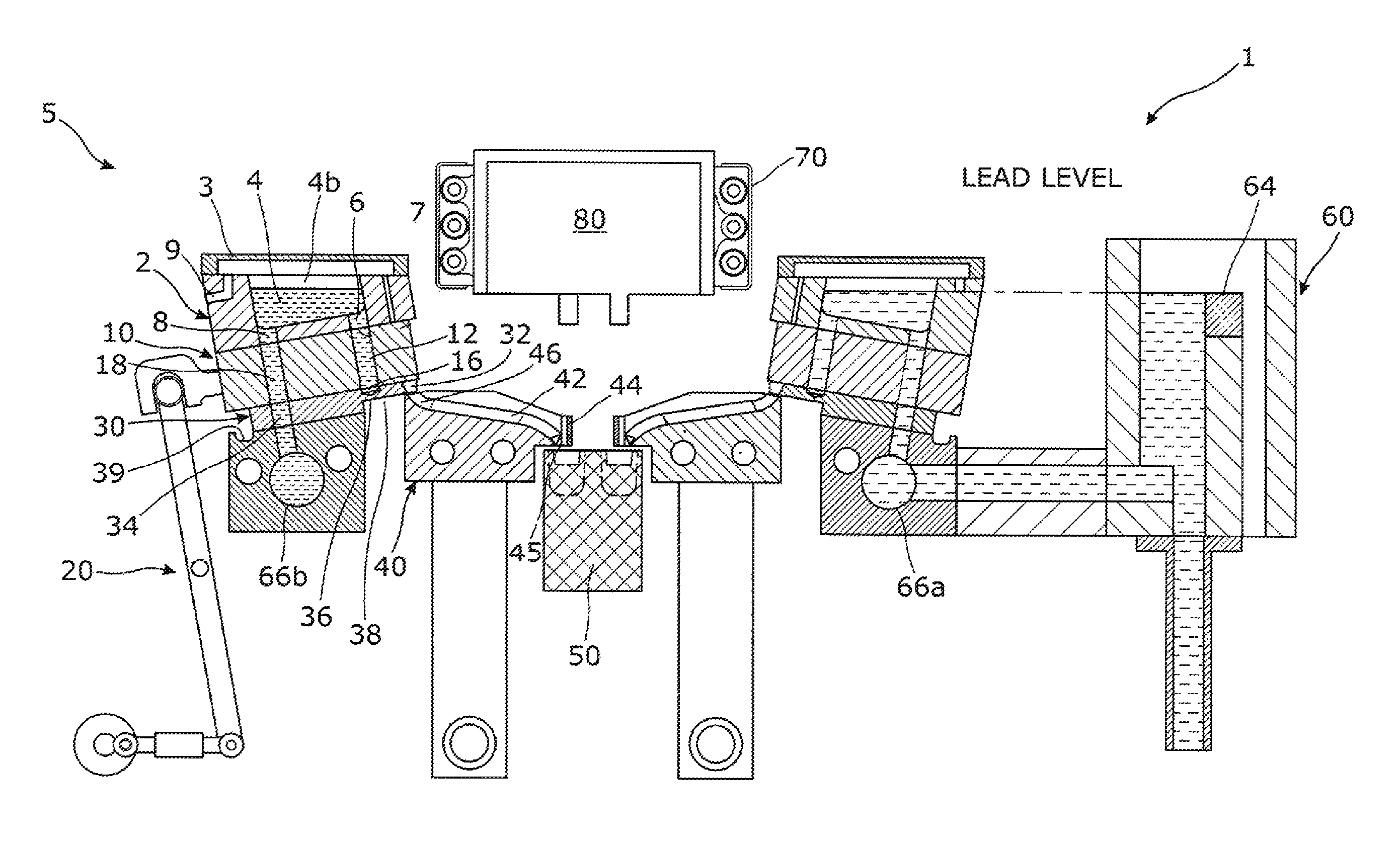

An apparatus for delivering a predetermined volume of lead to a mould includes a housing defining a lead reservoir having a lead outlet defined in its base and in communication with the reservoir. A runway is provided beneath the base, spaced from the base and generally parallel thereto. A block is provided slidably mounted between the base and the runway and defining a through cavity having the predetermined volume for receiving lead from the outlet in a first position and for releasing the lead in a second position. A mechanism is provided for reciprocating the block between the first and second positions. A cast on strap machine is also disclosed. A lead delivery apparatus comprising a delivery chute is also disclosed.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2013 Application Filing Year
- B22D Class
- 363 Applications Filed
- 318 Patents Issued To-Date
- 87.61 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B22D Class
- 0 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Apr 4, 2028 |
