Apparatus for washing and drying totes and related methods
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 4, 2016
Grant Date -
Sep 4, 2014
app pub date -
Mar 4, 2013
filing date -
Mar 4, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

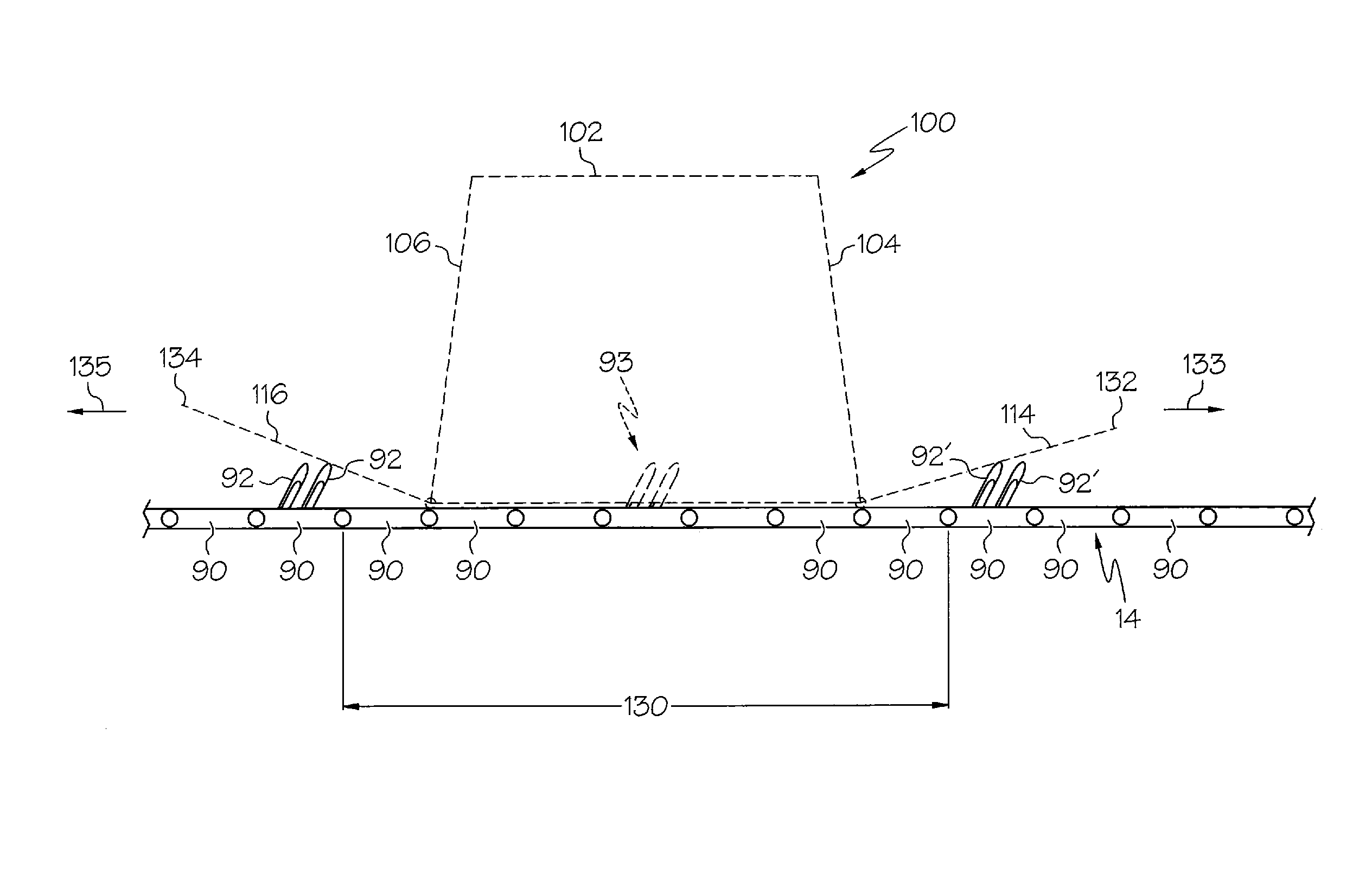

A machine and method are provided for washing a tote or other container having a bottom wall, and first and second opposed side walls that are connected by first and second opposed end walls to define an access opening. The machine and method involve utilizing an automated washing machine having a housing that includes a wash zone for spraying wash liquid onto the container, a downstream rinse zone for spraying rinsing liquid onto the tote and a downstream drying zone for directing air flow onto the container to promote drying of the container and a conveyor mechanism for moving the container through the housing. The container is placed in an inverted position on the conveyor mechanism with the bottom wall facing upward and the access opening facing downward, and the conveyor mechanism moves the container through the zones for cleaning.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2013 Application Filing Year
- B05B Class
- 976 Applications Filed
- 884 Patents Issued To-Date
- 90.58 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B05B Class
- 0 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Apr 4, 2028 |
