Access device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 20, 2016
Grant Date -
Jan 10, 2013
app pub date -
Feb 16, 2011
filing date -
Feb 17, 2010
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

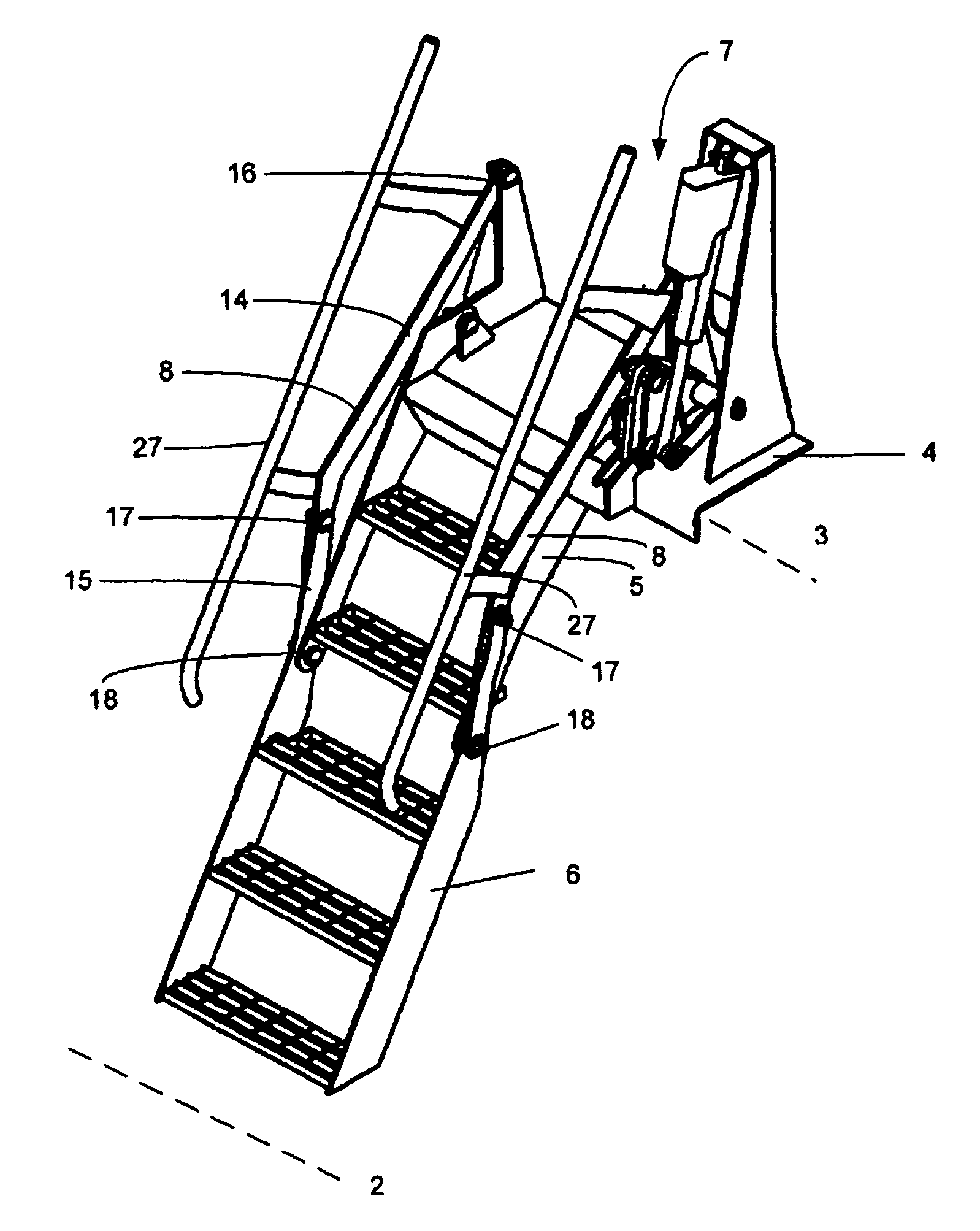

An access device that provides access between a substrate surface and an elevated surface includes a first ladder member that is operatively attached to a mounting via a drive mechanism. The drive mechanism includes a rotatable member having three pivotal connectors spaced apart in a triangular arrangement. A first of the connectors is pivotally attached to the mounting. A second of the connectors is pivotally attached to the first ladder member via a control arm. A third of the connectors is pivotally attached to an extremity of the mounting via an extendible arm. The extendible arm causes the rotatable member to rotate about the first connector, and consequently effect movement of the access device. The access device further includes a second ladder member, a first end of which is pivotally attached to a second end of the first ladder member.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2011 Application Filing Year
- E06C Class
- 64 Applications Filed
- 52 Patents Issued To-Date
- 81.25 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 6 Citation Count
- E06C Class
- 25.27 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Mar 20, 2028 |
