Centrifugal separator with inlet arrangement in the form of a set of annular discs or a helically shaped element
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 13, 2016
Grant Date -
Jan 22, 2015
app pub date -
Feb 15, 2013
filing date -
Feb 15, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

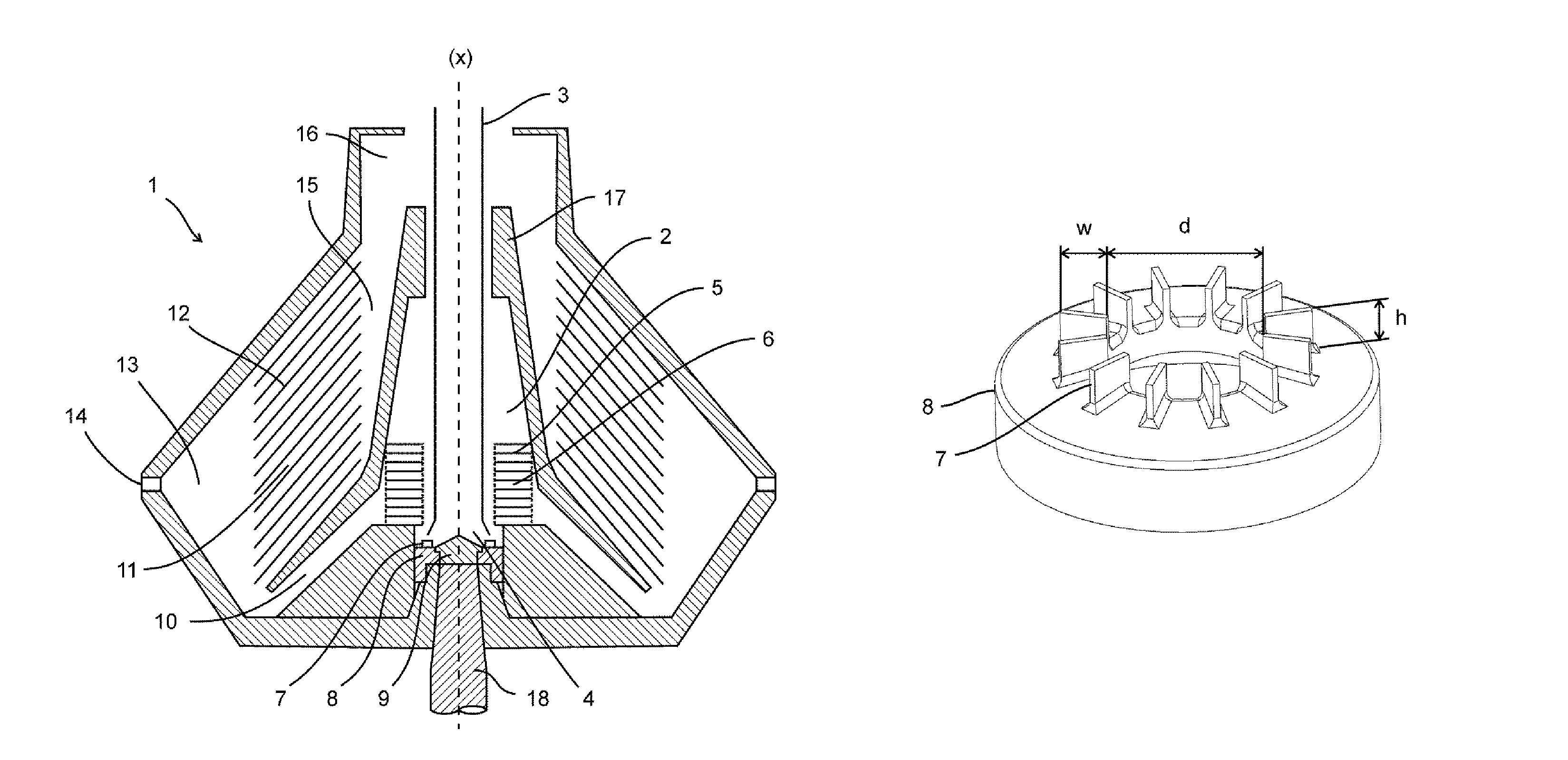

The invention relates to a centrifugal separator comprising a rotor arranged to be rotatable around an axis of rotation (x). An inlet chamber is formed in the rotor and an inlet pipe extends into the rotor and has an opening in the inlet chamber for supply of a liquid mixture of components. An inlet arrangement is provided in the inlet chamber, comprising a set of annular discs coaxial with the rotor and forming passages for liquid between the discs, or a helically shaped element coaxial with the rotor and forming passages for liquid between the windings of the helically shaped element. The separator further comprises vanes arranged upstream of the inlet arrangement such as to cause a pre-rotation and pre-acceleration of the liquid mixture. The vanes may be provided on a removable element of the rotor.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2013 Application Filing Year
- B04B Class
- 115 Applications Filed
- 99 Patents Issued To-Date
- 86.09 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B04B Class
- 0 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Mar 13, 2028 |
