Character display mechanism for a timepiece
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 6, 2016
Grant Date -
May 5, 2016
app pub date -
Nov 3, 2015
filing date -
Nov 5, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

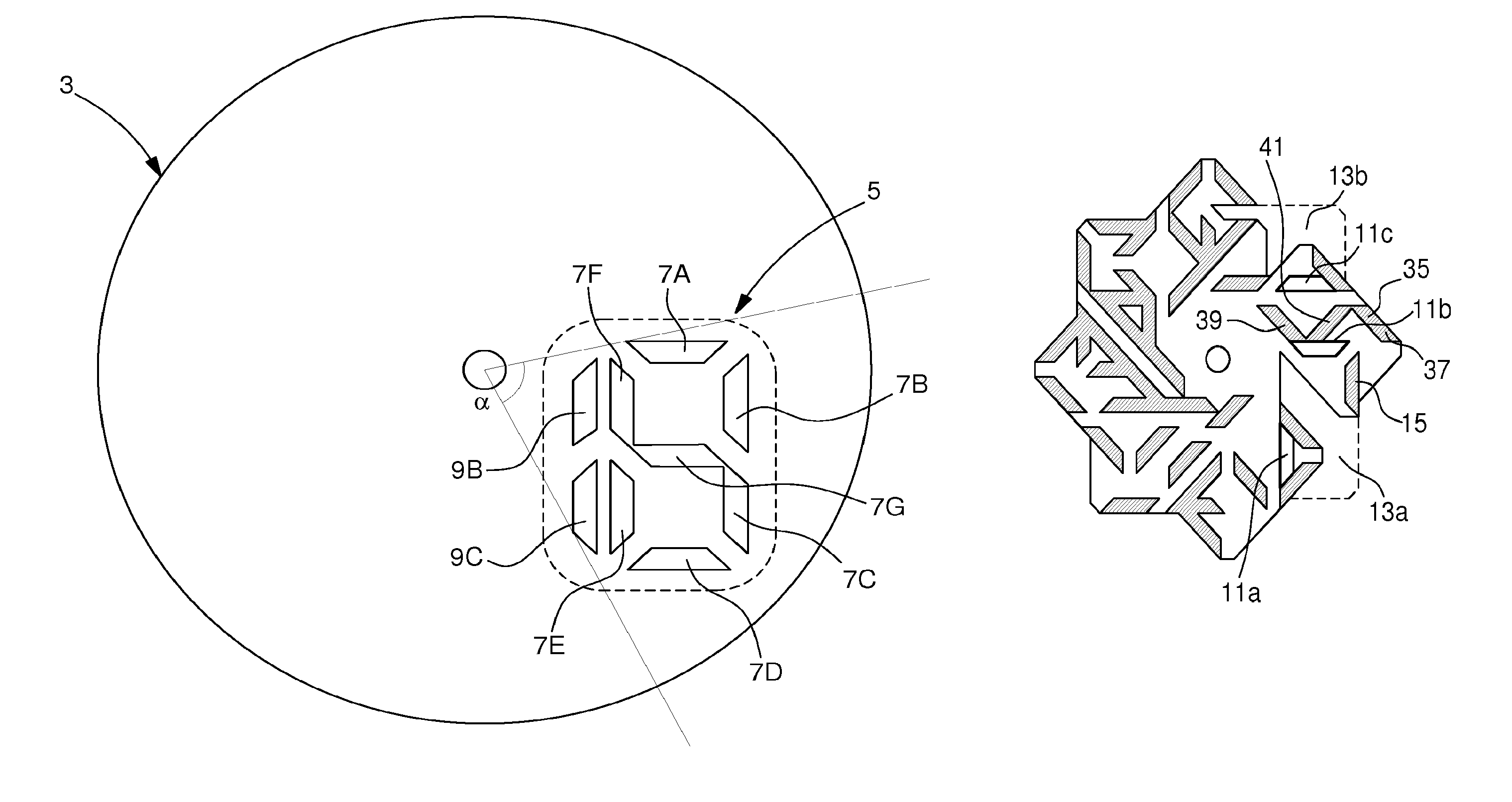

The character display mechanism for a timepiece includes a first indicator member disposed underneath a mask and arranged to rotate in steps about an axis, the first indicator member bearing a series of intertwined figures distributed over a circular track, the mask including a display area having a plurality of first openings, the figures being intended to appear successively through the first openings during the rotation of the first indicator member, and the first openings being disposed such that only one figure at a time appears in the display area. The first indicator member is pierced with second openings, said second openings being arranged to stop directly underneath one of said first openings during the step-by-step rotation of the first indicator member. The display mechanism includes a second indicator member at least partially superposed on the first indicator member in the display area. The second indicator member bears a pattern comprising segments.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- G04B Class
- 276 Applications Filed
- 234 Patents Issued To-Date
- 84.79 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- G04B Class
- 0 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Mar 6, 2028 |
