Armor plate with shock wave absorbing properties
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 6, 2016
Grant Date -
Oct 16, 2014
app pub date -
Feb 20, 2014
filing date -
Mar 14, 2011
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

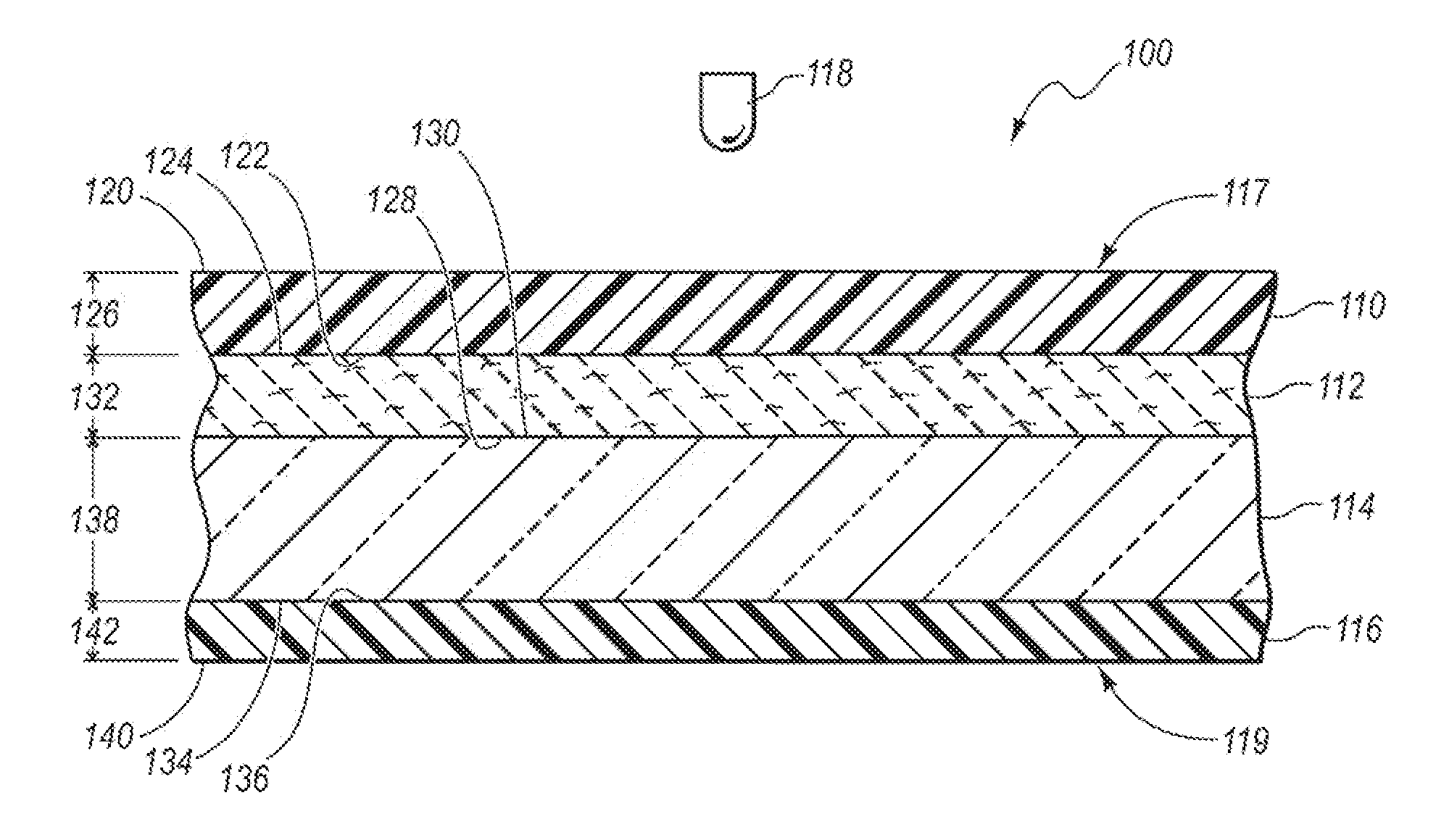

A composite armor plate includes a fracture layer placed adjacent to a ceramic layer. The ceramic layer provides a ballistic resistant layer that receives a ballistic impact and propagates a compression wave. The fracture layer is placed behind the ceramic layer and absorbs a portion of the compression wave propagating out in front of the ballistic impact. The absorbed compression wave causes the fracture layer to at least partially disintegrate into fine particles, which dissipates energy in the process. To cause a higher degree of fracturing (and thus larger dissipation of compression wave energy) the fracture layer includes a plurality of resonators embedded in a fracture material.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- F41H Class
- 264 Applications Filed
- 218 Patents Issued To-Date
- 82.58 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- F41H Class
- 0 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Mar 6, 2028 |
