Heat-shrinking facility comprising a heating enclosure provided with a base and a hood
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 6, 2016
Grant Date -
Jan 16, 2014
app pub date -
Jul 12, 2012
filing date -
Jul 12, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

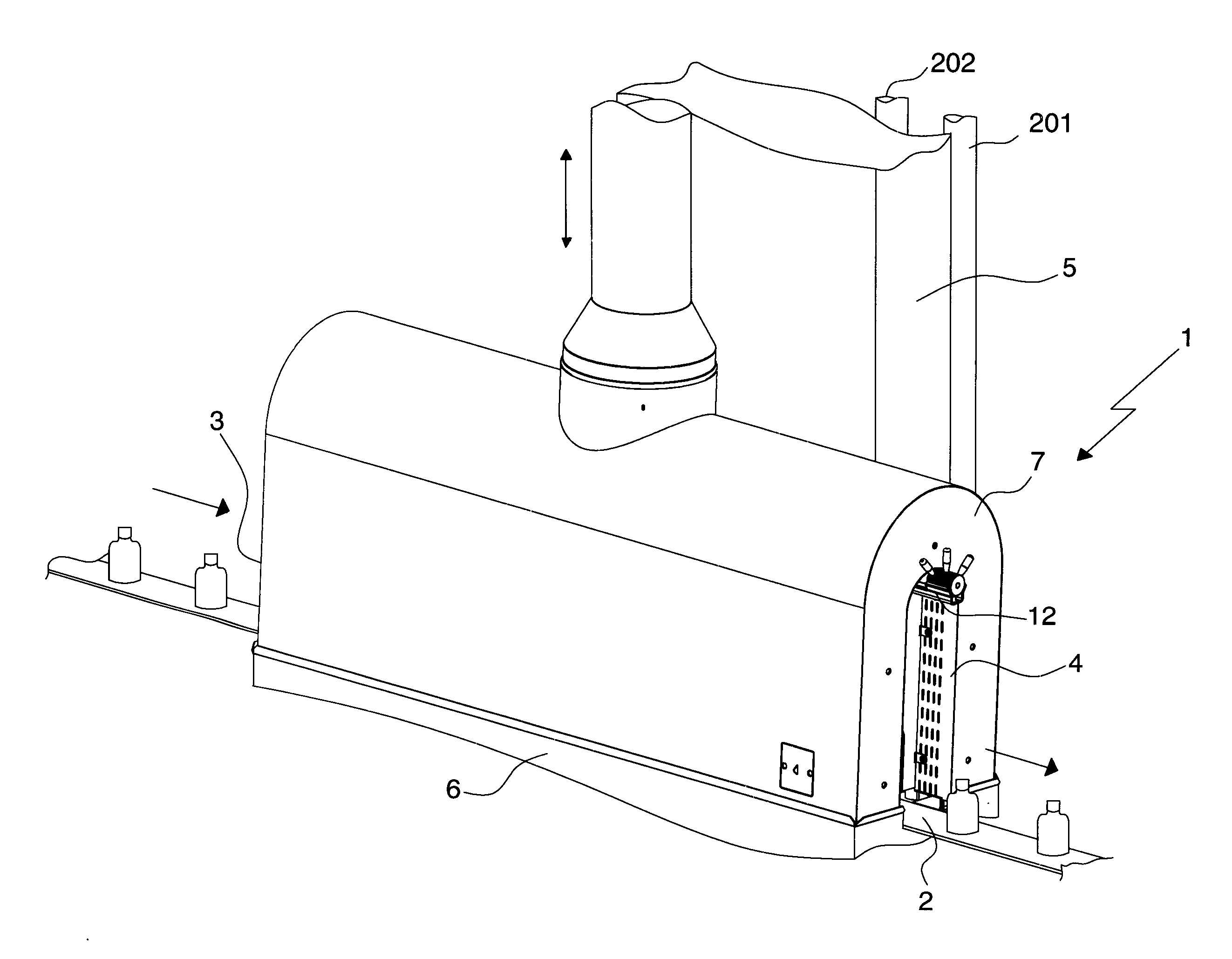

A facility for heat-shrinking sleeves made of heat-shrinkable material inserted onto supports, such as containers, includes an enclosure provided with a heat-diffusion means, a conveyor for carrying the supports through the enclosure between an intake of the enclosure and an output of the enclosure, the enclosure including a base and a hood which is mounted mobile between an open position allowing access to the conveyor and an operational position in which said hood is sealingly mounted on the base, the hood comprising two openings through which the conveyor extends when the hood is in operational position. The hood comprises an inner partition mounted mobile between a retracted position and a service position in which the partition defines with the side walls of the hood and the base a main chamber of the enclosure subjected to the action of the heat-diffusion means when the hood is in operational position.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2012 Application Filing Year
- B29C Class
- 3499 Applications Filed
- 2678 Patents Issued To-Date
- 76.54 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B29C Class
- 0 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Mar 6, 2028 |
