Two oil chamber counterweight
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 30, 2016
Grant Date -
Dec 10, 2015
app pub date -
Jun 6, 2014
filing date -
Jun 6, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

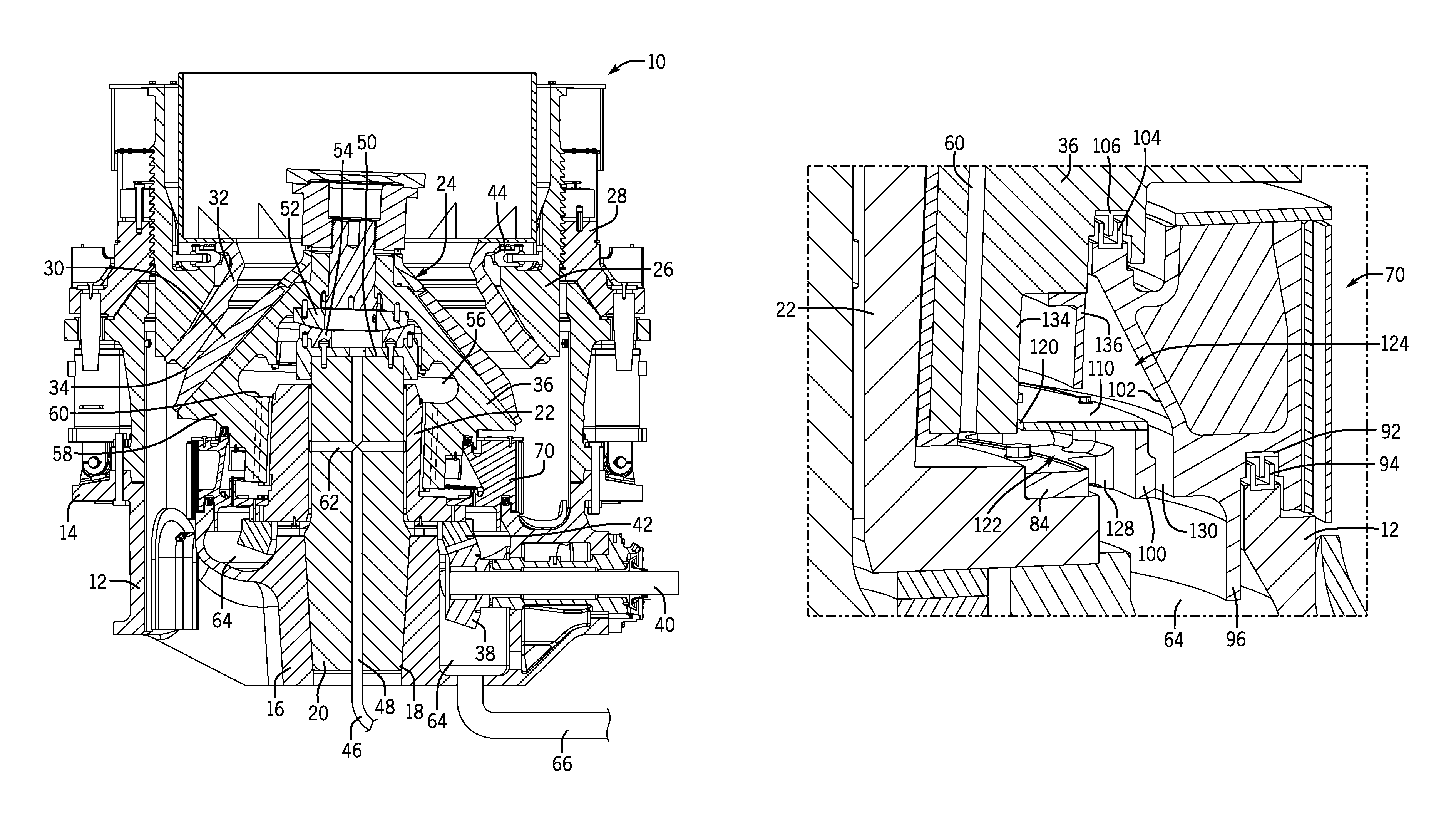

A counterweight for use in a cone crusher that includes an inner oil chamber and an outer oil chamber to collect lubricating oil during operation of the cone crusher. The counterweight includes a vertical separating wall that receives a splash shield. The vertical separating wall and splash shield define an inner oil chamber while an outer oil chamber is defined by the splash shield, the vertical separating wall and an inner wall of the counterweight. Both the inner and outer oil chambers include drain holes that allow lubricating oil to pass through a generally horizontal floor of the counterweight. The combination of the inner and outer oil chambers allows oil to quickly exit the counterweight into the main oil sump and reduces the amount of oil that gets exposed to the upper seal assembly which reduces the passage of oil past seal assemblies formed in the cone crusher.
First Claim
Other Claims data not available
Family
- No Family data available.
International Classification(s)
- 2014 Application Filing Year
- B02C Class
- 388 Applications Filed
- 313 Patents Issued To-Date
- 80.68 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B02C Class
- 0 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Feb 29, 2028 |
