Wi-Fi radio distribution network stations and method of operating Wi-Fi RDN stations
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 23, 2016
Grant Date -
May 14, 2015
app pub date -
Apr 11, 2014
filing date -
Jun 28, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

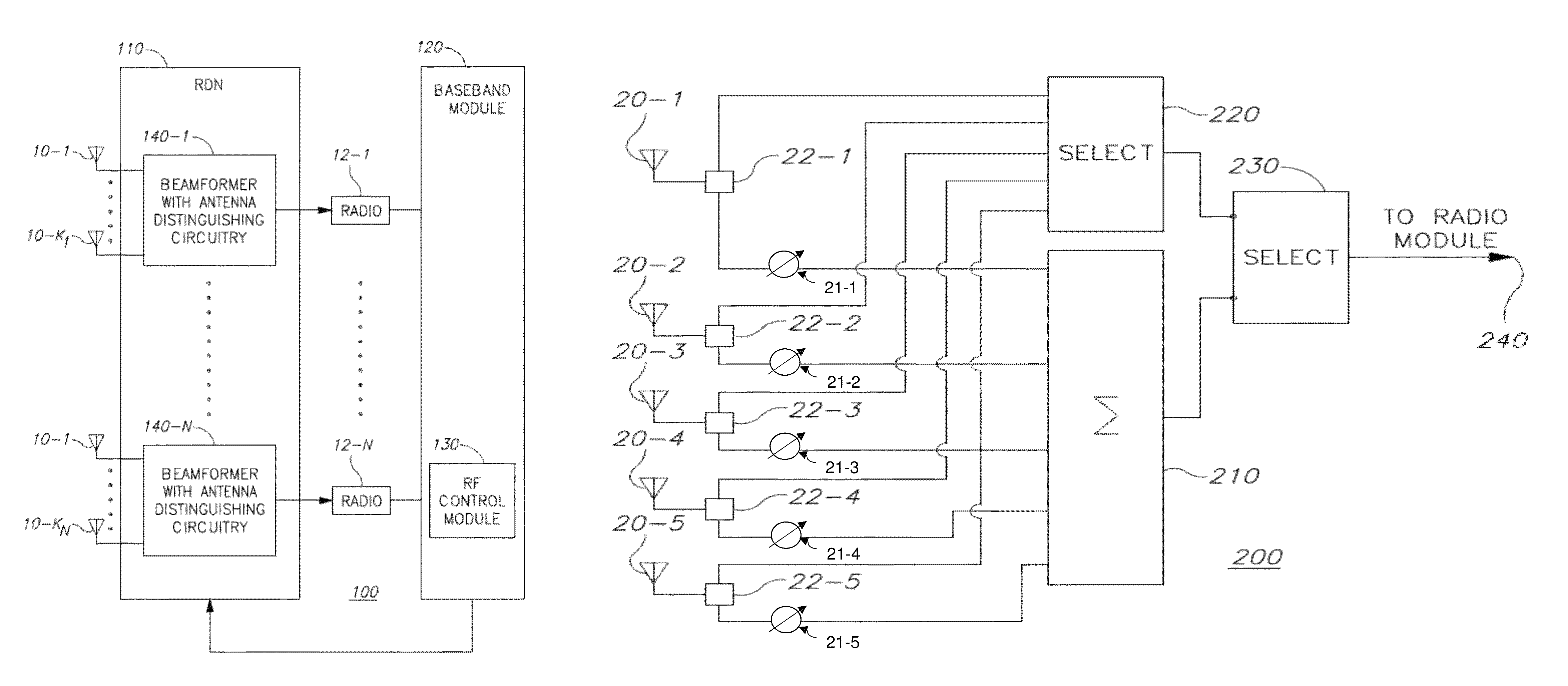

A Wi-Fi radio distribution network (RDN) station is provided for use in a wireless communications network comprising a plurality of wireless stations. The Wi-Fi RDN station comprises a multiple-input-multiple-output (MIMO) receiving system configured to operate in accordance with a channel estimation MIMO receiving scheme; and a RDN connected to the MIMO receiving system. The RDN comprises at least one beamformer arranged to be fed by two or more antennas, wherein each of the beamformers includes a combiner configured to combine signals coming from a plurality of antennas associated with the respective beamformer into a single signal. The MIMO receiving system is configured to perform one or both of channel estimation using a single antenna or beamforming. Both channel estimation and beamforming may be based on one or more packets addressed to one or more wireless stations in the communications network other than the Wi-Fi RDN station.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- H04B Class
- 10.71 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Feb 23, 2028 |
