Actuated castellation plate for a currency acceptor
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 23, 2016
Grant Date -
Dec 31, 2015
app pub date -
Jun 26, 2014
filing date -
Jun 26, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

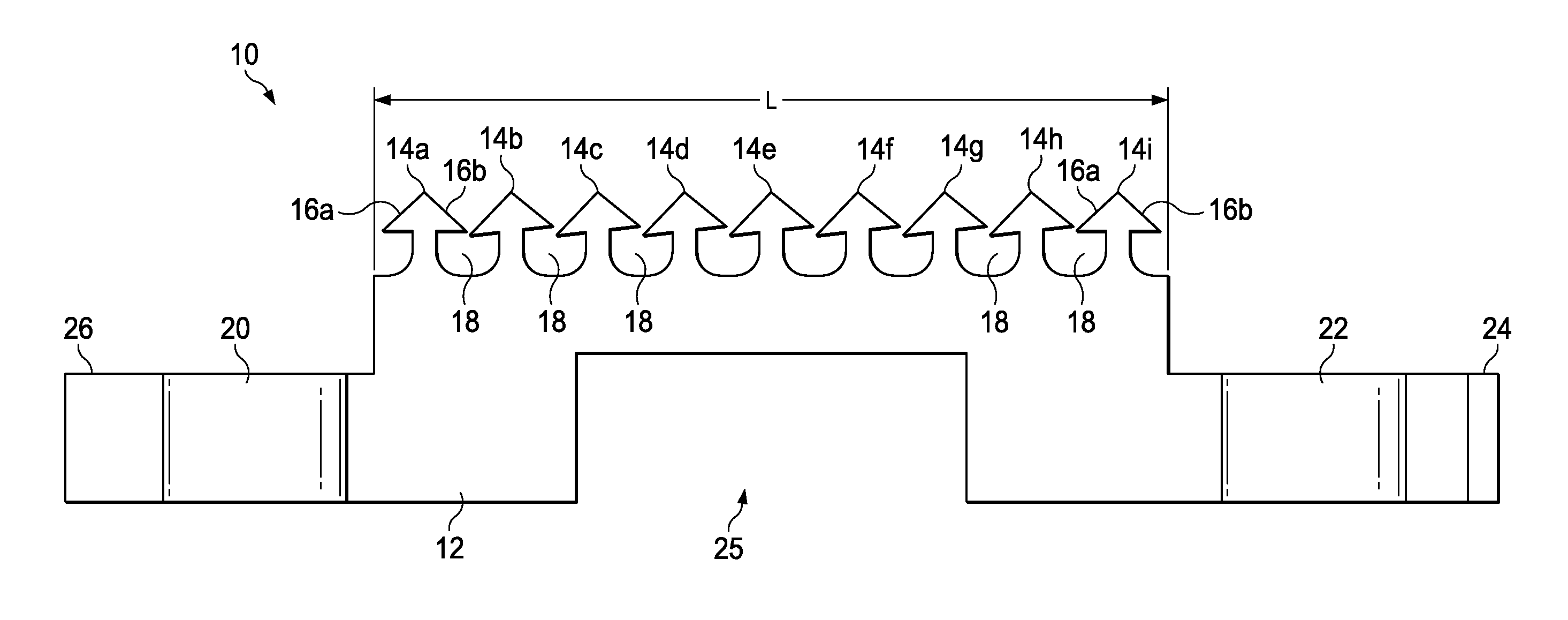

An actuated castellation plate can be arranged across a length of a currency passageway of a currency acceptor assembly and configured in an open state. Pressure from an attempted string fraud, such as pulling in reverse a bill across the castellation plate, can actuate the castellation plate to a closed state, obstructing the currency passageway so that the bait bill cannot be retrieved. Embodiments can include a currency acceptor including a currency passageway, mounting assembly, currency storage assembly having an entrance, the currency passageway being arranged to guide a currency denomination to the entrance of the currency storage assembly, and an actuated castellation plate including an array of teeth coupled to a baseplate including a receptacle and two opposing mounting ends, the castellation plate being configured at the entrance of the cashbox assembly to transfer between an open and closed state. Related apparatus, systems, techniques, and articles are also described.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- G07D Class
- 254 Applications Filed
- 218 Patents Issued To-Date
- 85.83 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- G07D Class
- 0 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Feb 23, 2028 |
