Method of determining the position of a detector disposed at the bottom of the sea
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 23, 2016
Grant Date -
Feb 14, 2013
app pub date -
Mar 25, 2011
filing date -
Apr 6, 2010
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

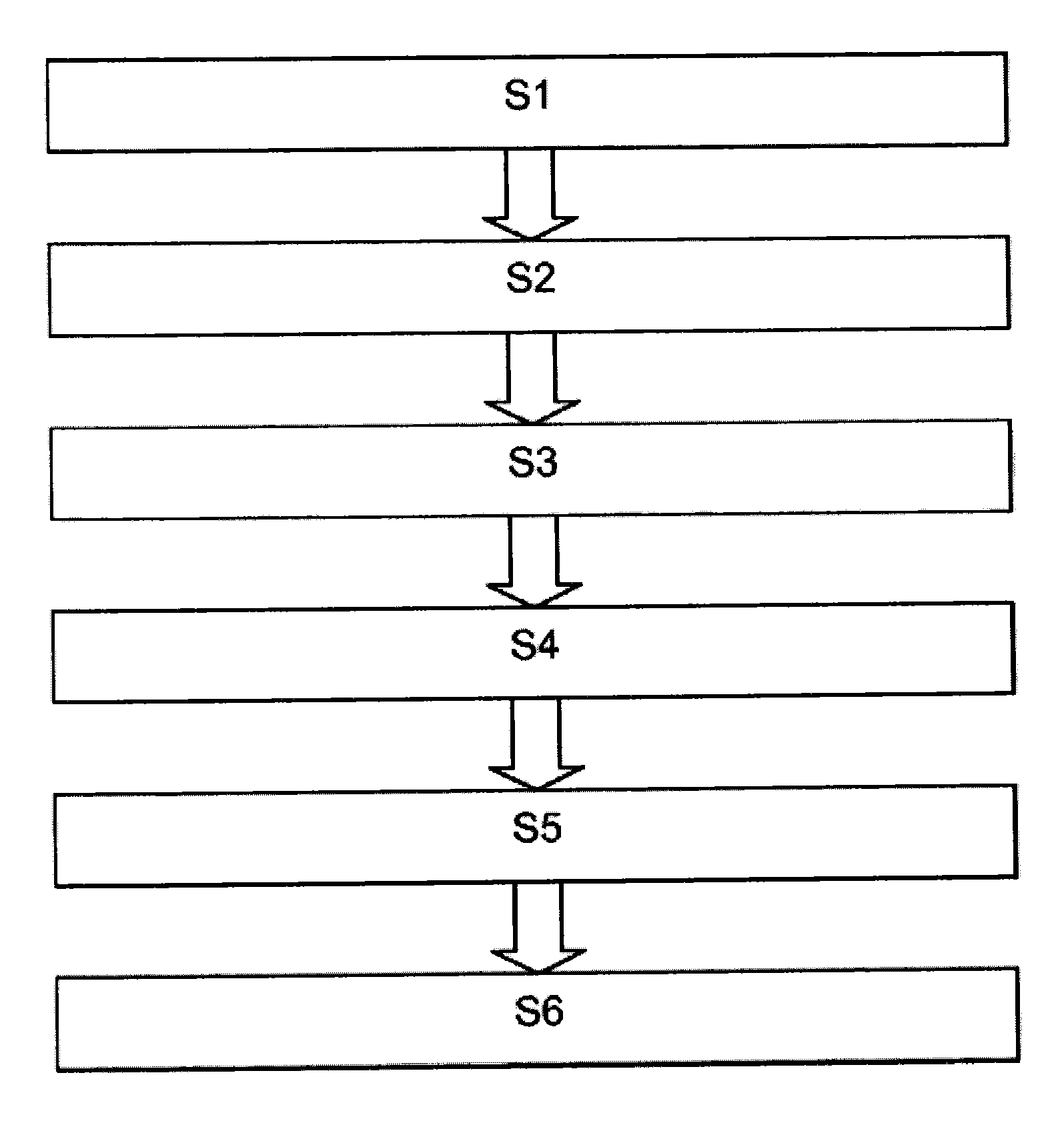

A method of determining the position of a detector disposed under the sea, comprising the following steps: emit N waves from N emission points, record the propagation time of said wave between each emission point and the detector; determine the P time intervals Ti, with P≧1 such that, for each time interval Ti, there exist Mi emission points, Mi≧3 for 1≦i≦P, whose propagation times lie in the time interval, determine for each time interval Ti of the circle which passes closest to the Mi points whose propagation time lies in said time interval, and then determine the position of the detector as being the barycenter of the P centers of the circles determined previously.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2011 Application Filing Year
- G01L Class
- 708 Applications Filed
- 559 Patents Issued To-Date
- 78.96 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- G01L Class
- 0 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Feb 23, 2028 |
