Swivel device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 23, 2016
Grant Date -
Oct 30, 2014
app pub date -
Jan 8, 2013
filing date -
Jan 11, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

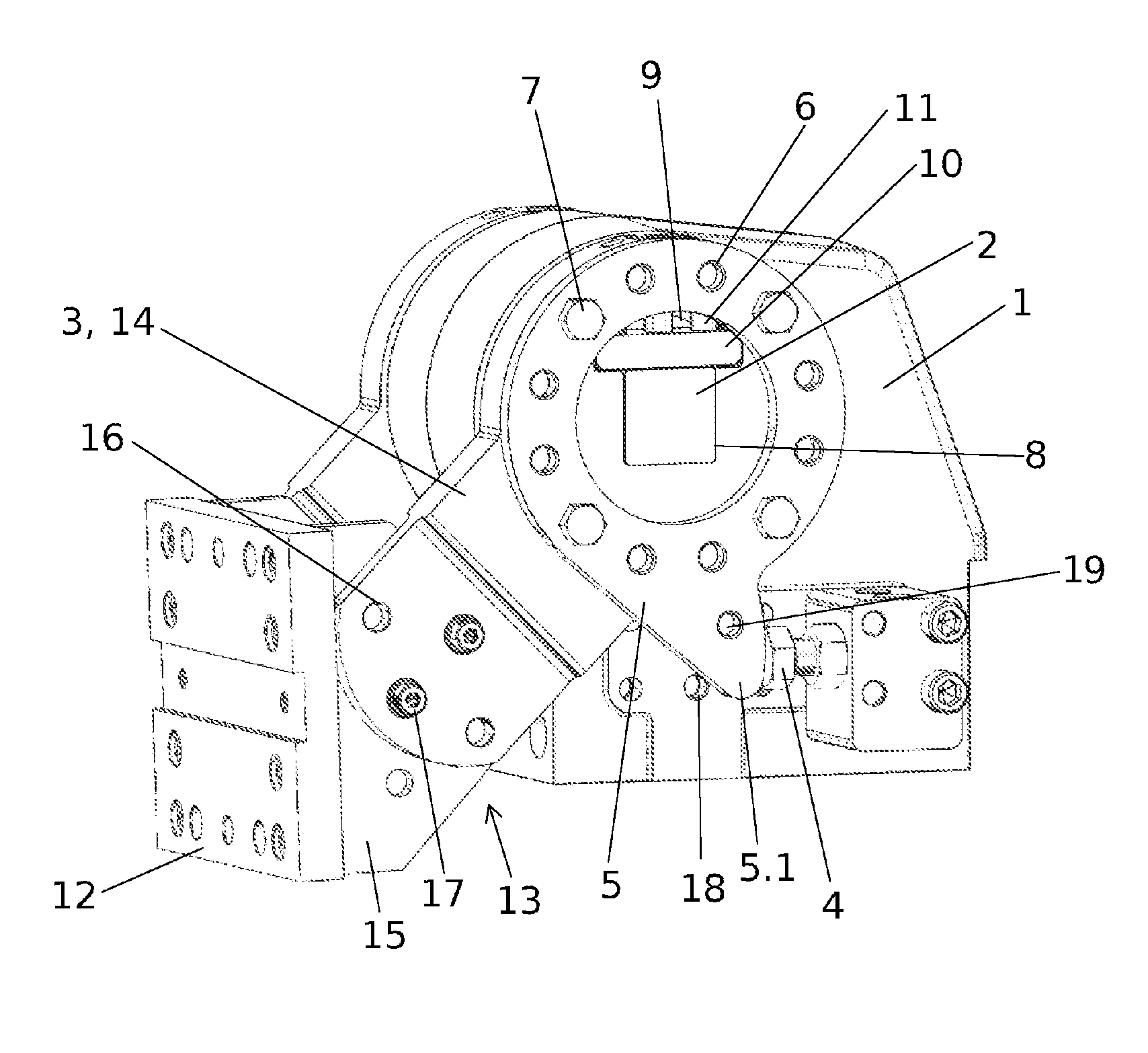

A swivel device has a swivel shaft (2) rotatably mounted in a housing. A portion of the swivel shaft (2) projects from the housing (1). A swivel lever (3) is fixably mounted on the shaft (2) and is swivelable relative to the housing (1). The swivel lever (3) is arranged outside the housing (1). A first part (4) of a stop is arranged externally on the housing (1). A second part (5) of the stop is connected with the swivel lever (3). The first (4) and second (5) parts of the stop form a rotational movement stop for the swivel lever (3). The second part (5) of the stop is detachable from the swivel lever (3) and is reattachable to the swivel lever (3) in various positions on the swivel lever (3).
First Claim
Other Claims data not available
Family
International Classification(s)
- 2013 Application Filing Year
- B23Q Class
- 473 Applications Filed
- 407 Patents Issued To-Date
- 86.05 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- B23Q Class
- 20.59 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Feb 23, 2028 |
