Roofing grommet forming a seal between a roof-mounted structure and a roof
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 23, 2016
Grant Date -
May 19, 2016
app pub date -
Jan 21, 2016
filing date -
Jan 25, 2010
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

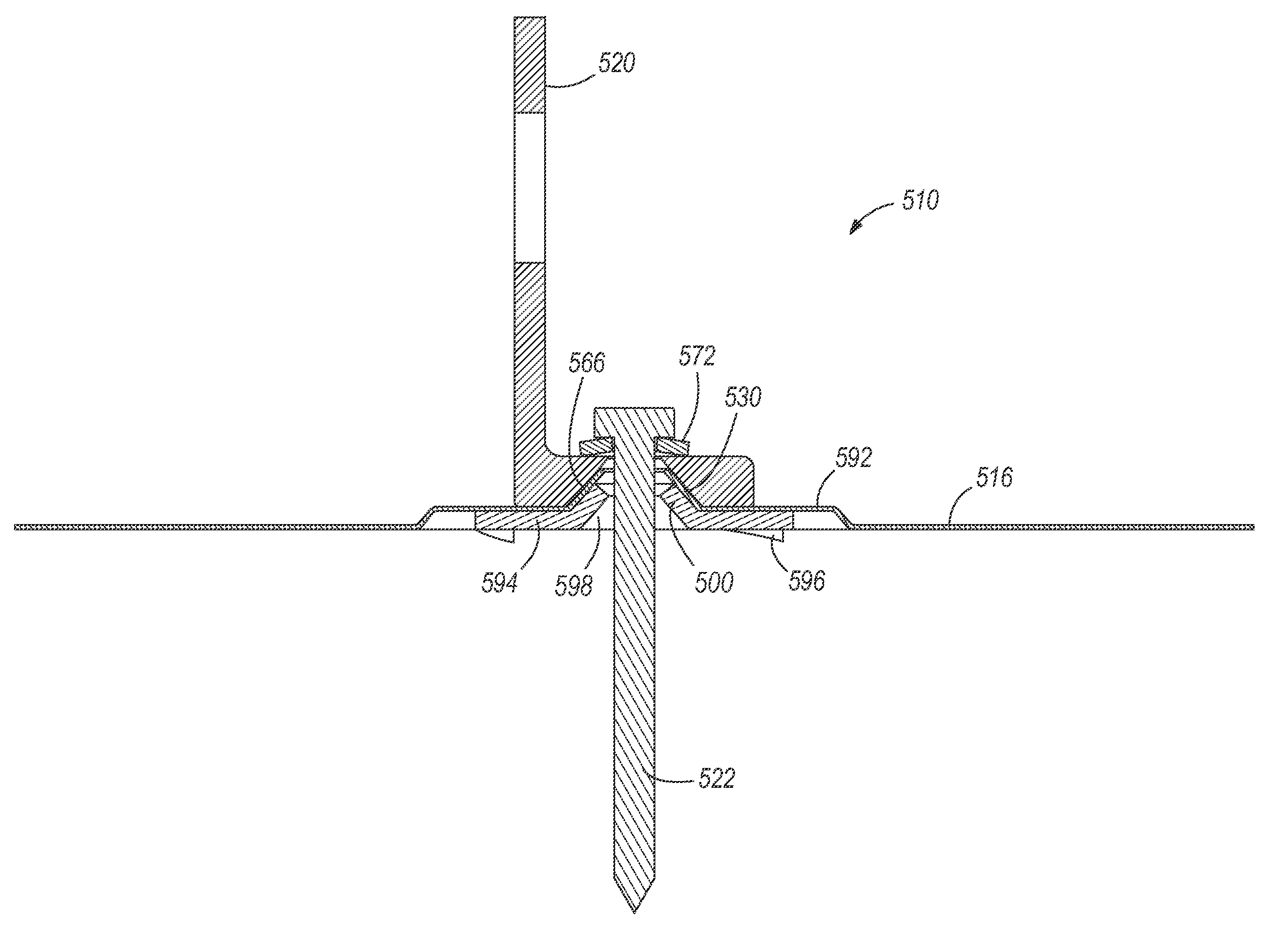

A roof mount assembly mounts a structure to a roof having a rafter and a substrate supported by the rafter. The roof mount assembly includes a piece of flashing positioned on the substrate. The flashing includes a first surface, a second surface opposite the first surface and an aperture extending through the flashing. A fastener extends through the flashing aperture. A bracket is connected to the flashing via the fastener, and the bracket is sized to support at least one roof-mounted structure on the roof. A seal is positioned between the flashing aperture and the fastener. The seal is sized to form a water-tight seal with the aperture to inhibit flow of fluid through the aperture. The seal includes a first portion and a second portion, in which the first portion is positioned to abut the flashing first surface and the second portion is positioned to extend through the aperture.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- F24J Class
- 248 Applications Filed
- 106 Patents Issued To-Date
- 42.75 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 10 Citation Count
- F24J Class
- 18.97 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Feb 23, 2028 |
