Adjustable and flexible damper structure for instrument clusters
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 23, 2016
Grant Date -
Nov 12, 2015
app pub date -
May 9, 2014
filing date -
May 9, 2014
priority date (Note) -
Withdrawn
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

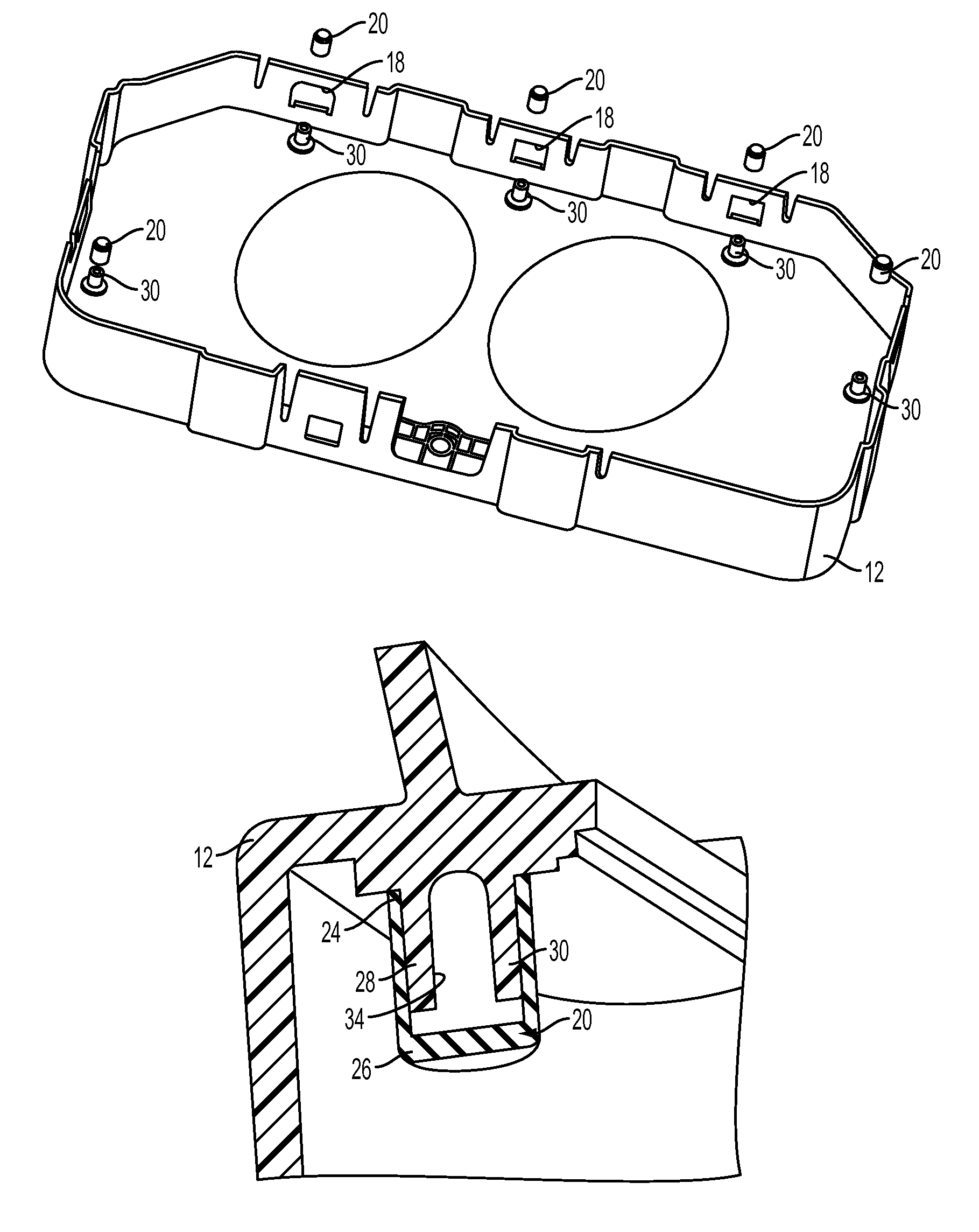

Damping structure provides damping between a first component and a second component of an instrument cluster of a vehicle. The damping structure includes a resilient and flexible damper having a body with first and second opposing ends. The first end is closed and the second end is open to communicate with a generally cylindrical recess in the body. A holding member is coupled to and extends from the first component. The holding member includes a body having a recess therein. At least a portion of the body of the holding member is received in the recess of the damper, with the closed end of the damper covering the recess in the body of the holding member so as to trap air therein. When the first component is coupled to the second component, the closed end of the damper engages the second component so that the damper is under compression loading.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date | Type | Sub-Type |
|---|
International Classification(s)
- 2014 Application Filing Year
- B62D Class
- 2117 Applications Filed
- 1852 Patents Issued To-Date
- 87.49 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B62D Class
- 0 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Feb 23, 2028 |
