Crimping device for securing a ferrule onto safety cable
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 23, 2016
Issued Date -
N/A
app pub date -
Jun 18, 2014
filing date -
Jun 18, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|

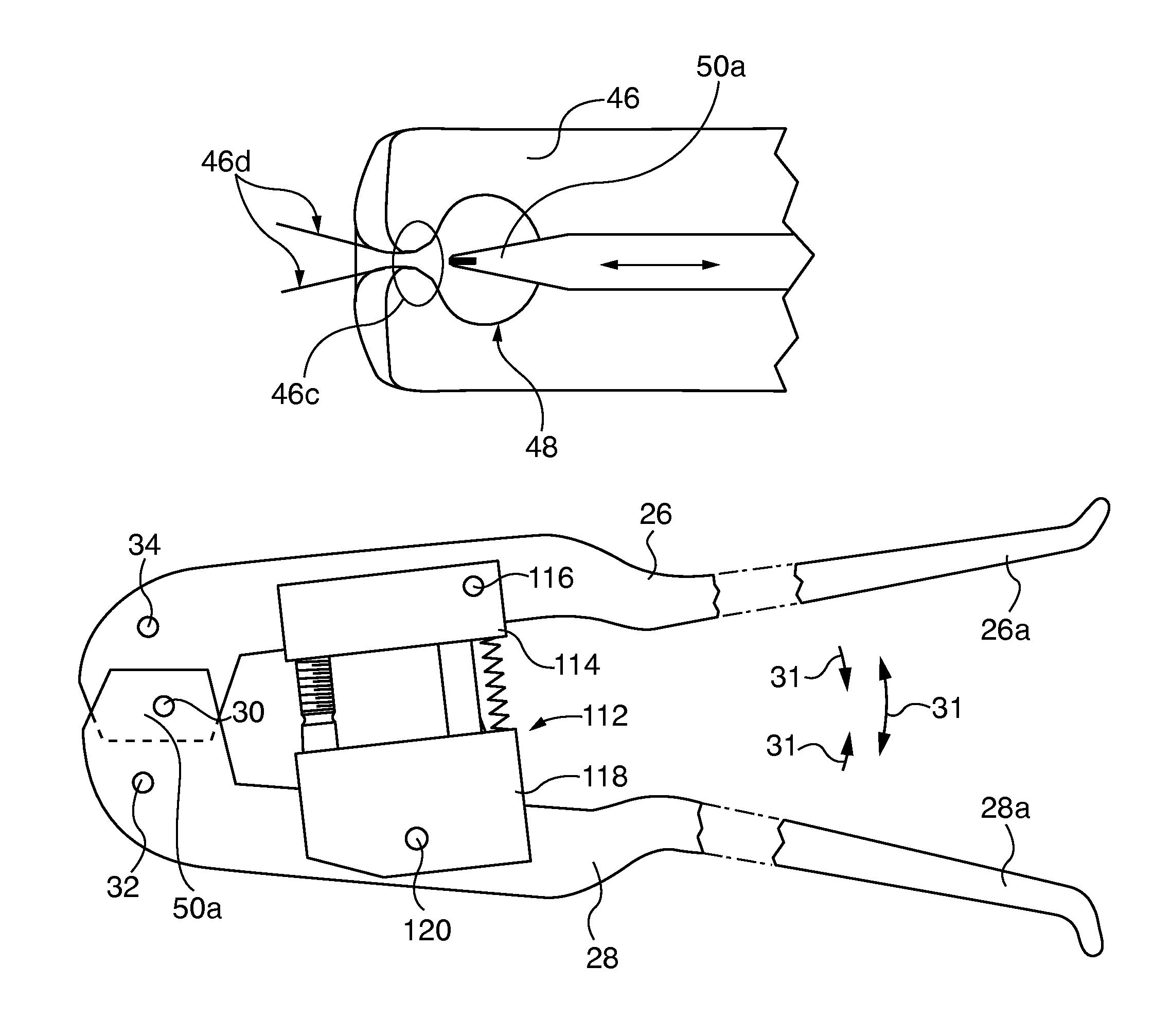

Abstract
An adaptable device for tensioning safety cable to a predetermined tension limit, crimping a ferule onto the cable, cutting the excess cable and ejecting the device from the crimped ferrule-cable assembly. The device compromises a tool body, a cable tensioner and an elongated nose. The cable tensioner comprises a handle for applying tension to a cable inserted into the tension gripper mechanism and a one-way clutch to prohibit movement in a direction which would unwind the cable or lessen the tension applied. The elongated nose has a ferrule receiving aperture for receiving a ferrule and passing the safety cable there through. A plunger is reciprocally operative in the nose piece to crimp the ferrule onto the cable, cut the excess cable and eject the device from the crimped ferrule-cable assembly. The Plunger is actuated either manually or by means of an attached power assisted tool. The elongated nose piece is removable so it can be interfaced with different tool bodies.
First Claim
Other Claims data not available
Family
- No Family data available.
International Classification(s)
- 2014 Application Filing Year
- B25B Class
- 687 Applications Filed
- 599 Patents Issued To-Date
- 87.20 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B25B Class
- 0 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Feb 23, 2028 |
