Methods for forming an orthogonal end on a helical stent
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 23, 2016
Issued Date -
N/A
app pub date -
May 12, 2015
filing date -
Sep 18, 2009
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

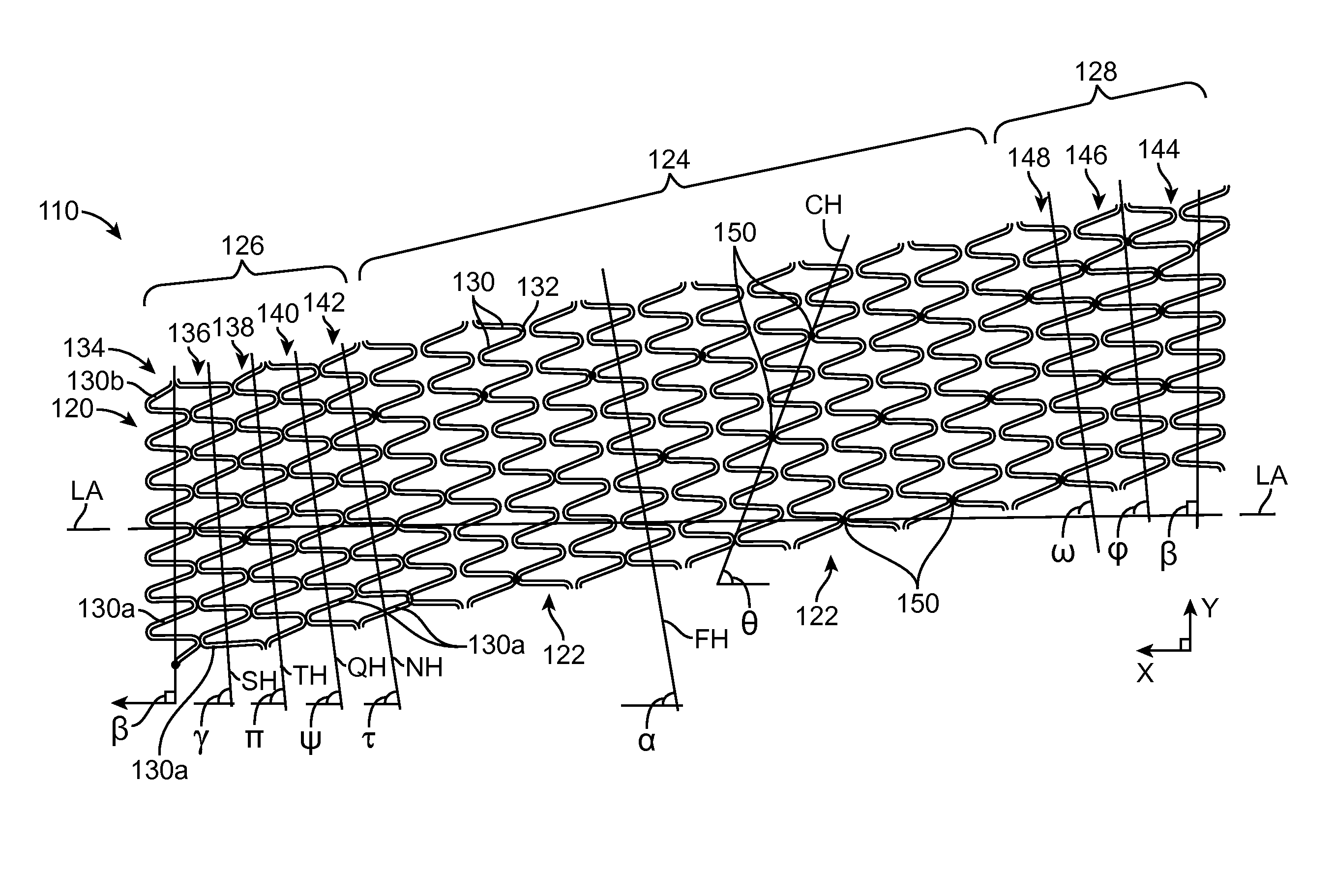

A method of manufacturing a stent includes forming a wave form having a plurality of struts and a plurality of crowns. Each crown connects two adjacent struts. The wave form has a central portion and two end portions located on opposite sides the central portion. Some of the struts located in the end portions have lengths longer and/or shorter than an average length of all of the struts of the wave form. The method includes wrapping the wave form about a longitudinal axis to define a plurality of turns so that an end turn is oriented at an angle relative to the longitudinal axis, a second turn is at a first pitch angle that is less than the angle that the end turn is disposed relative to the longitudinal axis, a third turn is at a second pitch angle that is less than the first pitch angle, and a fourth turn is at a third pitch angle that is less than the second pitch angle.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- A61F Class
- 5839 Applications Filed
- 4516 Patents Issued To-Date
- 77.35 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- A61F Class
- 11.19 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Feb 23, 2028 |
