Arrow shaft pressing device for crossbow
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 16, 2016
Grant Date -
N/A
app pub date -
Aug 6, 2015
filing date -
Aug 6, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

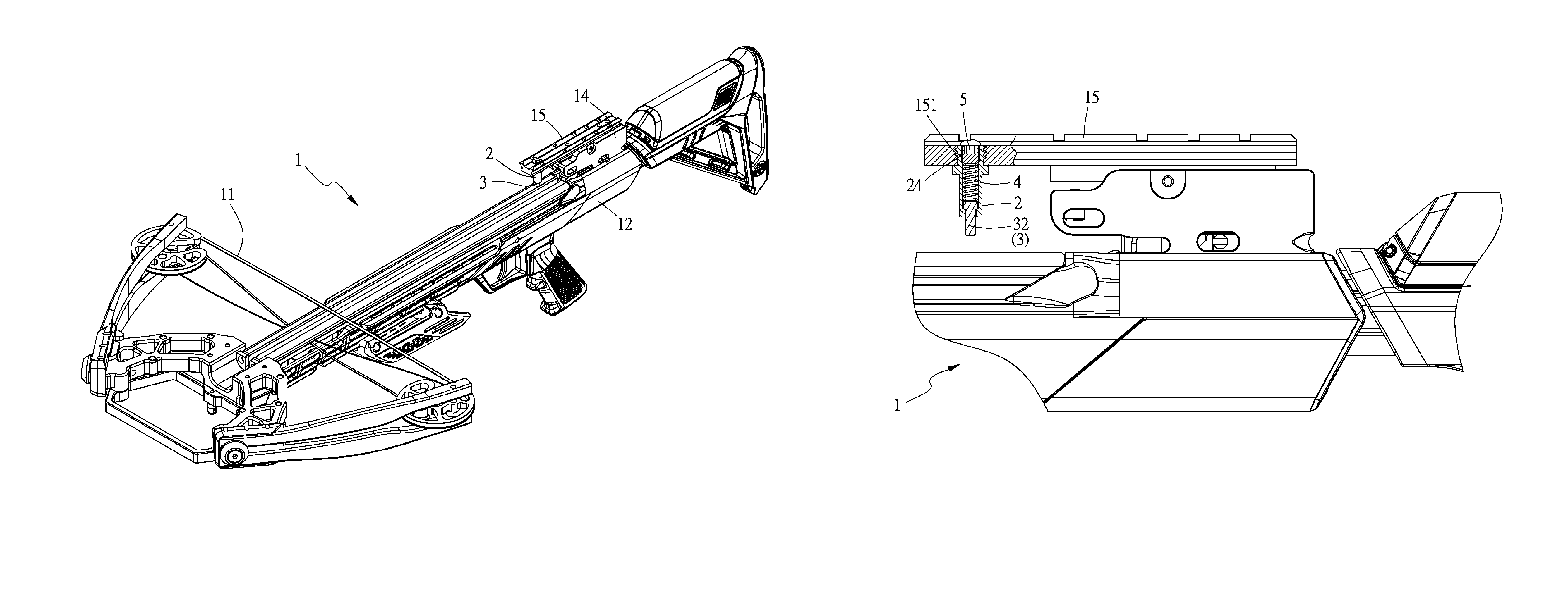

An arrow shaft pressing device for a crossbow includes a sleeve connected to one end of the aiming device and has a passage with an aperture defined through the lower end of the sleeve. A shoulder is formed at the connection portion between the passage and the aperture. A pressing member has a flange and a shank extending from the underside of the flange. The pressing member is located in the passage of the sleeve and the distal end of the shank extends beyond the aperture. A restriction member is connected to the top end of the sleeve. A resilient member is biased between the flange of the pressing member and the restriction member. The distal end of the shank of the pressing member resiliently presses the arrow shaft.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- F41B Class
- 196 Applications Filed
- 181 Patents Issued To-Date
- 92.35 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 20 Citation Count
- F41B Class
- 78.71 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Feb 16, 2028 |
