Power drill with adjustable torque
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 16, 2016
Grant Date -
May 30, 2013
app pub date -
Nov 30, 2012
filing date -
Nov 30, 2011
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

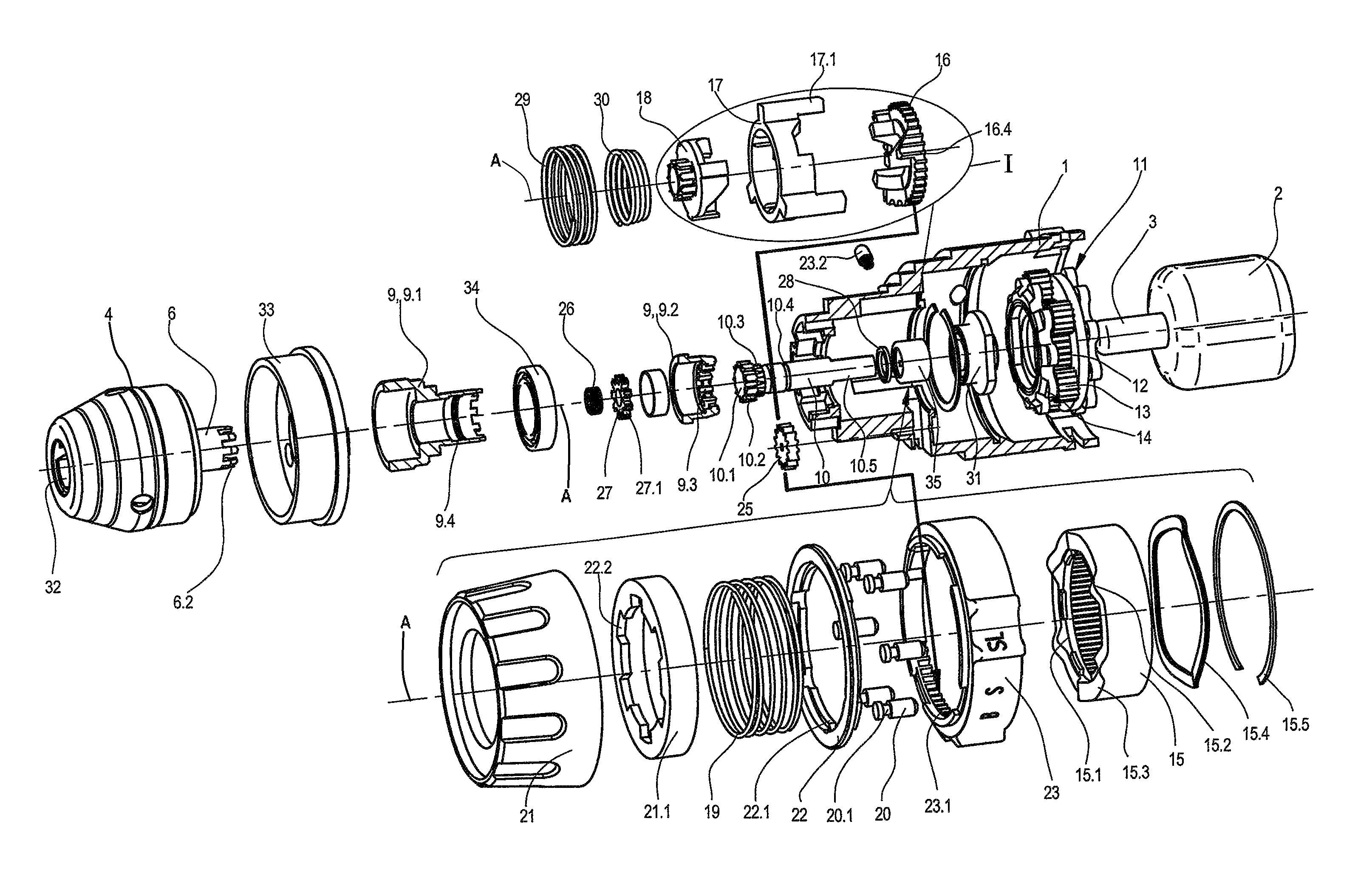

A power drill has a housing holding a planetary gear transmission and a motor. A drive stem rotatable in the housing about the axis is rotationally coupled to the planet carrier, and a chuck body is rotatable on the housing. A driver axially bearing on the jaws is axially shiftable to position jaws in the chuck, and a sleeve threaded to the driver is rotatable to position the jaws in the chuck body. The drive stem can be coupled either to the chuck body for rotating a tool held by the jaws in a screw or drill mode or to the sleeve in a tighten/loosen mode for tool exchange. A first spring bears axially inward against a front face of the transmission ring gear with an adjustable axially inwardly directed force, and a second spring bears axially against a rear face of the ring gear.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2012 Application Filing Year
- B23B Class
- 466 Applications Filed
- 391 Patents Issued To-Date
- 83.91 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 8 Citation Count
- B23B Class
- 20.62 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Feb 16, 2028 |
