Device for conveying coating powder from a powder container
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 16, 2016
Grant Date -
Jun 4, 2015
app pub date -
May 23, 2013
filing date -
Jun 20, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

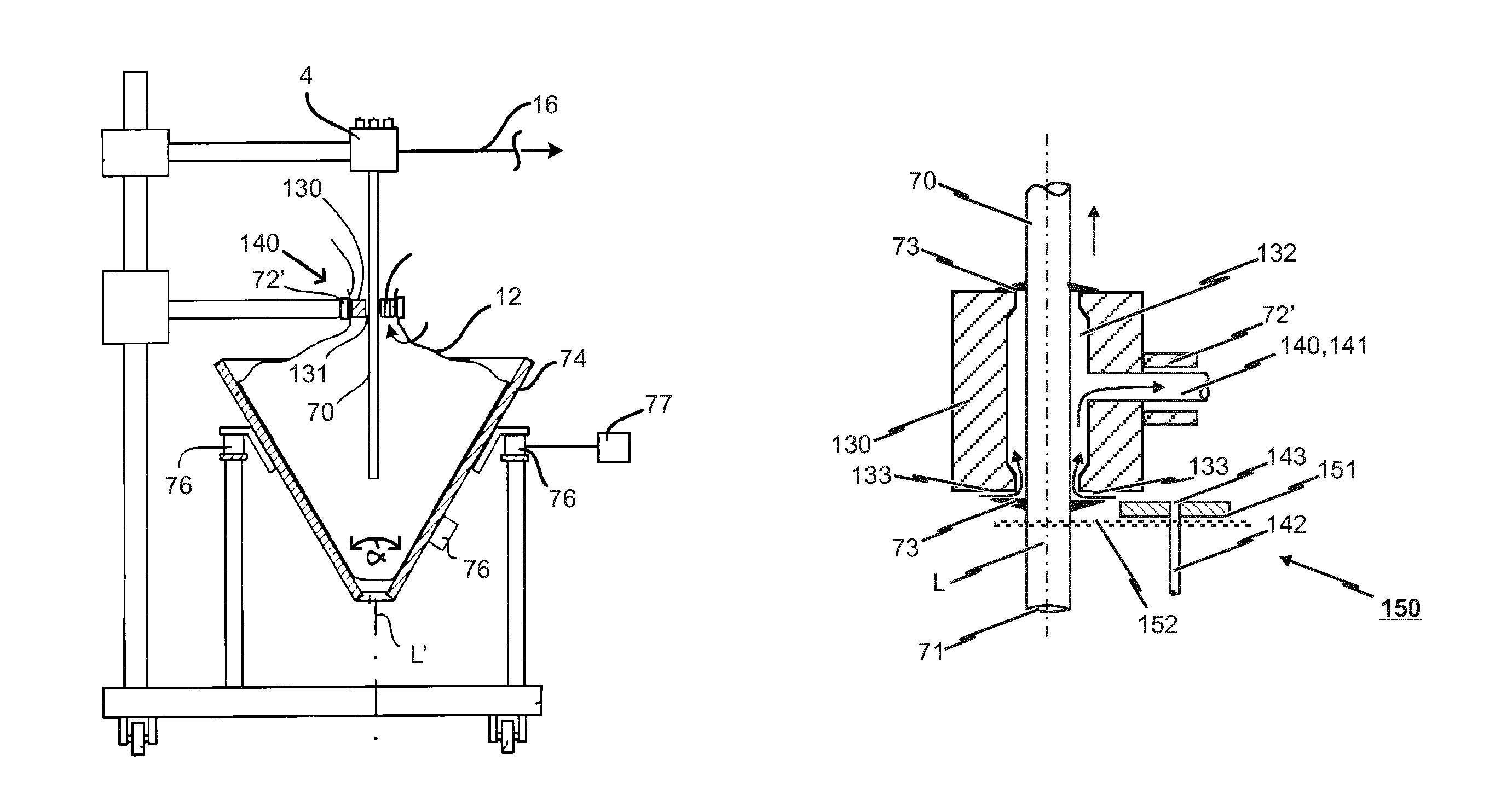

The invention relates to a device for conveying coating powder from a powder container. The powder conveying device has a powder conveying pipe having a powder inlet, by means of which coating powder can be fed from a powder container to the powder conveying pipe, in particular by means of suction. Furthermore, a powder conveying pipe retainer is provided in order to retain the powder conveying pipe. The powder conveying pipe can be preferably optionally moved in relation to the powder conveying pipe retainer in the longitudinal direction of the powder conveying pipe, wherein in order to clean the powder conveying pipe, the powder inlet of the powder conveying pipe can be closed and a compressed air line can be connected to the powder pipe.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2013 Application Filing Year
- B05C Class
- 507 Applications Filed
- 456 Patents Issued To-Date
- 89.95 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B05C Class
- 0 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Feb 16, 2028 |
