Device for collecting and separating aqueous and/or oily liquids and cryogenic liquid
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 16, 2016
Grant Date -
Sep 18, 2014
app pub date -
Oct 1, 2012
filing date -
Oct 20, 2011
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

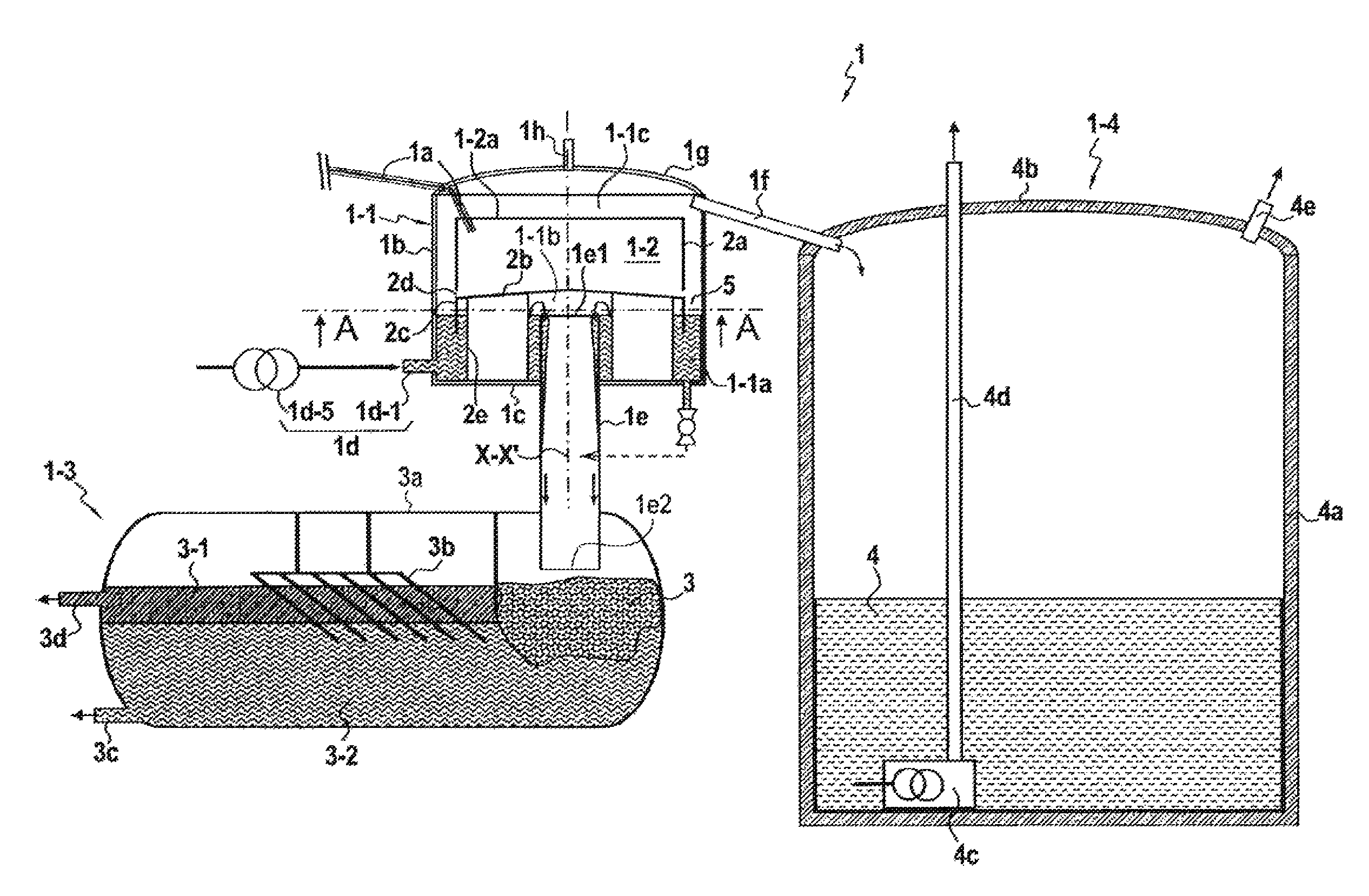

A device for collecting and separating liquids, preferably liquefied gas, the device having a first container having a bottom wall with a first tubular discharge pipe passing through it and opening out into a first storage tank. A second container is contained inside the first container. The second container has a bottom wall above the level of the first discharge pipe(s), and a top side wall including at least one drain orifice in its base communicating with a lateral passage, and a bottom side wall extending to below the level of the top end of the first discharge pipe, and a lateral passage between the side walls of the two containers. A liquid collector duct opens into the second container, and a second discharge pipe extends from above the second container and opens into a second liquefied gas storage tank.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2012 Application Filing Year
- F25J Class
- 105 Applications Filed
- 69 Patents Issued To-Date
- 65.72 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 4 Citation Count
- F25J Class
- 25.53 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Feb 16, 2028 |
