Opening and closing device, and electronic device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 9, 2016
Grant Date -
Feb 11, 2016
app pub date -
Aug 3, 2015
filing date -
Aug 7, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

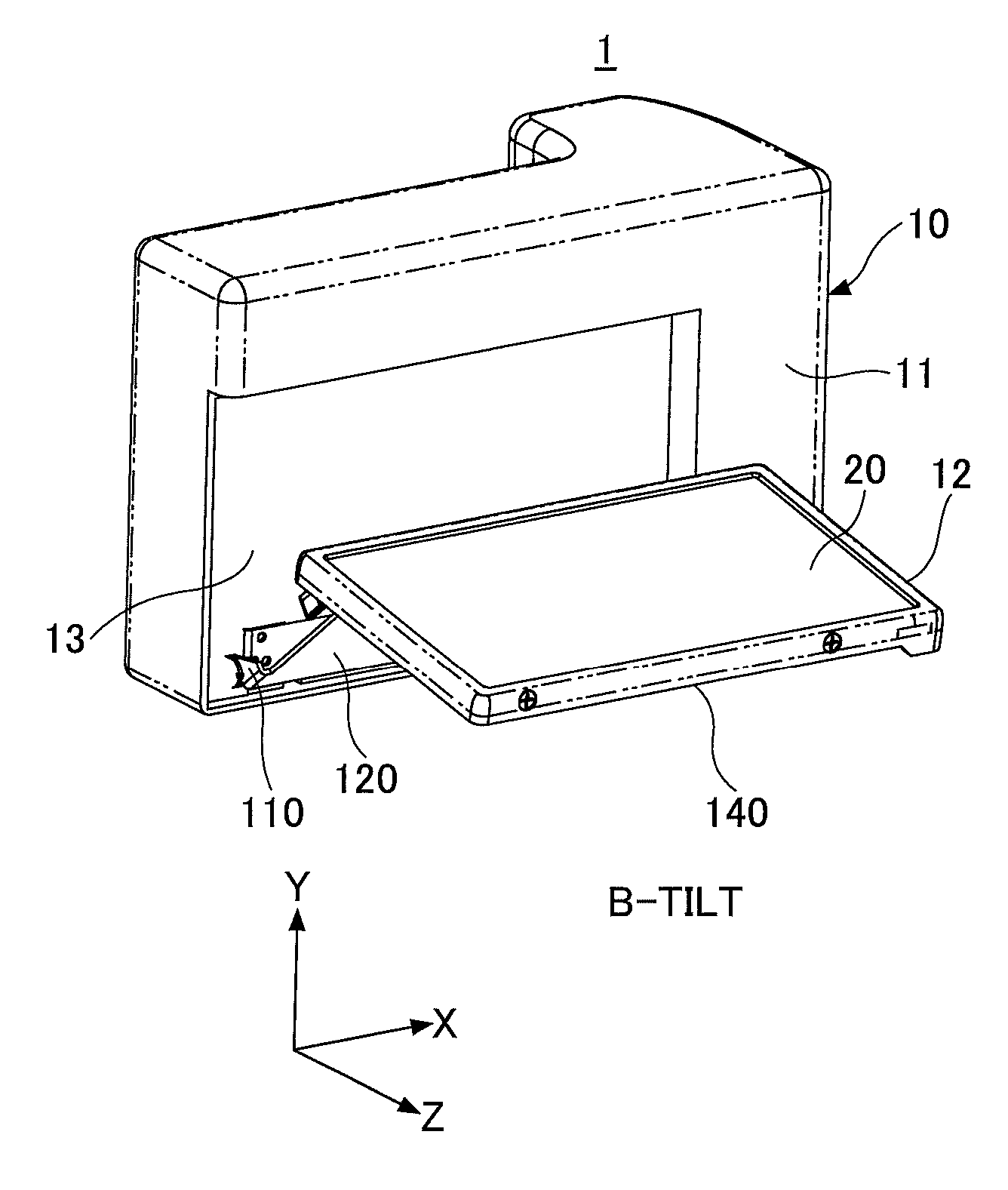

An opening and closing device includes a base plate; a first plate that is pivotably attached to the base plate; a first shaft that is provided in the first plate; a second plate that is pivotably and slidably attached to the first plate; a second shaft that is provided in the second plate; a third plate that is pivotably attached to the second plate; a detachable system for locking the third plate and the first plate when the first plate, the second plate, and the third plate are superposed; a bias system for biasing the second plate to the first plate; and a restriction system for allowing the second plate to slide along the first shaft when the second plate is superposed to the first plate, and for restricting the second plate from sliding when the second plate is rotated relative to the first plate.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- H04N Class
- 17427 Applications Filed
- 14242 Patents Issued To-Date
- 81.73 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 4 Citation Count
- H04N Class
- 14.12 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Feb 9, 2028 |
