Drum and drum-set tuner
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 9, 2016
Grant Date -
Feb 4, 2016
app pub date -
Aug 7, 2015
filing date -
Jan 22, 2010
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

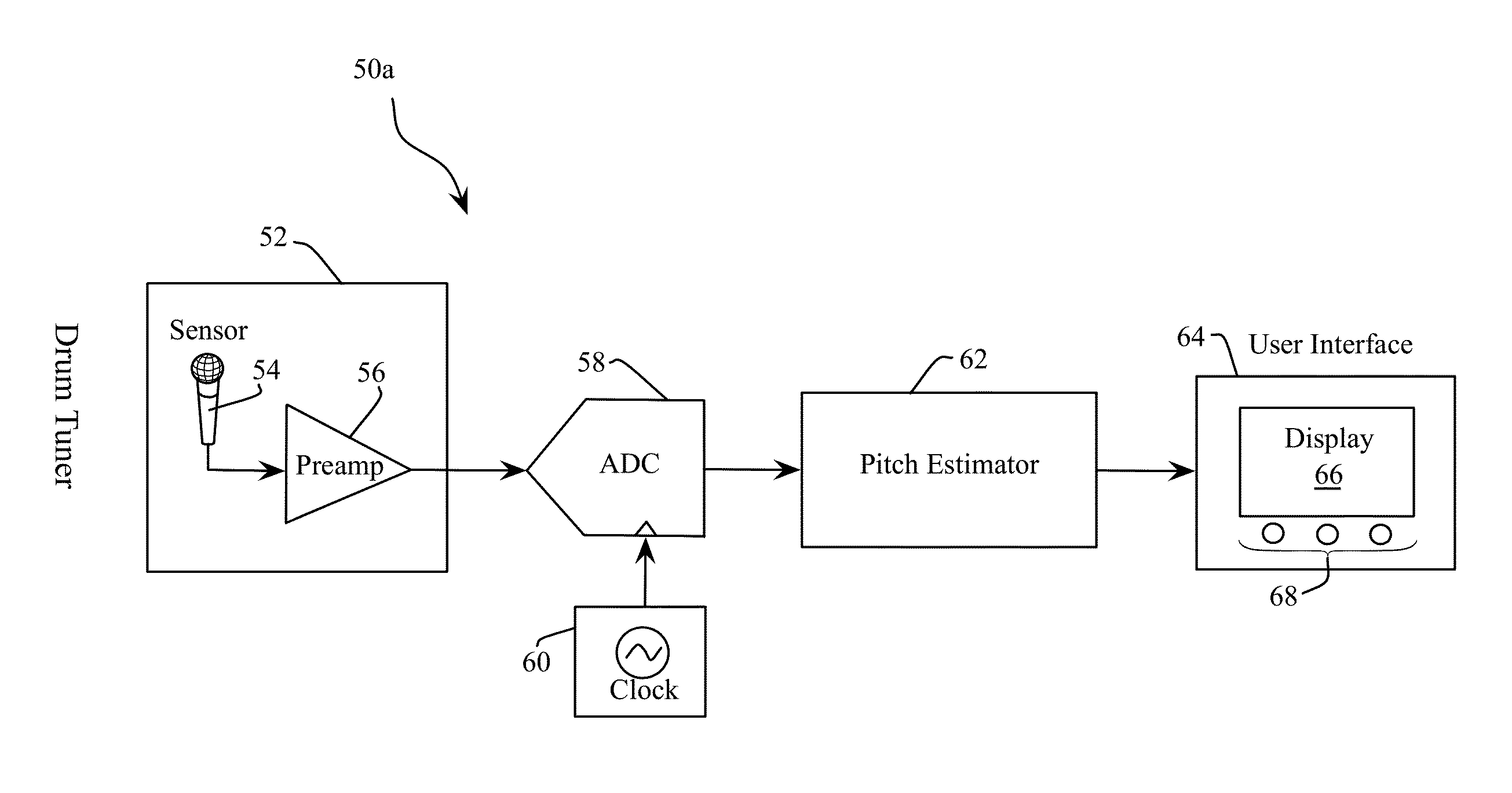

A resonance tuner receives and digitizes an analog signal in response to a resonance of a structure thereby creating a plurality of time samples. A series of the time samples are buffered upon burst detection. A power spectrum is estimated by computing a Time-To-Frequency-Transform of the series of time samples and a magnitude of each of the resulting frequency samples is squared. At least one subset associated with at least one spectral peak is selected from the frequency samples. Each spectral peak has at least one sample with a sufficient magnitude and being spectrally adjacent to any other sample in another spectral peak by less than a threshold. A fundamental spectral peak is determined in a fundamental subset including a spectral peak with a sample at the lowest frequency greater than zero. The fundamental spectral peak has the sample with the largest magnitude within the fundamental subset.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- G10G Class
- 62 Applications Filed
- 45 Patents Issued To-Date
- 72.59 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- G10G Class
- 0 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Feb 9, 2028 |
