Cushioning-material surface layer and hot-press cushioning material
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 9, 2016
Grant Date -
May 1, 2014
app pub date -
Jun 7, 2011
filing date -
Jun 7, 2011
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

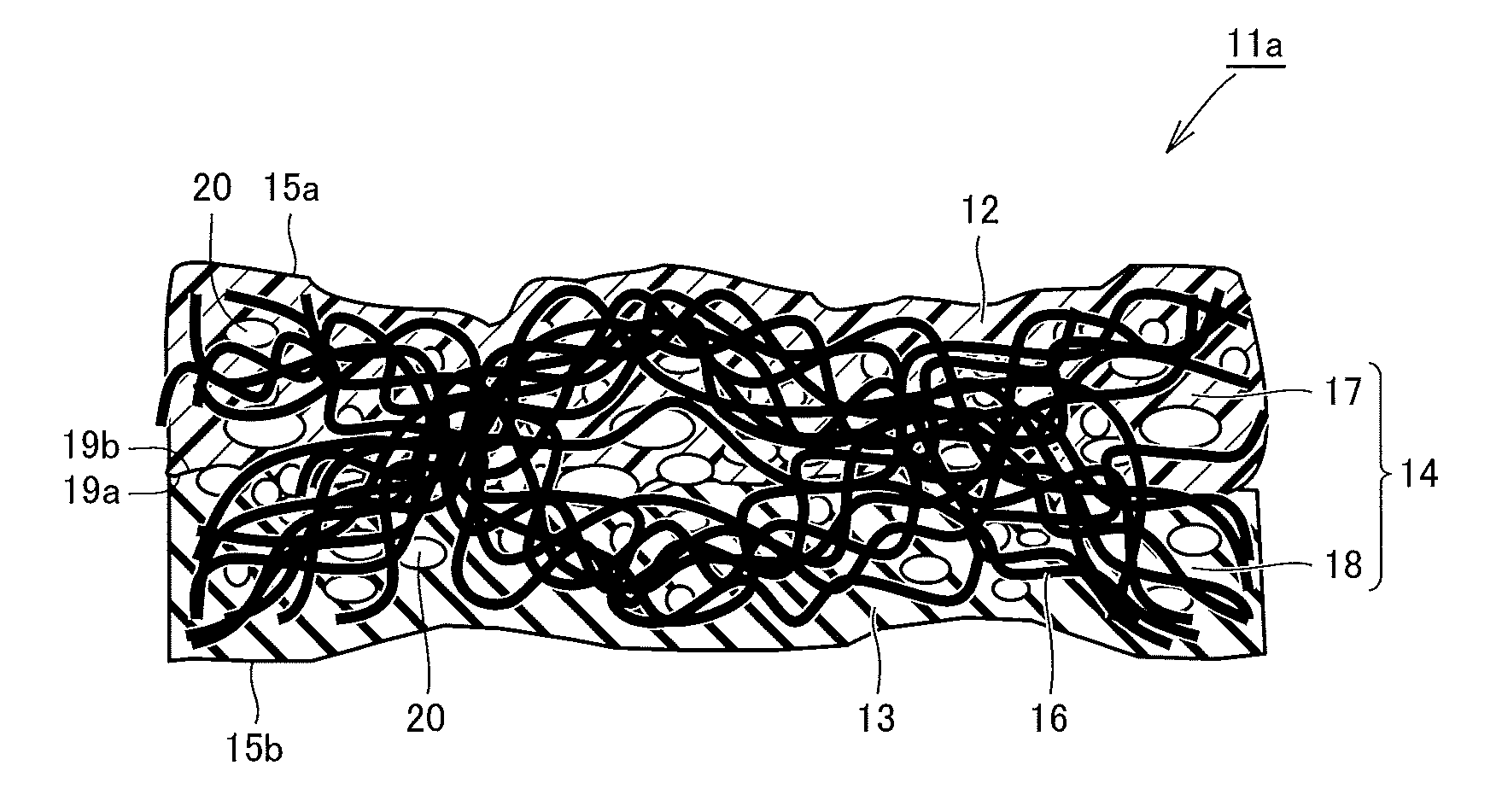

The cushioning-material surface layer 11a includes a resin layer 12 disposed on one side of the surface layer 11a to cover the side thereof, a rubber layer 13 disposed on the other side of the surface layer 11a to cover the side thereof, and a woven fabric layer 14 disposed between the resin layer 12 and rubber layer 13 and including bulked yarns for at least one of warp and weft. The woven fabric layer 14 includes a woven fabric-resin composite layer 17 disposed on the resin layer 12 side and formed by impregnating part of the woven fabric with resin that forms the resin layer 12, and a woven fabric-rubber composite layer 18 disposed on the rubber layer 13 side and formed by impregnating part of the woven fabric with rubber that forms the rubber layer 13. The woven fabric layer 14 includes interstices 20 therein.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2011 Application Filing Year
- B29C Class
- 3399 Applications Filed
- 2313 Patents Issued To-Date
- 68.05 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B29C Class
- 0 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Feb 9, 2028 |
